Wastewater/Activity/PacpInspection/1.0May 19, 2016, 03:29 PM
01 0374_01 0373_5192016_093524.mp4
- Date
- 05/19/2016
- W/O
- 0557499
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00208
- PipeID
- P00848
- Time
- 8:29 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0139
- Sewer Name
- 01 HOLMES-WILLOWBROOK TRUNK
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 16
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160519AM_HOLMES_WILLOWBROOK_TRUNK
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 01 0374
- Downstream MH
- 01 0373
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

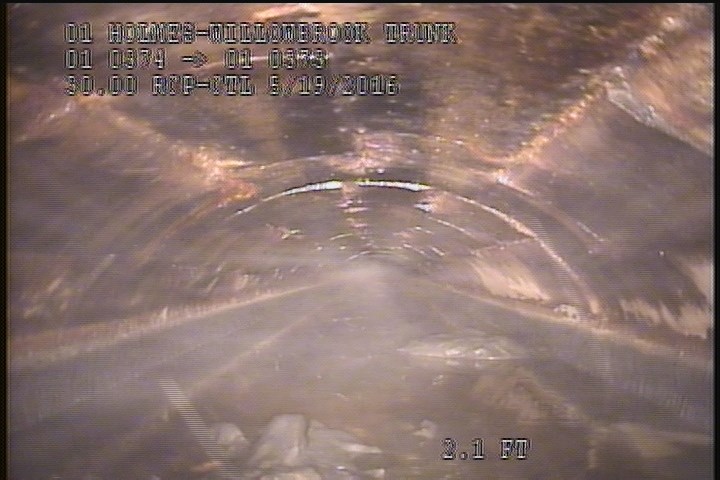

0 ft. - Water Level, 50 %of cross sectional area

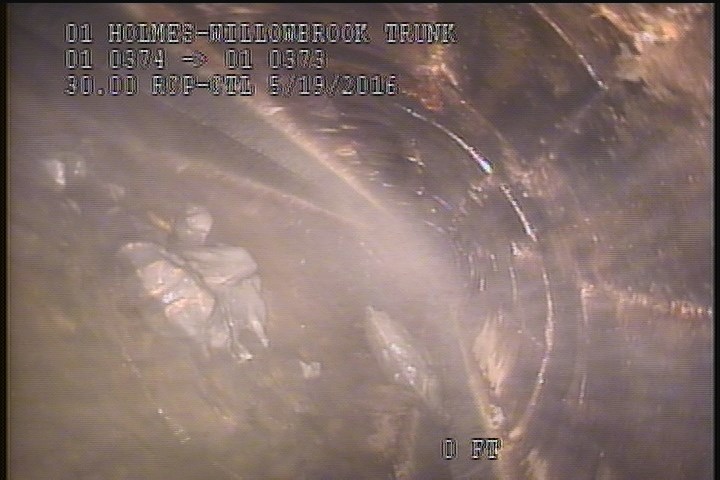

2 ft. - General Observation - MODERATE GREASE/DEBRIS THROUGHOUT THE REACH
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK |
| 2 | MGO | MODERATE GREASE/DEBRIS THROUGHOUT THE REACH |
| 2 | SSS | — |
| 0 | AMH | 9:34 AM |
| 2.1 | MSA | STAGNANT WATER |
| 0 | MWL | — |
| 0 | MGO | ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK |
Properties (6)
- additional_info
- RFIR INSPECTION ONLY, JUST GOING TO HANG THE CAMERA IN CENTER OF THE MH. AND ZOOM IN D/S
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-05-19T08:29:58-07:00
- documentation
- MIRANDA, SHADLER, FRANKLIN
- is_lateral_inspection
- false
