Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 17, 2016, 07:33 AM

  • 01 0254_01 0253_5172016_011103.mp4

Date
05/17/2016
W/O
0573886
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00218
PipeID
P01299
Time
12:33 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Heavy Cleaning
Media Label
H0135R
Sewer Name
01 SOUTH PARK AVENUE TRUNK
City
SOUTH GATE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Maintenance Related
Project
20160517MDM_SOUTH_PARK_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
01 0254
Downstream MH
01 0253
Dir. of Survey
Downstream
Length Surveyed
269.5 ft.
Total Length
269.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2311
O&M Rating
7
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 01 0254 to 01 0253
MH: 01 0254MH: 01 0253downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:05AM0 ft. MWL - Water Level, 0 %of cross sectional area0 ft. MGO - General Observation - ROOT EVALUATION ONLY36.8 ft. RFJ - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YESR - 1%84 ft. MGO - General Observation - 18" VCP111.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped154.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open181.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open195.3 ft. MWL - Water Level, 5 %of cross sectional area - STANDING WATER196.6 ft. MGP - General Photograph205.4 ft. RTJ - Roots Tap Joint, from 09 to 10 o'clock, 5 %, within 8 inches of joint: YESR209 ft. RTJ - Roots Tap Joint, at 10 o'clock, 2 %, within 8 inches of joint: YESR211.9 ft. RTJ - Roots Tap Joint, at 10 o'clock, 2 %, within 8 inches of joint: YESR247.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open268.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open269.5 ft. AMH - Downstream Manhole, Survey Ends - 1:30AM

Observation photos (3)

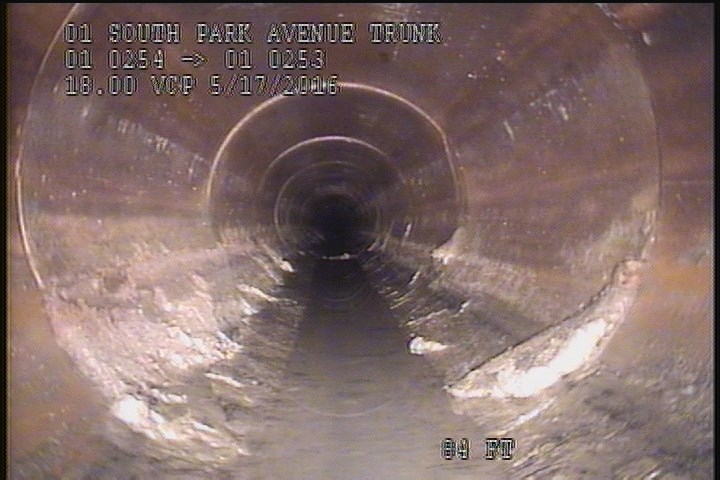

  • General Observation - 18" VCP

    84 ft. - General Observation - 18" VCP

  • General Photograph

    196.6 ft. - General Photograph

  • Roots Tap Joint, from 09 to 10 o'clock, 5 %, within 8 inches of joint: YESR

    205.4 ft. - Roots Tap Joint, from 09 to 10 o'clock, 5 %, within 8 inches of joint: YESR

All inspections of P01299Work order 0573886

Observations (18)

DistanceCodeObservation
84MGO18" VCP
154.1TFOpen
181.6TFOpen
111.5TFCCapped
269.5AMH1:30AM
0MGOConn. @ Mh, 3 O' Clock. OPEN
196.6MGP—
0MWM—
247.6TFOpen
268.6TFOpen
195.3MWLSTANDING WATER
36.8RFJ1%
205.4RTJ—
0AMH1:05AM
0MWL—
209RTJ—
211.9RTJ—
0MGOROOT EVALUATION ONLY

Properties (5)

additional_info
ROOT EVALUATION ONLY
customer
LACSD
datetime
2016-05-17T00:33:57-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
