Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 10, 2016, 08:17 AM

  • 01 0017_01 0016_5102016_054640.mp4

Date
05/10/2016
W/O
0563420
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00209
PipeID
P00682
Time
1:17 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0125
Sewer Name
01 HOOPER AVENUE-COMPTON CREEK TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Capital Improvement Program Assesment
Project
201605MDM_HOOPER_AVENUE_COMPTON_CREEK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
27 in.
Upstream MH
01 0017
Downstream MH
01 0016
Dir. of Survey
Downstream
Length Surveyed
428.6 ft.
Total Length
428.6 ft.
Structural Index
3
Structural Quick
3B28
Structural Rating
55
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
55
Pipe schematic from manhole 01 0017 to 01 0016
MH: 01 0017MH: 01 0016downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 5:35AM0 ft. MWL - Water Level, 10 %of cross sectional area8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT8 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SLIGHT9.8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES,10.7 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - HAIRLINE11.4 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - SLIGHT11.4 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, - H11.4 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - HAIRLINE14.4 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H14.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H17.1 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - H20.2 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - SLIGHT23 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS23 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS23 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES,23 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish23 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS23 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Finish23 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS29.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, - SLIGHT32.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, - HAIRLINE46.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H117.7 ft. MGO - General Observation - 27" VCP159.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT162.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish212.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H215.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish260.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active333.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open386.6 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open428 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 20% SLIGHT428 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 15% HAIRLINE428 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 20% SLIGHT428 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 15% HAIRLINE428.6 ft. AMH - Downstream Manhole, Survey Ends - 6:20AM

Observation photos (3)

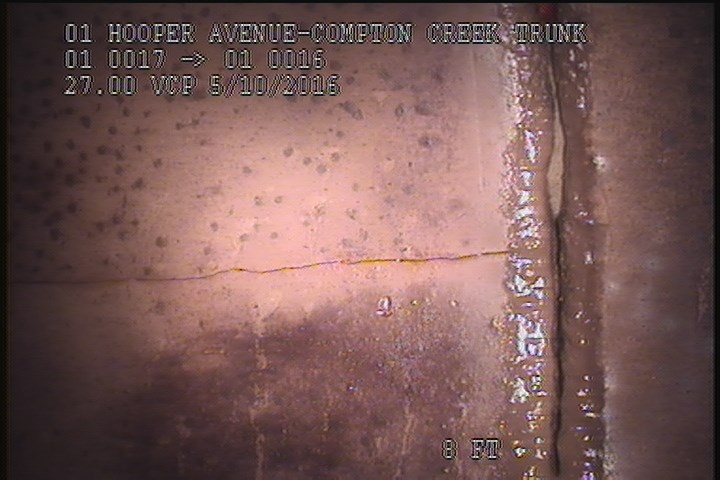

  • Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    8 ft. - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT

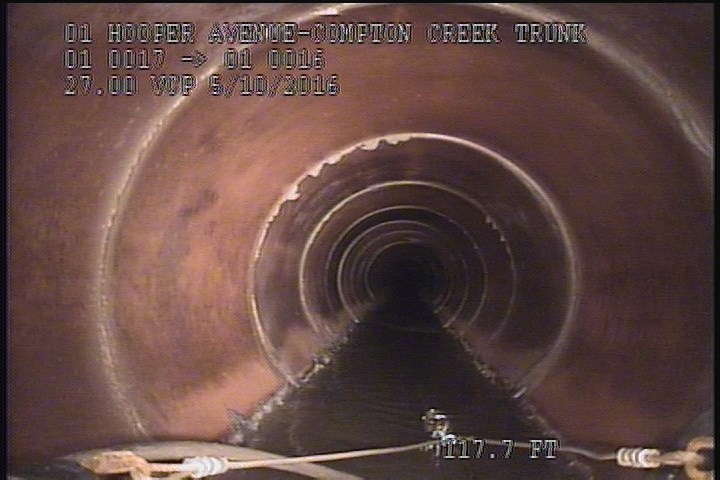

  • General Observation - 27" VCP

    117.7 ft. - General Observation - 27" VCP

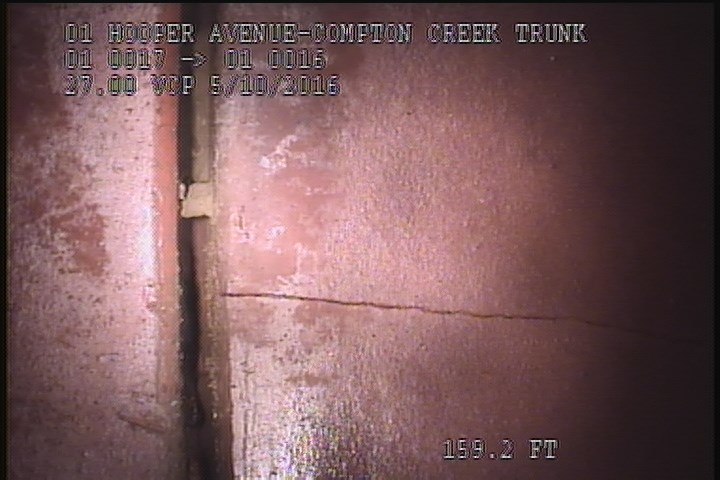

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    159.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

All inspections of P00682Work order 0563420

Observations (39)

DistanceCodeObservation
23FLHAIRLINE AT JOINTS
212.8FLH
11.4FCSLIGHT
14.4FCH
386.6TBOpen
428FL20% SLIGHT
14.4FLH
428FL15% HAIRLINE
17.1FLH
23FCSLIGHT AT JOINTS
23FL—
0MWM—
162.3FL—
428.6AMH6:20AM
20.2FCSLIGHT
10.7FCHAIRLINE
117.7MGO27" VCP
0MGOConn. @ Mh, 9 O' Clock. Active
428FC20% SLIGHT
29.3FLSLIGHT
0MGOConn. @ Mh, 3 O' Clock. Active
428FC15% HAIRLINE
159.2FLSLIGHT
215.9FL—
11.4FLH
0AMH5:35AM
0MWL—
23FL—
23FLSLIGHT AT JOINTS
32.1FLHAIRLINE
46.8FLH
23FL—
11.4FCHAIRLINE
8FLSLIGHT
8FCSLIGHT
9.8FL—
260.1TBActive
333.3TBOpen
23FCHAIRLINE AT JOINTS

Properties (6)

custom_field_three
SALIGHT FRACTURE JOINT TO JOINT
custom_field_two
2
customer
LACSD
datetime
2016-05-10T01:17:31-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
