Wastewater/Activity/PacpInspection/1.0May 10, 2016, 07:19 AM
C 0219_C 0424_5102016_003502.mp4
- Date
- 05/10/2016
- W/O
- 0563389
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00125
- PipeID
- P09631
- Time
- 12:19 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0124
- Sewer Name
- C JOINT OUTFALL C - UNIT 3E RELIEF
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- 20160507MDM_JOINT_OUTFALL_C_UNIT_3E_RELIEF
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- C 0219
- Downstream MH
- C 0424
- Dir. of Survey
- Downstream
- Length Surveyed
- 25 ft.
- Total Length
- 25 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

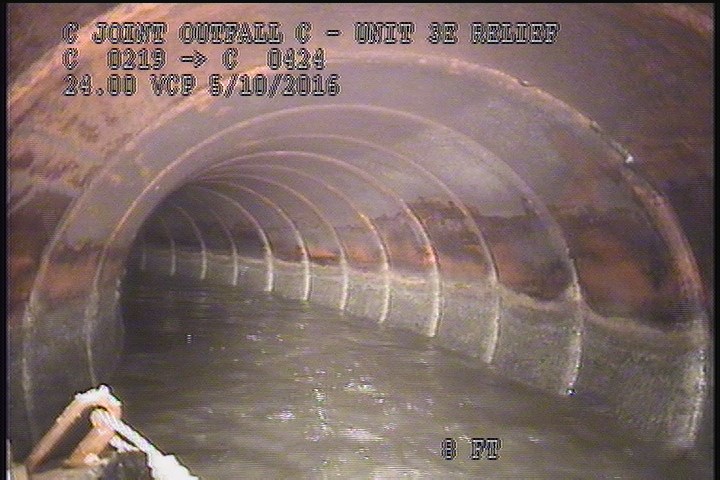

8 ft. - General Observation - 24" VCP

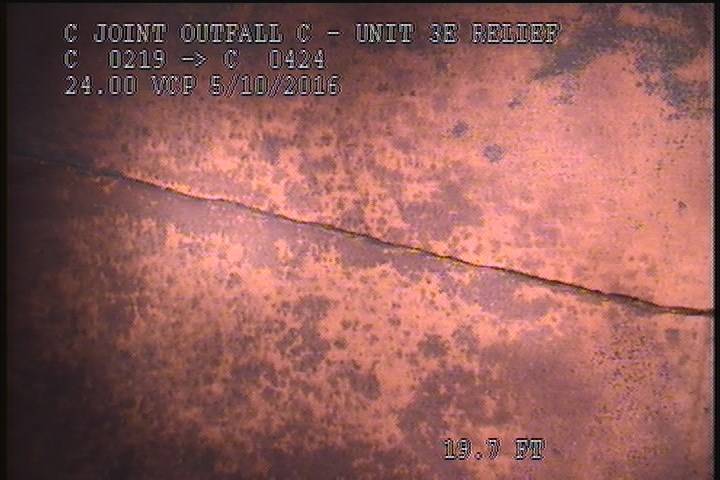

19.7 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT-JOINT TO JOINT- 1' JOINTS LONG
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 12:20AM |
| 19.7 | FL | SLIGHT-JOINT TO JOINT- 1' JOINTS LONG |
| 0 | MWL | — |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active OUTGOING LINE |
| 24.1 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 25 | AMH | 12:30AM |
| 8 | MGO | 24" VCP |
| 0 | MWM | — |
Properties (6)
- custom_field_three
- 1 SLIGHT JOINT TO JOINT-JOINTS 1' LONG
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-05-10T00:19:10-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
