Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 7, 2016, 05:56 PM

  • 15 0378_15 0377_572016_105914.mp4

Date
05/07/2016
W/O
0563341
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00598
PipeID
P12304
Time
10:56 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7111
Sewer Name
15 BALDWIN PARK TRUNK
City
BALDWIN PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
18
Purpose
Routine Assessment
Project
20160507AM_BALDWIN_PARK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
15 0378
Downstream MH
15 0377
Dir. of Survey
Downstream
Length Surveyed
352.1 ft.
Total Length
352.1 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 15 0378 to 15 0377
MH: 15 0378MH: 15 0377downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:57 AM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. MMC - Material Change, Other (state in comments) - CONCRETE PIPE23.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"72.2 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"124.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"153.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - OPEN176.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"177.8 ft. MGO - General Observation - INFILTRATION, WATER SEEPING OUT220.9 ft. MWLS - Water Level, Sag in pipe, 50 %of cross sectional area, Start248.2 ft. MWLS - Water Level, Sag in pipe, 50 %of cross sectional area, Finish270.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"350.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish350.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish350.9 ft. MGO - General Observation - ROACHES INSIDE THE MH.352.1 ft. AMH - Downstream Manhole, Survey Ends - 11:17 AM

Observation photos (6)

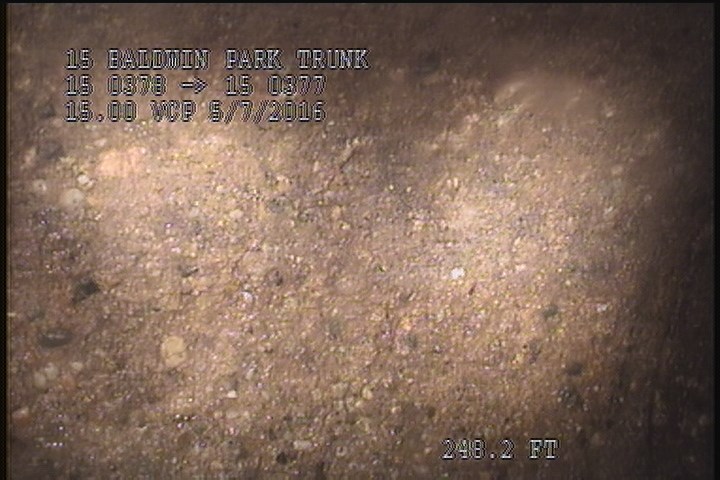

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

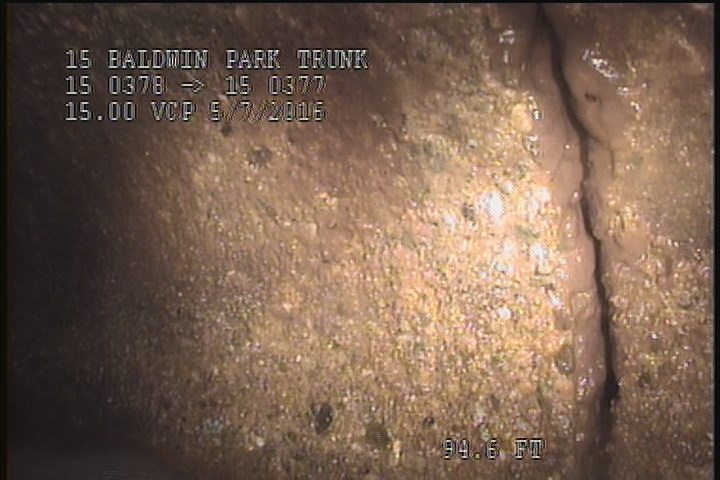

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

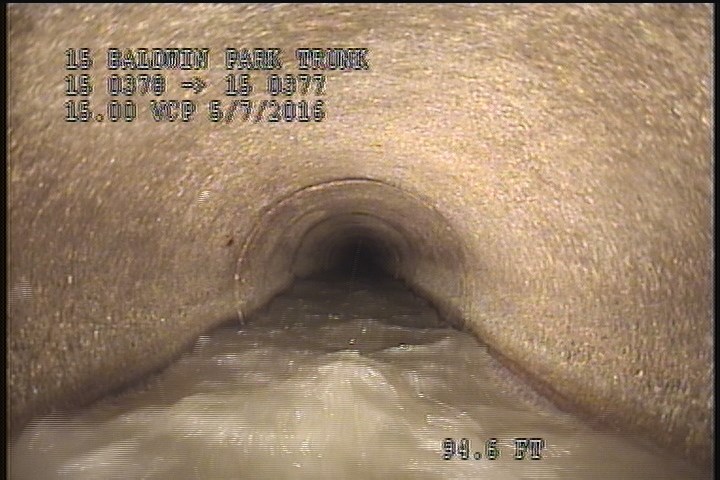

  • Material Change, Other (state in comments) - CONCRETE PIPE

    2 ft. - Material Change, Other (state in comments) - CONCRETE PIPE

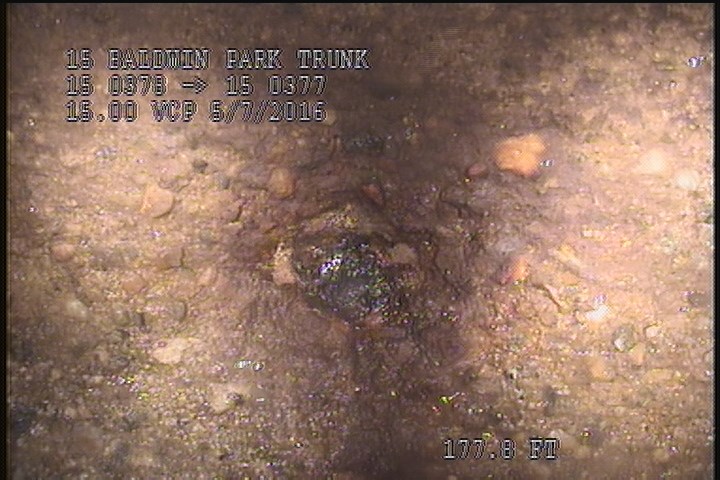

  • General Observation - INFILTRATION, WATER SEEPING OUT

    177.8 ft. - General Observation - INFILTRATION, WATER SEEPING OUT

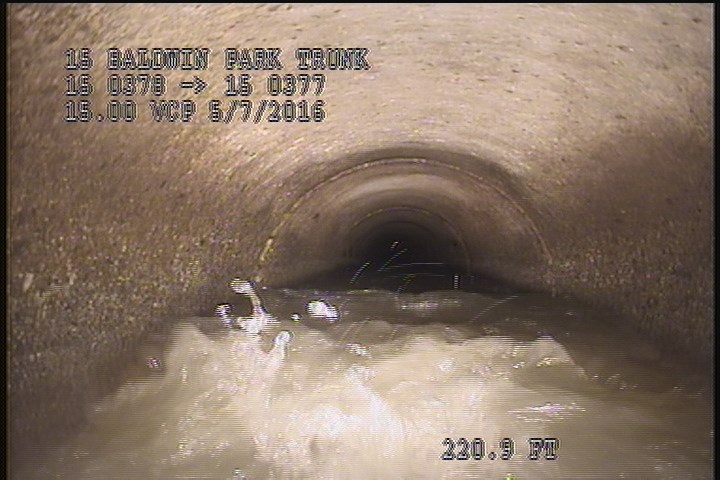

  • Water Level, Sag in pipe, 50 %of cross sectional area, Start

    220.9 ft. - Water Level, Sag in pipe, 50 %of cross sectional area, Start

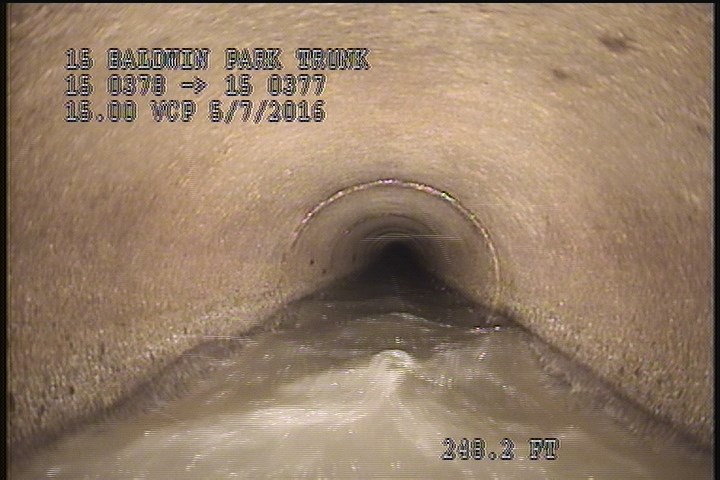

  • Water Level, Sag in pipe, 50 %of cross sectional area, Finish

    248.2 ft. - Water Level, Sag in pipe, 50 %of cross sectional area, Finish

All inspections of P12304Work order 0563341

Observations (20)

DistanceCodeObservation
0MWL—
2SSS—
23.4TFC—
220.9MWLS—
270.8TFC—
153.2TFOPEN
350.9MGOROACHES INSIDE THE MH.
248.2MWLS—
2SAV—
177.8MGOINFILTRATION, WATER SEEPING OUT
2MMCCONCRETE PIPE
72.2TFA—
0MGOROACHES INSIDE THE MH.
0MWM—
124.7TFC—
350.5SAV—
176.6TFA—
0AMH10:57 AM
352.1AMH11:17 AM
350.5SSS—

Properties (6)

additional_info
FASTER/HIGHER WATER
custom_field_two
3
customer
LACSD
datetime
2016-05-07T10:56:44-07:00
documentation
MIRANDA & SHADLER
is_lateral_inspection
false
