Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 7, 2016, 05:12 PM

  • 15 0379_15 0378_572016_101526.mp4

Date
05/07/2016
W/O
0563341
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00598
PipeID
P12305
Time
10:12 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7110
Sewer Name
15 BALDWIN PARK TRUNK
City
BALDWIN PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
18
Purpose
Routine Assessment
Project
20160507AM_BALDWIN_PARK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
15 0379
Downstream MH
15 0378
Dir. of Survey
Downstream
Length Surveyed
353.1 ft.
Total Length
353.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 15 0379 to 15 0378
MH: 15 0379MH: 15 0378downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. AMH - Upstream Manhole, Survey Begins - 10:13 AM2 ft. MMC - Material Change, Other (state in comments) - CONCRETE PIPE2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start20.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"69 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 6"117.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"118.6 ft. MWL - Water Level, 30 %of cross sectional area134.3 ft. MGP - General Photograph - POSSIBLE SMALL HOLE OR INFILTRATION135.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"170.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"223.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"235.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"279.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN324.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"325 ft. MGP - General Photograph - POSSIBLE SMALL HOLE OR INFILTRATION328.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"351.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish351.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish352.7 ft. MGO - General Observation - ROACHES INSIDE THE MH.353.1 ft. AMH - Downstream Manhole, Survey Ends - 10:46 AM

Observation photos (7)

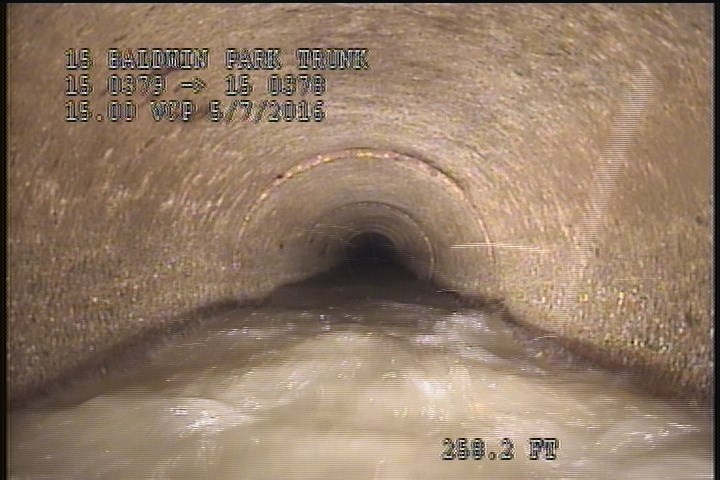

  • Water Level, 25 %of cross sectional area

    0 ft. - Water Level, 25 %of cross sectional area

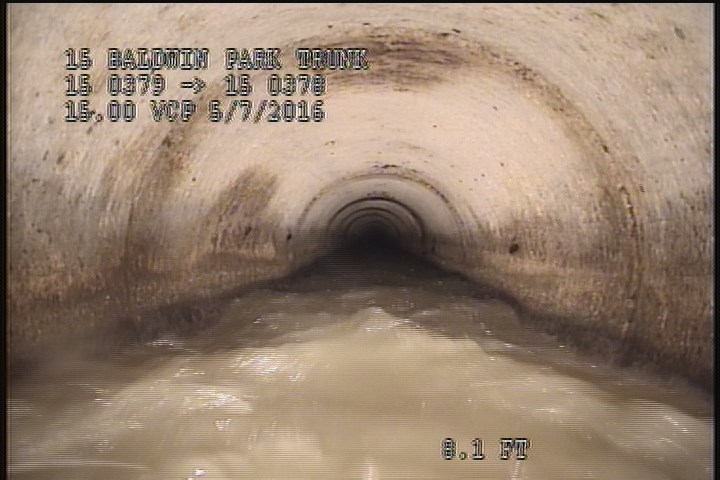

  • Upstream Manhole, Survey Begins - 10:13 AM

    0 ft. - Upstream Manhole, Survey Begins - 10:13 AM

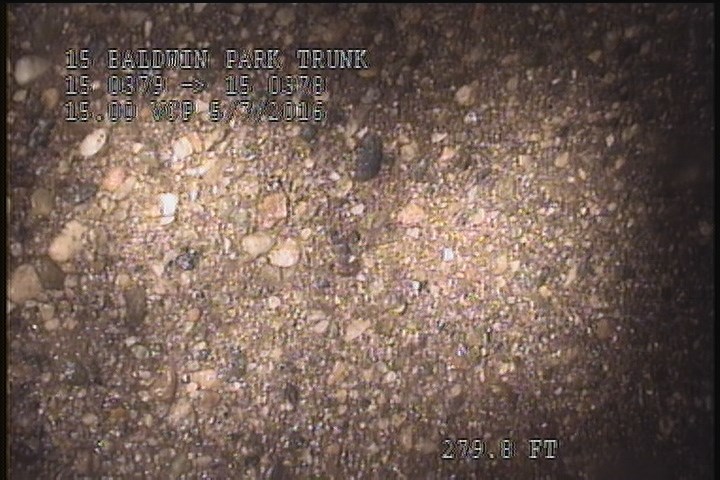

  • Material Change, Other (state in comments) - CONCRETE PIPE

    2 ft. - Material Change, Other (state in comments) - CONCRETE PIPE

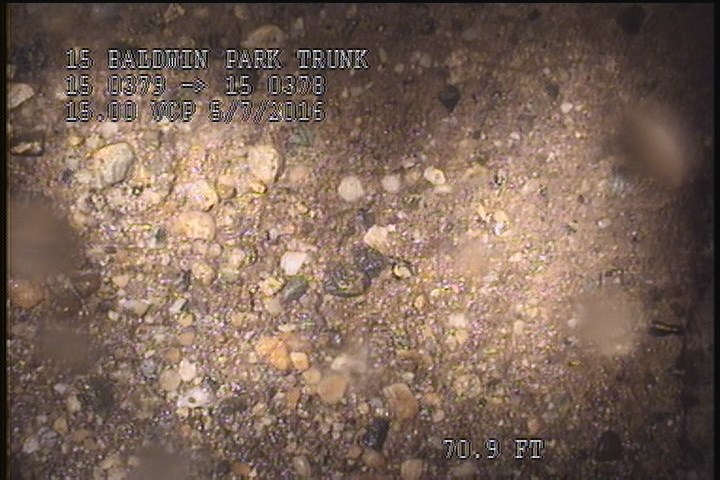

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

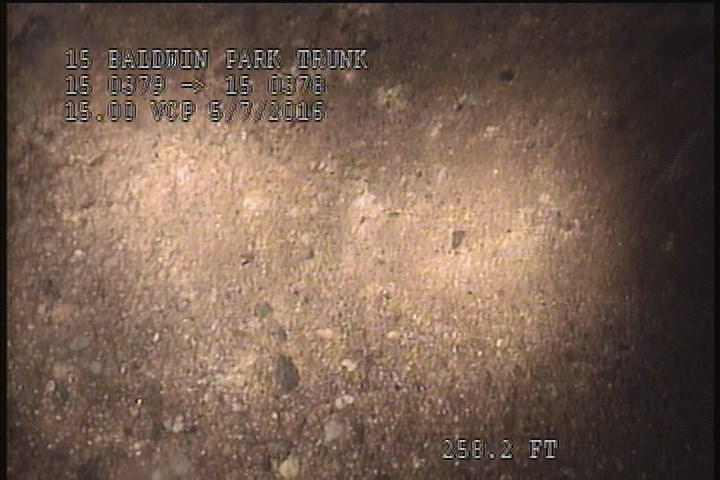

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

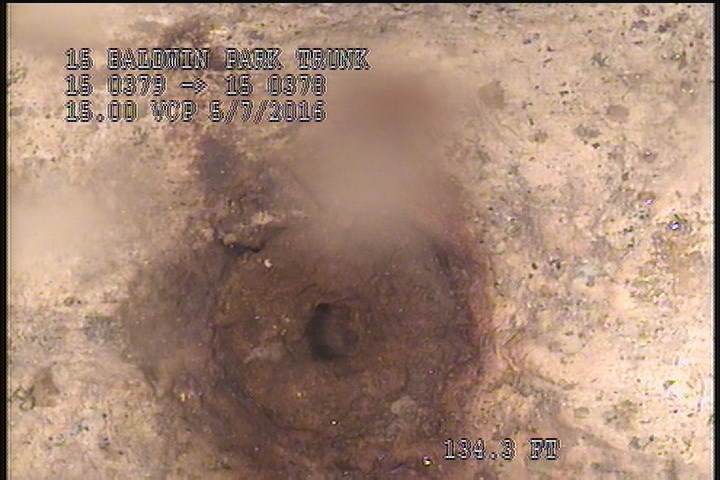

  • General Photograph - POSSIBLE SMALL HOLE OR INFILTRATION

    134.3 ft. - General Photograph - POSSIBLE SMALL HOLE OR INFILTRATION

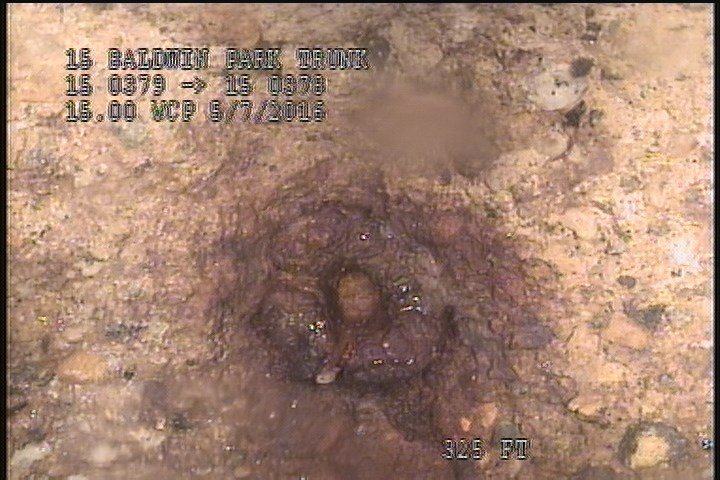

  • General Photograph - POSSIBLE SMALL HOLE OR INFILTRATION

    325 ft. - General Photograph - POSSIBLE SMALL HOLE OR INFILTRATION

All inspections of P12305Work order 0563341

Observations (24)

DistanceCodeObservation
20.6TFC—
0MWM—
118.6MWL—
351.4SSS—
170.7TFC—
2MMCCONCRETE PIPE
223.4TFA—
279.8TFOPEN
134.3MGPPOSSIBLE SMALL HOLE OR INFILTRATION
235.4TFC—
353.1AMH10:46 AM
2SAV—
324.1TFA—
0MWL—
0MGOROACHES INSIDE THE MH.
117.9TFA—
135.4TFA—
0AMH10:13 AM
352.7MGOROACHES INSIDE THE MH.
2SSS—
69TFA—
328.7TFC—
325MGPPOSSIBLE SMALL HOLE OR INFILTRATION
351.4SAV—

Properties (6)

additional_info
FASTER/HIGHER WATER
custom_field_two
3
customer
LACSD
datetime
2016-05-07T10:12:21-07:00
documentation
MIRANDA & SHADLER
is_lateral_inspection
false
