Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 7, 2016, 01:24 PM

  • 15 0384_15 0383_572016_063334.mp4

Date
05/07/2016
W/O
0563341
Weather
Light Rain
Operator/Surveyor
MIRANDA
Sewer ID
Z00598
PipeID
P12310
Time
6:24 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7110
Sewer Name
15 BALDWIN PARK TRUNK
City
BALDWIN PARK
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
18
Purpose
Routine Assessment
Project
20160507AM_BALDWIN_PARK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
15 0383
Downstream MH
15 0384
Dir. of Survey
Upstream
Length Surveyed
350.9 ft.
Total Length
350.9 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 15 0383 to 15 0384
MH: 15 0383MH: 15 0384upstream0 ft. AMH - Upstream Manhole, Survey Ends - 6:55 AM0.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish0.8 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH0.8 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 12 O'CLOCK0.8 ft. MGO - General Observation - ROACHES INSIDE THE MH.0.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish0.8 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK0.8 ft. MGO - General Observation - UNKNOWN CONN. INSIDE THE MH. @ 03 O'CLOCK73.9 ft. TBI - Tap Break-In Intruding, at 11 o'clock, -, -, within 8 inches of joint: YES, 6", 1" - ACTIVE82.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"146.4 ft. DAR - Deposits Attached Ragging, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES171.8 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 4"293.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - ACTIVE348.8 ft. MMC - Material Change, Other (state in comments) - CONCRETE PIPE348.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start348.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start350.9 ft. AMH - Downstream Manhole, Survey Begins - 6:26 AM350.9 ft. MWL - Water Level, 10 %of cross sectional area350.9 ft. MGO - General Observation - ROACHES INSIDE THE MH.350.9 ft. MWM - Water Mark, 25 %of cross sectional area

Observation photos (4)

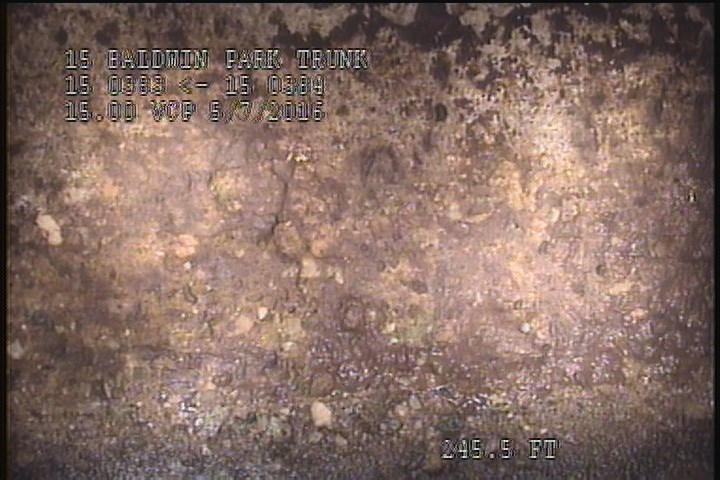

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

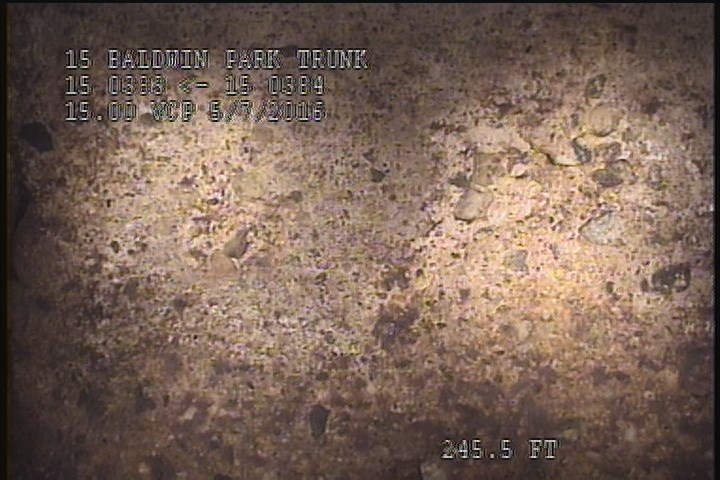

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

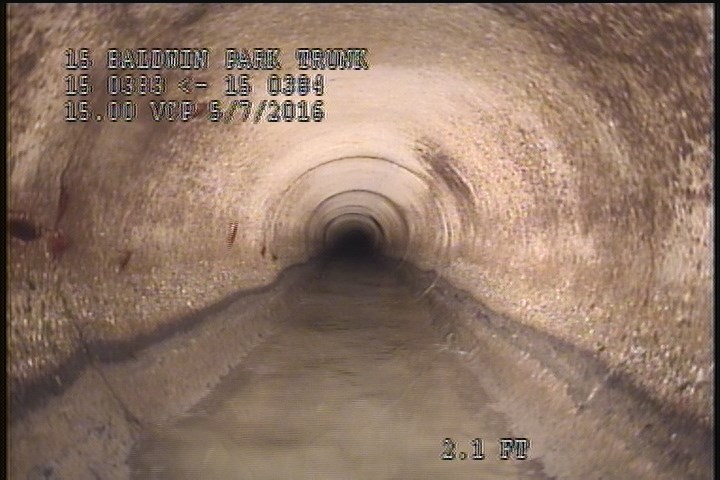

  • Material Change, Other (state in comments) - CONCRETE PIPE

    2.1 ft. - Material Change, Other (state in comments) - CONCRETE PIPE

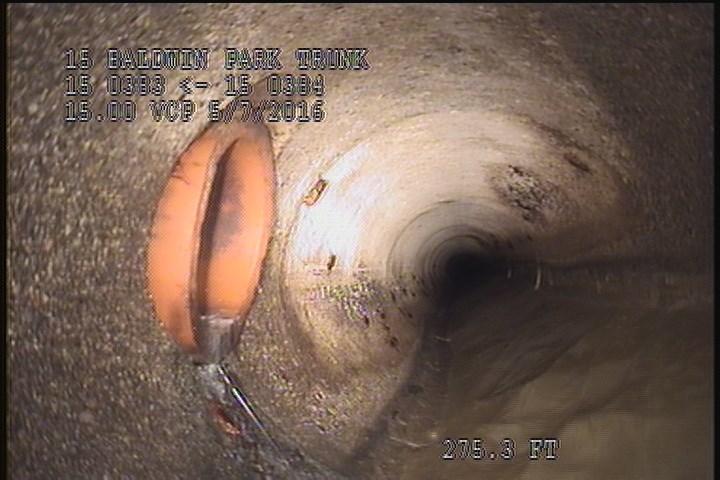

  • Tap Break-In Intruding, at 11 o'clock, -, -, within 8 inches of joint: YES, 6", 1" - ACTIVE

    277 ft. - Tap Break-In Intruding, at 11 o'clock, -, -, within 8 inches of joint: YES, 6", 1" - ACTIVE

All inspections of P12310Work order 0563341

Observations (20)

DistanceCodeObservation
350.1SSS—
350.1MGOSLIGHT GREASE THROUGHOUT THE REACH
0AMH6:26 AM
350.1MGOACTIVE CONN. INSIDE THE MH. @ 12 O'CLOCK
2SSS—
0MWL—
268.3TFC—
350.9AMH6:55 AM
350.1MGOROACHES INSIDE THE MH.
350.1SAV—
350.1MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
204.5DAR—
2SAV—
0MGOROACHES INSIDE THE MH.
179.1TFA—
2.1MMCCONCRETE PIPE
0MWM—
350.1MGOUNKNOWN CONN. INSIDE THE MH. @ 03 O'CLOCK
277TBIACTIVE
57.1TFACTIVE

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2016-05-07T06:24:04-07:00
documentation
MIRANDA & SHADLER
is_lateral_inspection
false
