Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 6, 2016, 08:25 AM
Date
05/06/2016
W/O
0571171
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00509
PipeID
P07344
Time
1:25 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Heavy Cleaning
Media Label
G6701
Sewer Name
05 PRAIRIE AVENUE TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
07
Purpose
Maintenance Related
Project
20160506MDM_PRAIRIE_AVENUE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
05 2200
Downstream MH
05 2199
Dir. of Survey
Downstream
Length Surveyed
359.5 ft.
Total Length
359.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2N00
O&M Rating
146
Overall Index
2
Overall Quick
—
Overall Rating
146
Pipe schematic from manhole 05 2200 to 05 2199
MH: 05 2200MH: 05 2199downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, at 09 o'clock, , within 8 inches of joint: YES, Start0 ft. AMH - Upstream Manhole, Survey Begins - 2:55AM5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start5 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, at 09 o'clock, , within 8 inches of joint: YES, Finish189.3 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO306.8 ft. MGP - General Photograph306.8 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start306.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish359.2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish359.5 ft. AMH - Downstream Manhole, Survey Ends - 3:20AM

Observation photos (4)

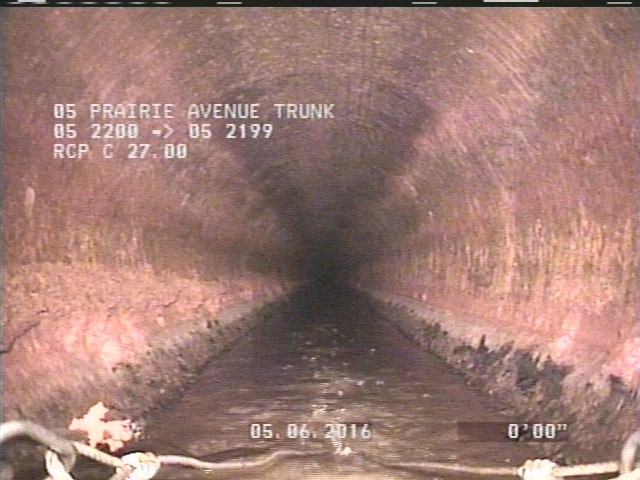

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

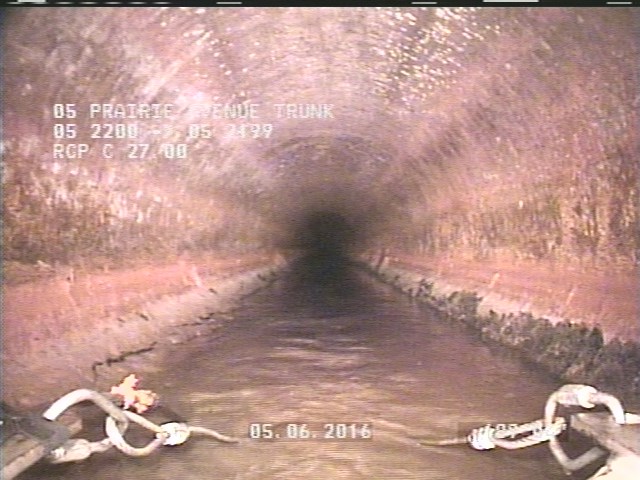

  • Deposits Attached Grease, 2 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO

    189.3 ft. - Deposits Attached Grease, 2 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO

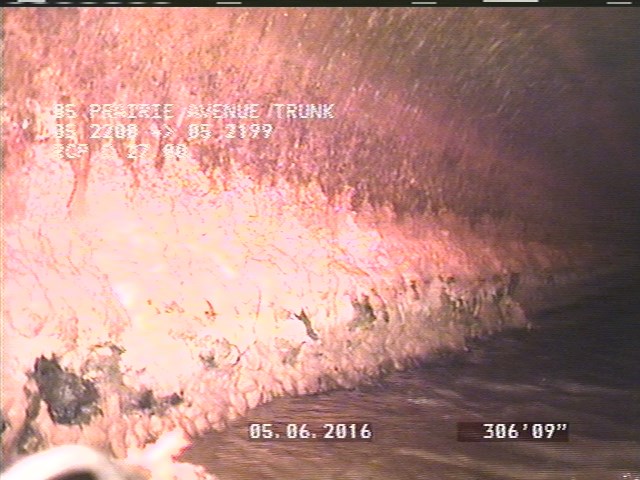

  • General Photograph

    306.8 ft. - General Photograph

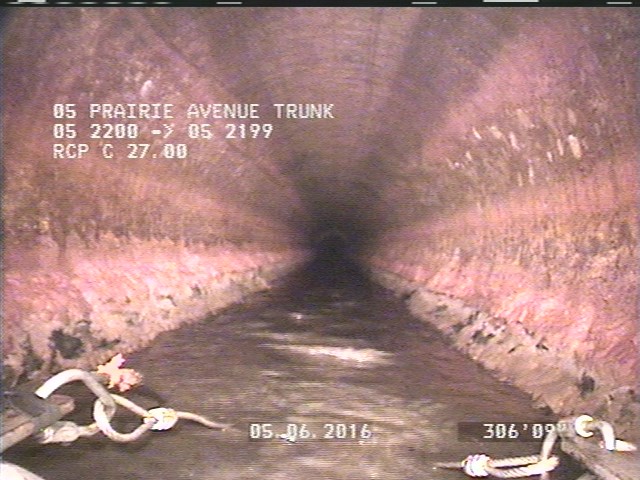

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    306.8 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P07344Work order 0571171

Observations (12)

DistanceCodeObservation
0MWL—
306.8MGP—
5DAGS—
5DAGS—
359.5AMH3:20AM
189.3DAGS—
0MWM—
306.8DAGS—
359.2DAGS—
0DAGS—
0AMH2:55AM
306.8DAGS—

Properties (5)

additional_info
POST GREASE CCTV
customer
LACSD
datetime
2016-05-06T01:25:40-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
