Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 4, 2016, 10:47 AM

  • 05 0758_05 0757_542016_052238.mp4

Date
05/04/2016
W/O
0563852
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00484
PipeID
P05985
Time
3:47 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0121
Sewer Name
05 MANCHESTER-VERMONT RELIEF TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
09
Purpose
Capital Improvement Program Assesment
Project
20160503MDM_MANCHESTER_VERMONT_RELIEF_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 0758
Downstream MH
05 0757
Dir. of Survey
Downstream
Length Surveyed
422.9 ft.
Total Length
422.9 ft.
Structural Index
2
Structural Quick
4134
Structural Rating
46
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
46
Pipe schematic from manhole 05 0758 to 05 0757
MH: 05 0758MH: 05 0757downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:20AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area7.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT8.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT11.2 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE14.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT15.2 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - H18.6 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - MODERATE18.6 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT23.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H27.1 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SLIGHT30.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT39 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SLIGHT43 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT47 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT47 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H51 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT55.3 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS55.3 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS55.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS55.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS220.1 ft. MGO - General Observation - 15" VCP369.6 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - MODERATE422.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% HAIRLINE422.6 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Finish - 20% SLIGHT422.6 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Finish - 20% HAIRLINE422.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% SLIGHT422.9 ft. AMH - Downstream Manhole, Survey Ends - 6:10AM

Observation photos (4)

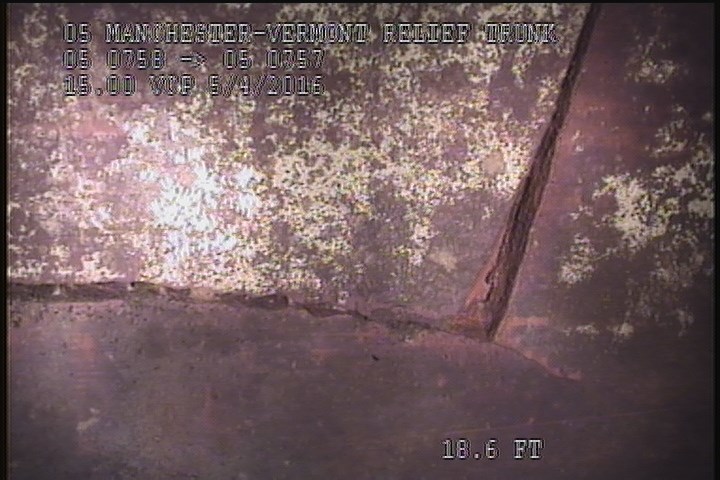

  • Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - MODERATE

    18.6 ft. - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - MODERATE

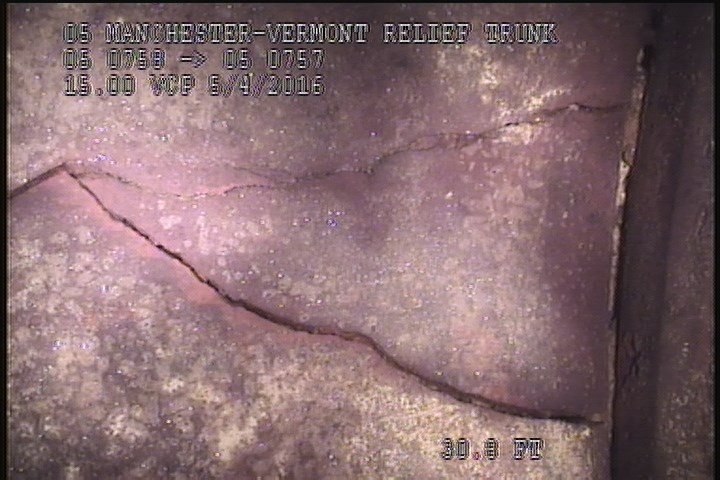

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

    30.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

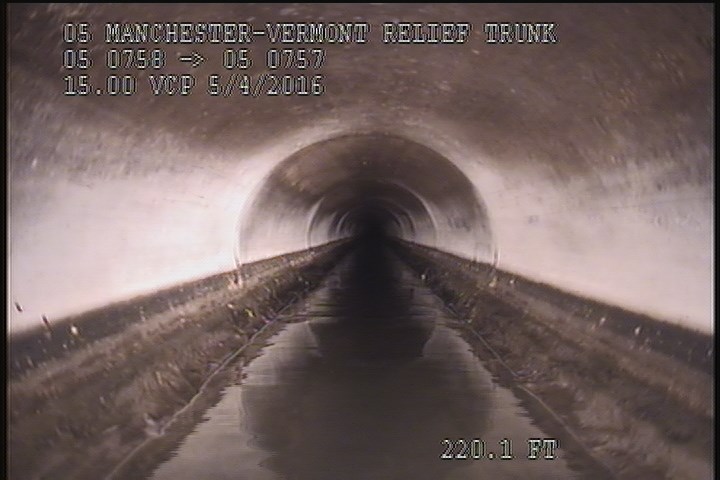

  • General Observation - 15" VCP

    220.1 ft. - General Observation - 15" VCP

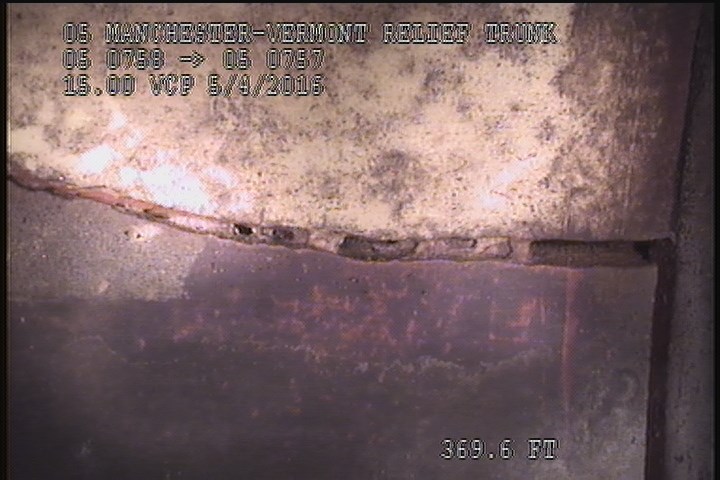

  • Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - MODERATE

    369.6 ft. - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - MODERATE

All inspections of P05985Work order 0563852

Observations (29)

DistanceCodeObservation
422.6FC70% HAIRLINE
422.6FL20% SLIGHT
0AMH5:20AM
30.8FMSLIGHT
422.6FL20% HAIRLINE
18.6FCMODERATE
51FCSLIGHT
422.6FC70% SLIGHT
14.8FLSLIGHT
55.3FLSLIGHT AT JOINTS
422.9AMH6:10AM
55.3FLHAIRLINE AT JOINTS
39FCSLIGHT
43FCSLIGHT
7.5FLSLIGHT
27.1FCSLIGHT
18.6FCSLIGHT
55.3FCHAIRLINE AT JOINTS
47FCSLIGHT
369.6FCMODERATE
220.1MGO15" VCP
55.3FCSLIGHT AT JOINTS
0MWL—
8.1FCSLIGHT
47FCH
15.2FCH
11.2FCHAIRLINE
23.1FCH
0MWM—

Properties (6)

custom_field_three
MODERATE &SLIGHT FRACTURES
custom_field_two
2
customer
LACSD
datetime
2016-05-04T03:47:13-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
