Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 4, 2016, 08:50 AM

  • 05 0760_05 0759_542016_020544.mp4

Date
05/04/2016
W/O
0563852
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00484
PipeID
P05987
Time
1:50 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0120
Sewer Name
05 MANCHESTER-VERMONT RELIEF TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
09
Purpose
Capital Improvement Program Assesment
Project
20160503MDM_MANCHESTER_VERMONT_RELIEF_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 0760
Downstream MH
05 0759
Dir. of Survey
Downstream
Length Surveyed
420.7 ft.
Total Length
420.7 ft.
Structural Index
2
Structural Quick
4234
Structural Rating
54
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
54
Pipe schematic from manhole 05 0760 to 05 0759
MH: 05 0760MH: 05 0759downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:50AM3.7 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT7.9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE7.9 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT7.9 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H11.6 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT15.6 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H15.9 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT19.9 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H19.9 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT23.9 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES - H23.9 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT27.6 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT27.6 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H31.9 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT35.7 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT35.7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - H40 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT40.5 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - H44.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS44.2 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS44.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS44.2 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS116.5 ft. MGO - General Observation - 15" VCP353.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT420.2 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Finish - 30% SLIGHT AT JOINTS420.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% SLIGHT AT JOINTS420.2 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Finish - 30% HAIRLINE AT JOINTS420.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% HAIRLINE AT JOINTS420.7 ft. AMH - Downstream Manhole, Survey Ends - 3:00AM

Observation photos (3)

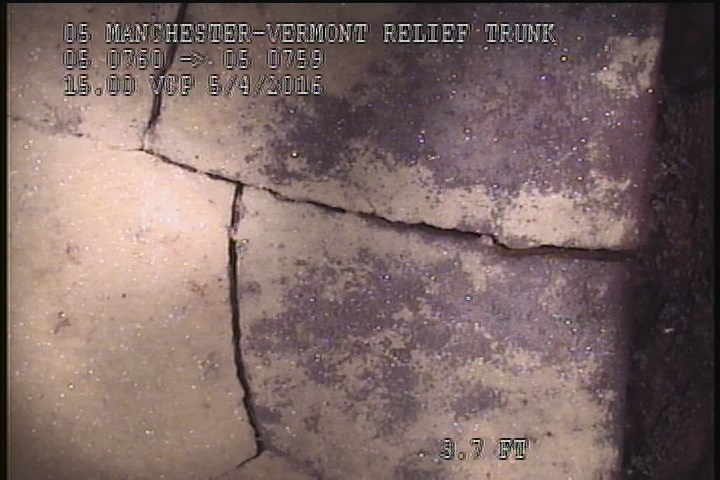

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

    3.7 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

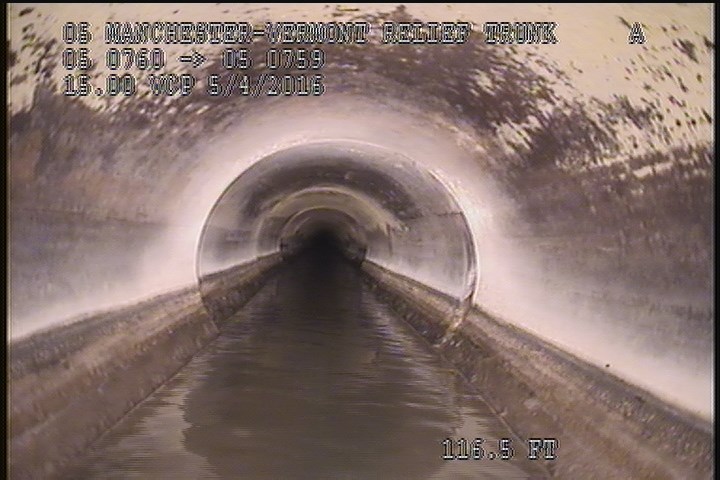

  • General Observation - 15" VCP

    116.5 ft. - General Observation - 15" VCP

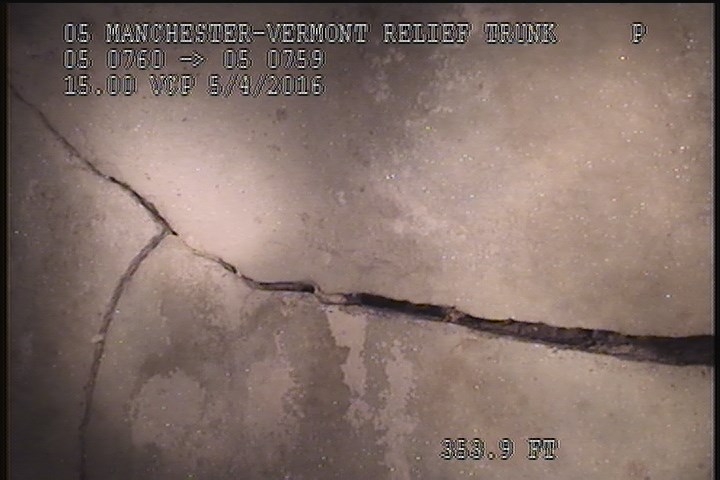

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

    353.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

All inspections of P05987Work order 0563852

Observations (32)

DistanceCodeObservation
7.9FCHAIRLINE
0MWM—
40FLSLIGHT
35.7FCSLIGHT
19.9FCH
420.2FL30% SLIGHT AT JOINTS
7.9FCSLIGHT
44.2FCHAIRLINE AT JOINTS
40.5FCH
116.5MGO15" VCP
44.2FLSLIGHT AT JOINTS
27.6FCSLIGHT
420.2FC80% SLIGHT AT JOINTS
0MWL—
19.9FCSLIGHT
420.2FL30% HAIRLINE AT JOINTS
27.6FCH
31.9FCSLIGHT
35.7FCH
7.9FCH
0AMH1:50AM
15.6FCH
23.9FLH
15.9FCSLIGHT
44.2FCSLIGHT AT JOINTS
420.2FC80% HAIRLINE AT JOINTS
44.2FLHAIRLINE AT JOINTS
420.7AMH3:00AM
353.9FMSLIGHT
23.9FCSLIGHT
11.6FCSLIGHT
3.7FMSLIGHT

Properties (6)

custom_field_three
SLIGHT FRACTURES MULTIPLE
custom_field_two
2
customer
LACSD
datetime
2016-05-04T01:50:00-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
