Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 3, 2016, 10:52 AM

  • 05 0763_05 0762_532016_052536.mp4

Date
05/03/2016
W/O
0563852
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00484
PipeID
P05990
Time
3:52 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0116
Sewer Name
05 MANCHESTER-VERMONT RELIEF TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
09
Purpose
Capital Improvement Program Assesment
Project
20160503MDM_MANCHESTER_VERMONT_RELIEF_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 0763
Downstream MH
05 0762
Dir. of Survey
Downstream
Length Surveyed
238.6 ft.
Total Length
238.6 ft.
Structural Index
2
Structural Quick
342D
Structural Rating
60
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
60
Pipe schematic from manhole 05 0763 to 05 0762
MH: 05 0763MH: 05 0762downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:20AM0.2 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - HAIRLINE8.3 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SLIGHT8.3 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SLIGHT12.4 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H12.4 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SLIGHT12.4 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT16.3 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H16.3 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT20.4 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SLIGHT20.4 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SLIGHT24.4 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H24.4 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SLIGHT32.4 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SLIGHT36.3 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT36.3 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT40.6 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT44.5 ft. FC - Fracture Circumferential, from 11 to 04 o'clock, within 8 inches of joint: YES - SLIGHT52.5 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SLIGHT52.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT64.4 ft. FC - Fracture Circumferential, from 08 to 01 o'clock, within 8 inches of joint: YES - SLIGHT65 ft. FC - Fracture Circumferential, from 09 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE68.6 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SLIGHT72.2 ft. FL - Fracture Longitudinal, at 08 TO 4o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS72.2 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS72.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS72.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS80.7 ft. MGO - General Observation - 15" VCP197.8 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - MODERATE218.2 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - MODERATE238.2 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 10% AT JOINTS HAIRLINE238.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 40% AT JOINTS HAIRLINE238.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% AT JOINTS SLIGHT238.2 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 20% AT JOINTS SLIGHT238.6 ft. AMH - Downstream Manhole, Survey Ends - 5:55AM

Observation photos (3)

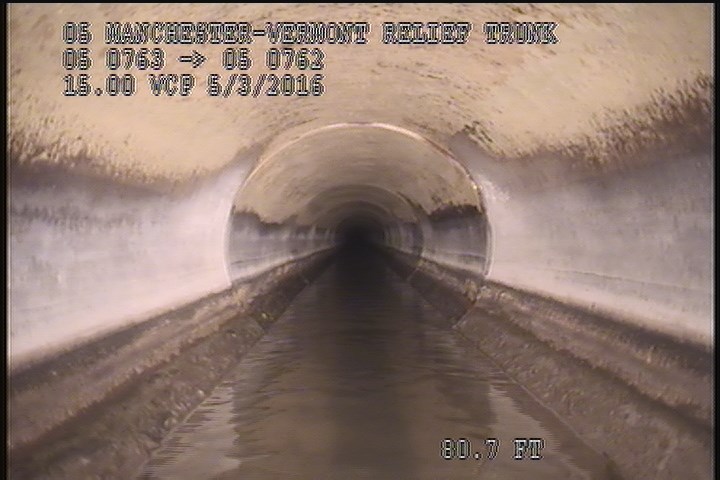

  • General Observation - 15" VCP

    80.7 ft. - General Observation - 15" VCP

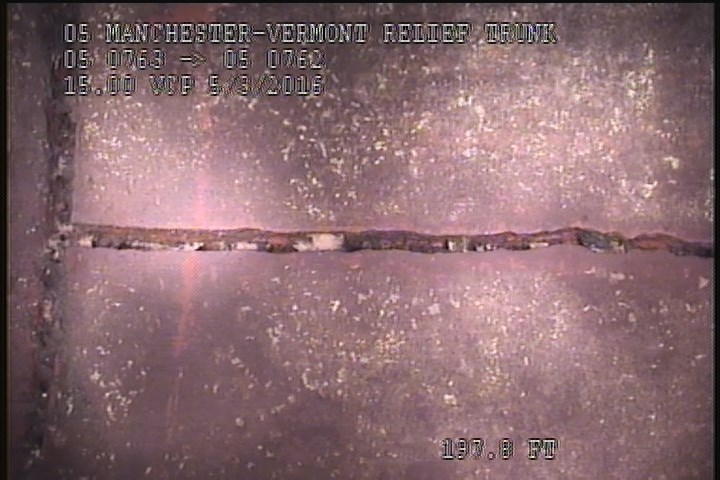

  • Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - MODERATE

    197.8 ft. - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - MODERATE

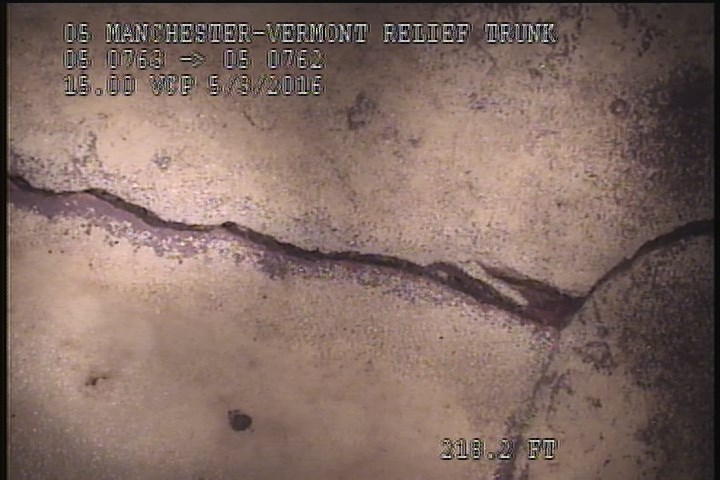

  • Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - MODERATE

    218.2 ft. - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - MODERATE

All inspections of P05990Work order 0563852

Observations (37)

DistanceCodeObservation
12.4FCH
12.4FCSLIGHT
0MWL—
24.4FCH
36.3FCSLIGHT
36.3FCSLIGHT
16.3FCH
64.4FCSLIGHT
68.6FCSLIGHT
12.4FCSLIGHT
0MWM—
44.5FCSLIGHT
218.2FCMODERATE
65FCHAIRLINE
0AMH5:20AM
52.5FCSLIGHT
238.2FL10% AT JOINTS HAIRLINE
238.6AMH5:55AM
72.2FLHAIRLINE AT JOINTS
238.2FC40% AT JOINTS HAIRLINE
20.4FCSLIGHT
8.3FCSLIGHT
40.6FCSLIGHT
24.4FCSLIGHT
16.3FCSLIGHT
80.7MGO15" VCP
238.2FC70% AT JOINTS SLIGHT
20.4FCSLIGHT
72.2FLSLIGHT AT JOINTS
238.2FL20% AT JOINTS SLIGHT
0.2FLHAIRLINE
72.2FCHAIRLINE AT JOINTS
72.2FCSLIGHT AT JOINTS
197.8FCMODERATE
8.3FCSLIGHT
32.4FCSLIGHT
52.5FLSLIGHT

Properties (6)

custom_field_three
MODERATE & SLIGHT FRACTURES
custom_field_two
2
customer
LACSD
datetime
2016-05-03T03:52:26-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
