Wastewater/Activity/PacpInspection/1.0Jun 6, 2017, 11:04 AM
- Date
- 06/06/2017
- W/O
- 641198
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z01131
- PipeID
- P25269
- Time
- 4:04 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3962
- Sewer Name
- 05 COLDEN AVENUE RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_641198_TV05127_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 2567
- Downstream MH
- 05 2568
- Dir. of Survey
- Upstream
- Length Surveyed
- 282.8 ft.
- Total Length
- 282.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (1)

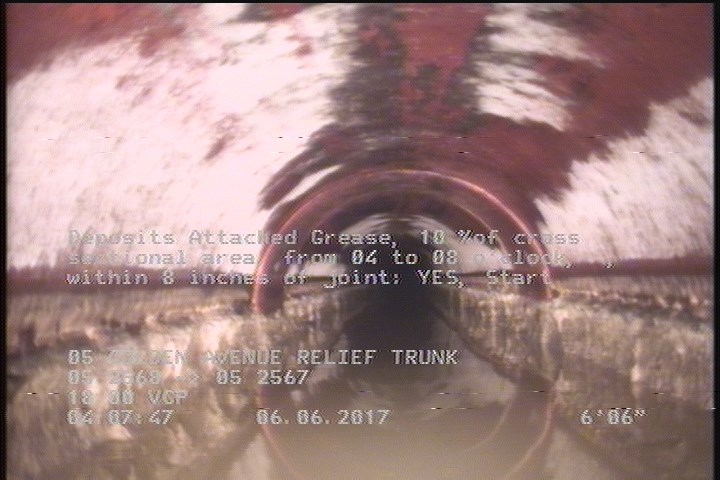

6.5 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 282.8 | AMH | 05 2568 |
| 6.5 | DAGS | — |
| 0.1 | MWM | — |
| 0 | AMH | 05 2567 |
| 281 | DAGS | — |
| 0 | MWL | — |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-06-06T04:04:14-07:00
- is_lateral_inspection
- false
- year_laid
- 38590
