Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 3, 2016, 07:45 AM

  • 18 0292_18 0291_632016_033341.mp4

Date
06/03/2016
W/O
0568850
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00702
PipeID
P14121
Time
12:45 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0147
Sewer Name
18 SHOEMAKER AVENUE TRUNK
City
LA MIRADA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
25
Purpose
Routine Assessment
Project
20160603MDM_SHOEMAKER_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
10 in.
Upstream MH
18 0292
Downstream MH
18 0291
Dir. of Survey
Downstream
Length Surveyed
279.7 ft.
Total Length
279.7 ft.
Structural Index
2
Structural Quick
3328
Structural Rating
25
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
25
Pipe schematic from manhole 18 0292 to 18 0291
MH: 18 0292MH: 18 0291downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:30AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active2 ft. MMC - Material Change, Vitrified clay pipe6 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SLIGHT54.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped57.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped63.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - HAIRLINE83.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE104.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6", 6" - Capped107.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped145.9 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SLIGHT154.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped156.5 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE157.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped175.7 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SLIGHT191.5 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SLIGHT208.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped211.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped233.3 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT233.3 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT253.5 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - HAIRLINE257.5 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H258.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped261.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped279.3 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active279.7 ft. AMH - Downstream Manhole, Survey Ends - 4:05AM

Observation photos (2)

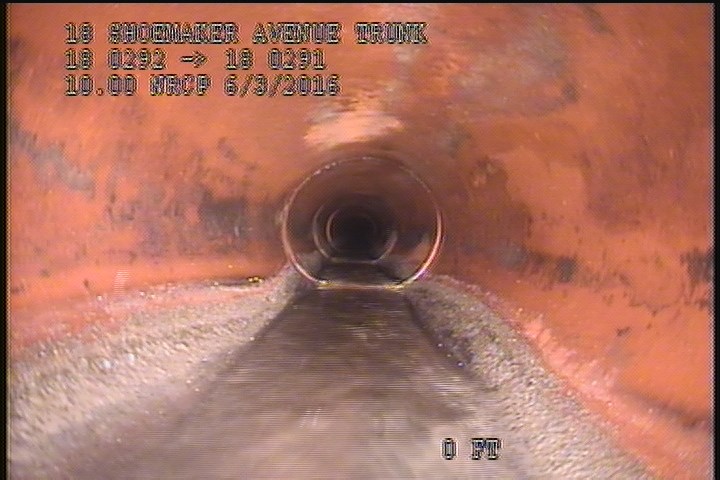

  • Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SLIGHT

    6 ft. - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SLIGHT

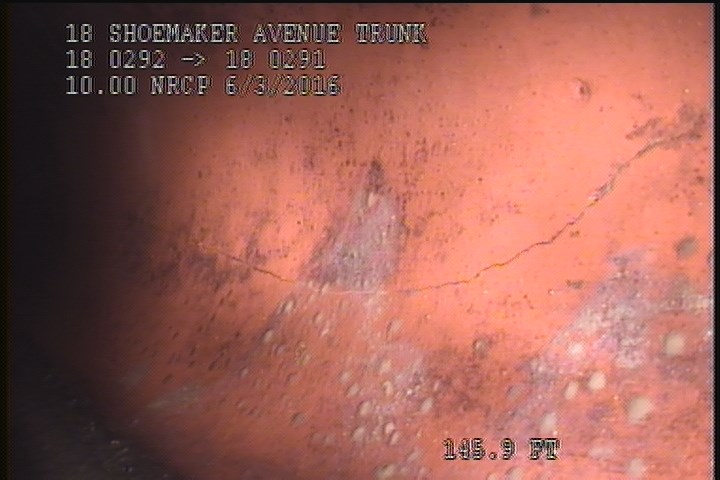

  • Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SLIGHT

    145.9 ft. - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SLIGHT

All inspections of P14121Work order 0568850

Observations (28)

DistanceCodeObservation
157.2TFCCapped
0MWM—
6FCSLIGHT
211.3TFCCapped
54.9TFCCapped
57.3TFCCapped
258.4TFCCapped
156.5FCHAIRLINE
83.5FLHAIRLINE
233.3FCSLIGHT
63.2FLHAIRLINE
191.5FCSLIGHT
0MWL—
253.5FLHAIRLINE
257.5FCH
0AMH3:30AM
107.4TFCCapped
208.7TFCCapped
154.9TFCCapped
175.7FCSLIGHT
104.8TFCCapped
279.7AMH4:05AM
233.3FCSLIGHT
261.3TFCCapped
0MGOConn. @ Mh, 3 O' Clock. Active
145.9FCSLIGHT
279.3MGOConn. @ Mh, 3 O' Clock. Active
2MMC—

Properties (6)

custom_field_three
FEW SLIGHT FRACTURES
custom_field_two
4
customer
LACSD
datetime
2016-06-03T00:45:31-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
