Wastewater/Activity/PacpInspection/1.0Mar 18, 2016, 03:37 PM
C 0474_C 0473_3182016_091334.mp4
- Date
- 03/18/2016
- W/O
- 0547102
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00132
- PipeID
- P09724
- Time
- 8:37 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7078
- Sewer Name
- C JOINT OUTFALL C - UNIT 6C RENOVATION*
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- 20160318AM_JOINT_OUTFALL_C_UNIT_6C_RENOVATION
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- C 0474
- Downstream MH
- C 0473
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4131
- O&M Rating
- 7
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (4)

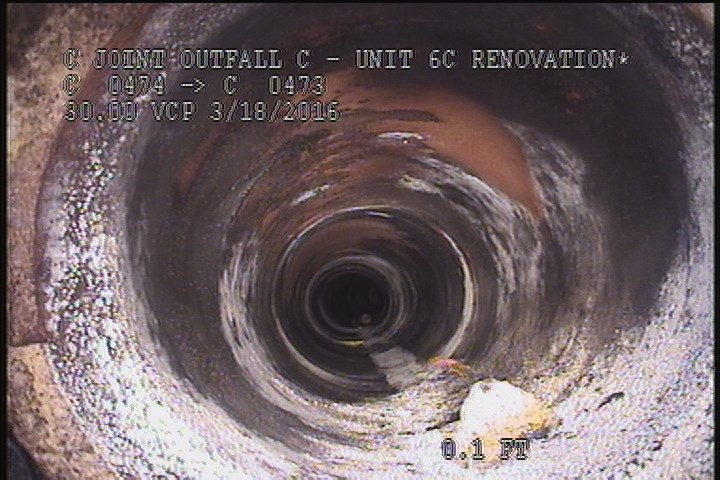

0 ft. - General Observation - AIRLINE

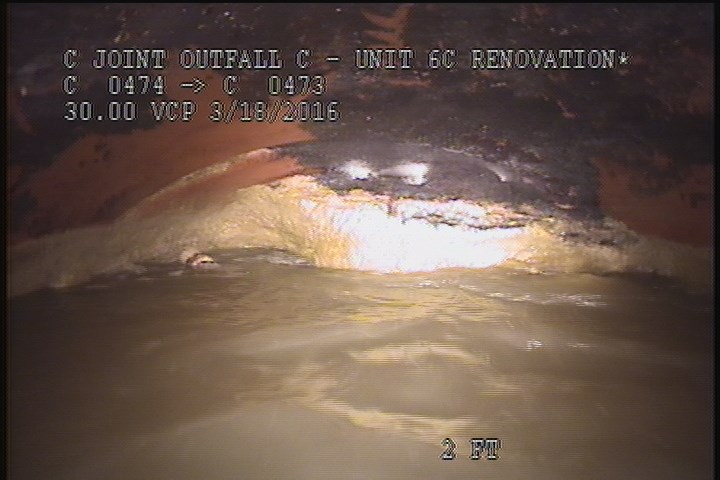

0 ft. - Upstream Manhole, Survey Begins - 9:10 AM

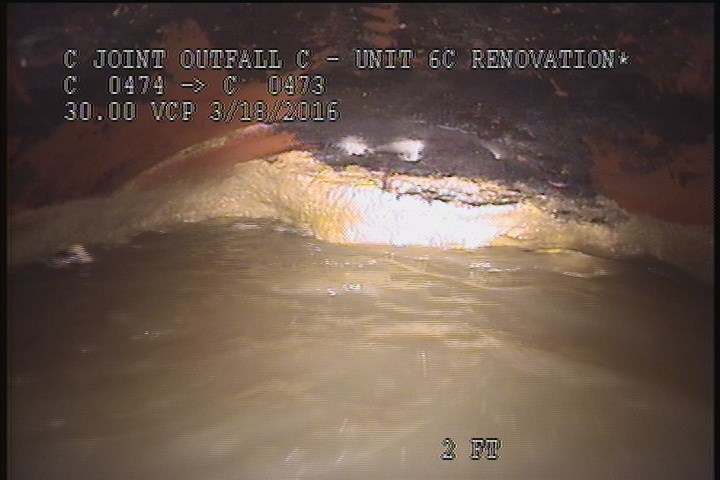

2 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

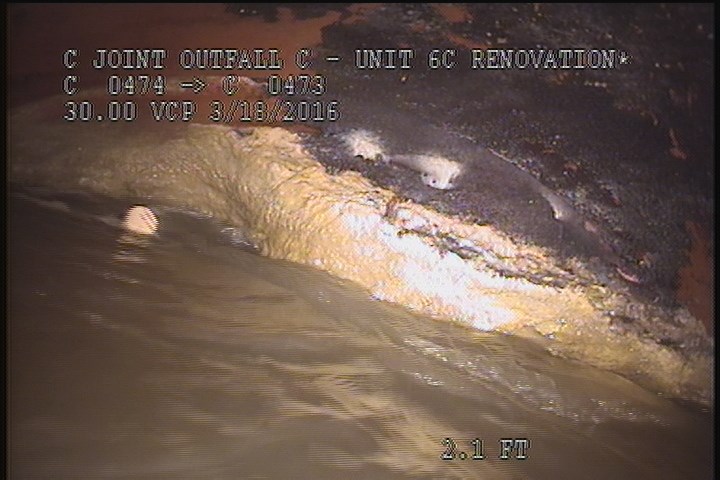

2.1 ft. - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWL | — |
| 2.1 | MSA | VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON |
| 2 | LD | — |
| 0 | MGO | AIRLINE |
| 0 | AMH | 9:10 AM |
Properties (6)
- additional_info
- VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-18T08:37:34-07:00
- documentation
- MIRANDA, SHADLER, FRANKLIN
- is_lateral_inspection
- false
