Wastewater/Activity/PacpInspection/1.0Mar 15, 2016, 07:27 AM
- Date
- 03/15/2016
- W/O
- 0557681
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00057
- PipeID
- P11482
- Time
- 12:27 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6672
- Sewer Name
- J JOINT OUTFALL J - UNIT 1E
- City
- PALO VERDES
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 47
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160315MDM_JOINT_OUTFALL_J_UNIT_1E
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- J 0235A
- Downstream MH
- J 0235
- Dir. of Survey
- Downstream
- Length Surveyed
- 82.6 ft.
- Total Length
- 82.6 ft.
- Structural Index
- 2
- Structural Quick
- 2B00
- Structural Rating
- 34
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 34
Observation photos (3)

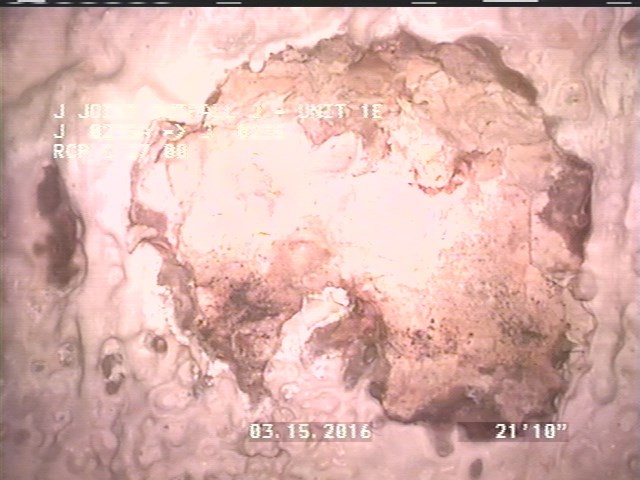

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING LAITANCE COAT

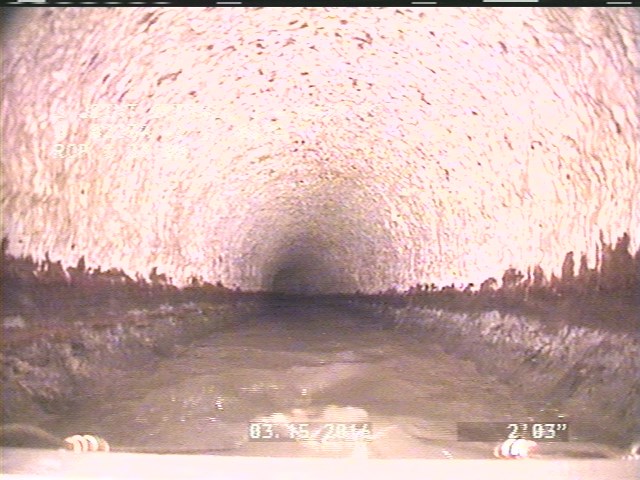

2 ft. - General Observation - MAG COAT 98% START

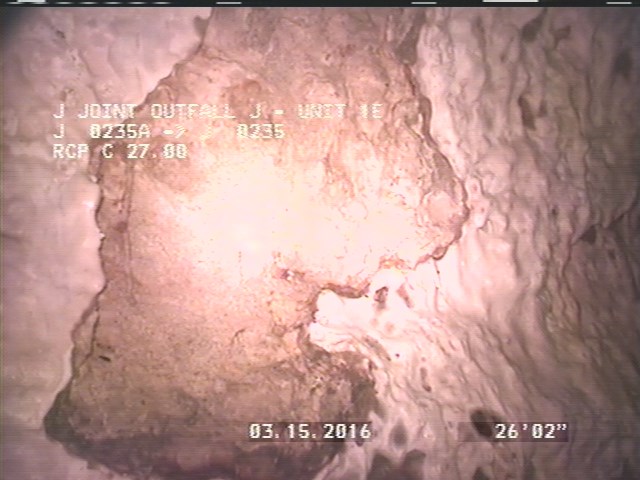

26.2 ft. - Surface Spalling, from 08 to 10 o'clock, within 8 inches of joint: NO
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 82.2 | MGO | MH CONN STUB 9:00 |
| 0 | MWM | — |
| 82.2 | MGO | MH CONN STUB 3:00 |
| 82.2 | SSS | BLISTERING LAITANCE COAT UNDER MAG COAT |
| 82.2 | MGO | MAG COAT 98% FINISH |
| 0 | MWL | — |
| 0 | MGO | MH CONN ACTIVE 3:00 |
| 82.6 | AMH | 1:30AM |
| 0 | AMH | 1:20AM |
| 26.2 | SSS | — |
| 2 | SSS | BLISTERING PEELING LAITANCE COAT |
| 2 | MGO | MAG COAT 98% START |
Properties (6)
- custom_field_three
- SPALLING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-03-15T00:27:31-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
