Wastewater/Activity/PacpInspection/1.0Mar 15, 2016, 07:28 PM
03 0557_C 0345_3152016_131829.mp4
- Date
- 03/15/2016
- W/O
- 0547102
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00132
- PipeID
- P05258
- Time
- 12:28 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0093
- Sewer Name
- C JOINT OUTFALL C - UNIT 6C RENOVATION*
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- 20160315AM_JOINT_OUTFALL_C_UNIT_6C_RENOVATION
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- 03 0557
- Downstream MH
- C 0345
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (4)

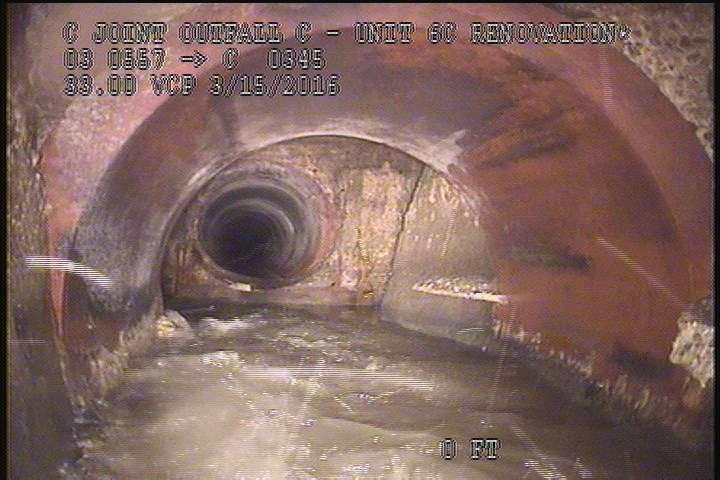

0 ft. - Upstream Manhole, Survey Begins - 1:15 PM

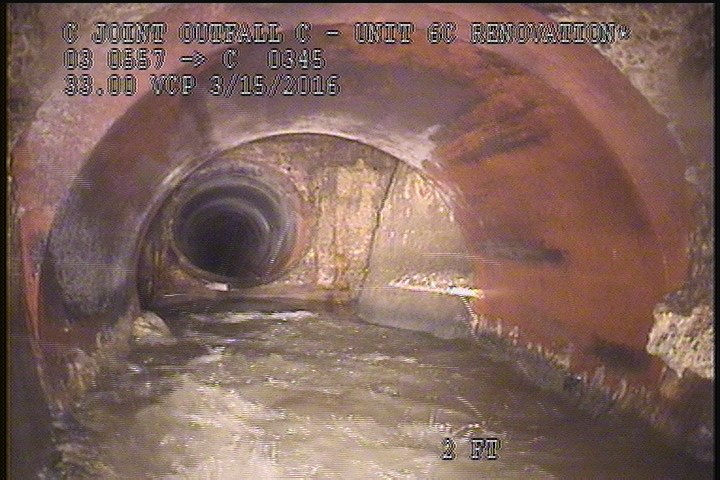

0 ft. - Water Mark, 45 %of cross sectional area

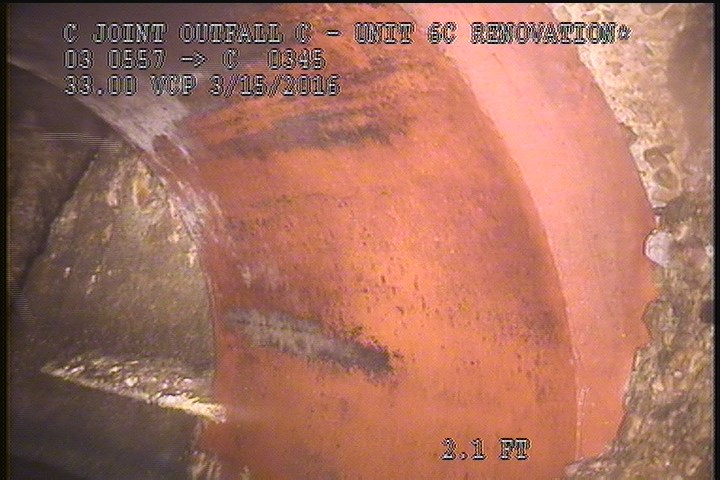

0 ft. - Water Level, 35 %of cross sectional area

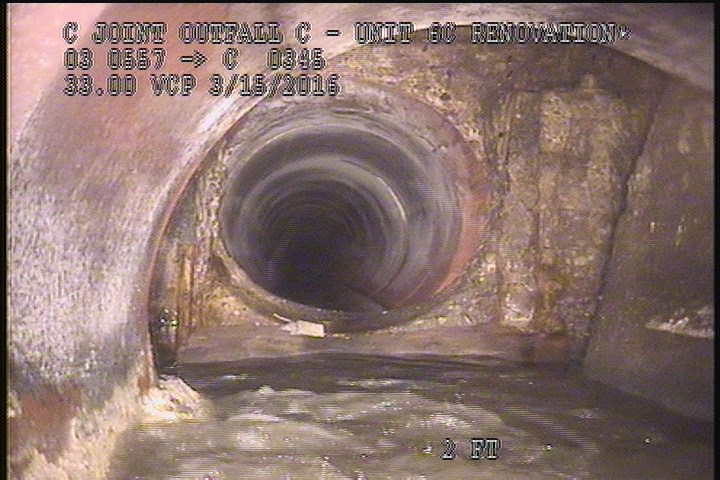

2 ft. - General Observation - ACTIVE CONN. INSIDE THE MH. C 345 @ 12 O'CLOCK
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ROACHES INSIDE THE MH. |
| 2 | MGO | ACTIVE CONN. INSIDE THE MH. C 345 @ 12 O'CLOCK |
| 2 | MGO | SLIGHT GREASE |
| 0 | AMH | 1:15 PM |
| 0 | MWM | — |
| 0 | MGO | ACTIVE CONN. INSIDE THE MH. @ 05 O'CLOCK |
| 2.1 | AMH | ABLE TO SEE MH. C 345 |
| 0 | MWL | — |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-15T12:28:02-07:00
- documentation
- MIRANDA, FRANKLIN, SHADLER
- is_lateral_inspection
- false
