Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 10, 2016, 08:38 AM

  • C 0119_C 0118_3102016_020823.mp4

  • C 0119_C 0118_3102016_022759.mp4

Date
03/10/2016
W/O
0561707
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00127
PipeID
P09639
Time
12:38 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0086
Sewer Name
C JOINT OUTFALL C - UNIT 4B
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
20
Purpose
Routine Assessment
Project
20160310MDM_JOINT_OUTFALL_C_UNIT_4B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
C 0118
Downstream MH
C 0119
Dir. of Survey
Upstream
Length Surveyed
3 ft.
Total Length
3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole C 0118 to C 0119
MH: C 0118MH: C 0119upstream0 ft. MSA - Survey Abandoned - 20% SLUDGE NO FLOW VISIBLE1 ft. MGO - General Observation - SLUDGE & DEBRIE LAYER DOWNSTREAM2 ft. MGO - General Observation - SLUDGE & DEBRIE LAYER UPSTREAM2 ft. MGO - General Observation - SLUDGE & DEBRIE LAYER ON FLOW UPSTREAM2.5 ft. MGO - General Observation - FLOW WAS INCREASED & TRIED MOVING SLUDGE WITH POLE NOTHING WORKED3 ft. MWM - Water Mark, 20 %of cross sectional area3 ft. MGO - General Observation - SLUDGE & DEBRIE LAYER ON FLOW3 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SLUDGE & DEBRIE APPOX 15' LONG3 ft. MWL - Water Level, 20 %of cross sectional area3 ft. AMH - Downstream Manhole, Survey Begins - 1:45AM

Observation photos (4)

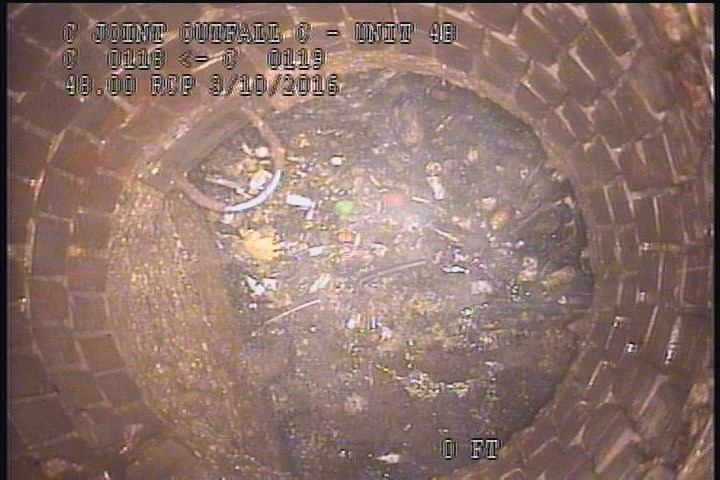

  • General Observation - SLUDGE & DEBRIE LAYER ON FLOW

    0 ft. - General Observation - SLUDGE & DEBRIE LAYER ON FLOW

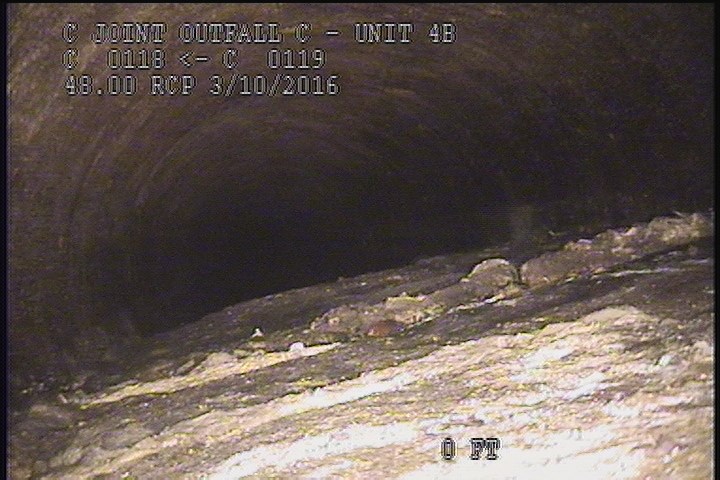

  • General Observation - SLUDGE & DEBRIE LAYER UPSTREAM

    1 ft. - General Observation - SLUDGE & DEBRIE LAYER UPSTREAM

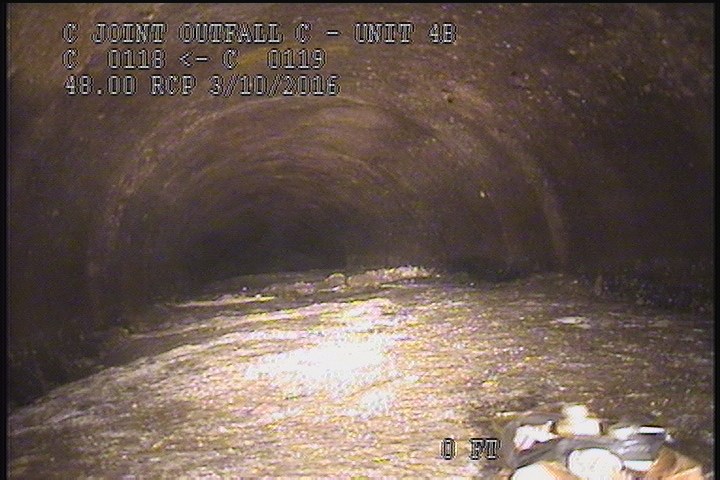

  • General Observation - SLUDGE & DEBRIE LAYER ON FLOW UPSTREAM

    1 ft. - General Observation - SLUDGE & DEBRIE LAYER ON FLOW UPSTREAM

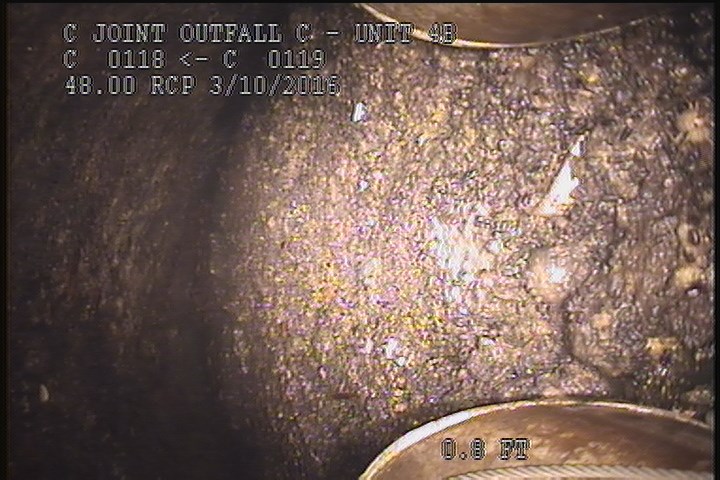

  • General Observation - SLUDGE & DEBRIE LAYER DOWNSTREAM

    2 ft. - General Observation - SLUDGE & DEBRIE LAYER DOWNSTREAM

All inspections of P09639Work order 0561707

Observations (10)

DistanceCodeObservation
0MWM—
0.5MGOFLOW WAS INCREASED & TRIED MOVING SLUDGE WITH POLE NOTHING WORKED
2MGOSLUDGE & DEBRIE LAYER DOWNSTREAM
3MSA20% SLUDGE NO FLOW VISIBLE
0MGOSLUDGE & DEBRIE LAYER ON FLOW
1MGOSLUDGE & DEBRIE LAYER UPSTREAM
1MGOSLUDGE & DEBRIE LAYER ON FLOW UPSTREAM
0DSZSLUDGE & DEBRIE APPOX 15' LONG
0MWL—
0AMH1:45AM

Properties (4)

customer
LACSD
datetime
2016-03-10T00:38:38-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
