Wastewater/Activity/PacpInspection/1.0Mar 9, 2016, 09:35 PM
C 0482_C 0481_392016_133643.mp4
- Date
- 03/09/2016
- W/O
- 0547102
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00132
- PipeID
- P09732
- Time
- 1:35 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7073
- Sewer Name
- C JOINT OUTFALL C - UNIT 6C RENOVATION*
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- 20160309AM_JOINT_OUTFALL_C_UNIT_6C_RENOVATION
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- C 0481
- Downstream MH
- C 0482
- Dir. of Survey
- Upstream
- Length Surveyed
- 545.6 ft.
- Total Length
- 545.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (4)
0 ft. - Downstream Manhole, Survey Begins - 1:35 PM

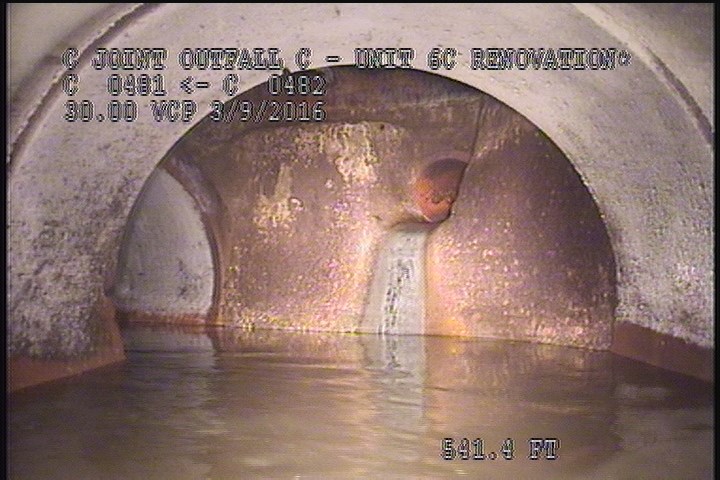

308.3 ft. - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 4" - OPEN

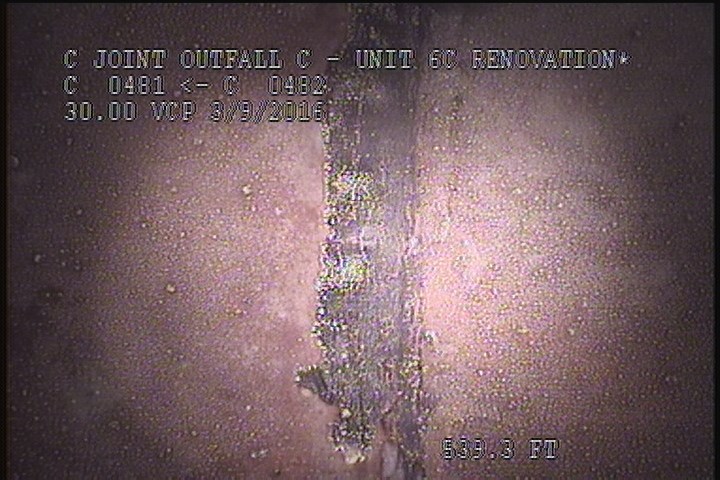

539.3 ft. - General Observation - PEELING JOINT MATERIAL

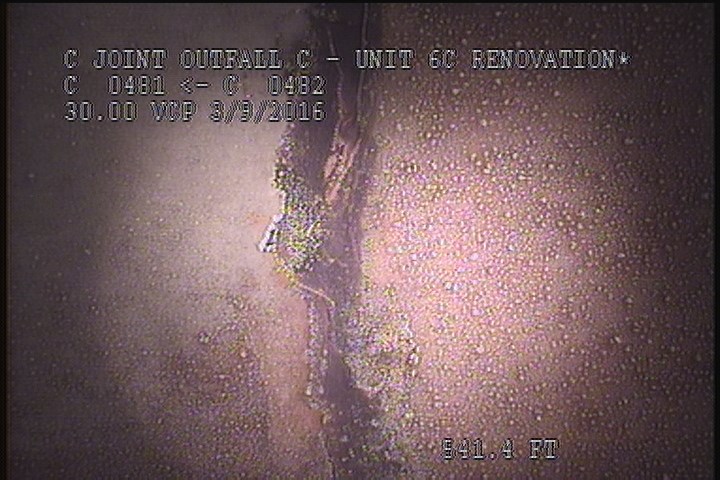

541.4 ft. - General Observation - PEELING JOINT MATERIAL
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 541.4 | MGO | PEELING JOINT MATERIAL |
| 0 | MGO | ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK |
| 226.6 | TFA | — |
| 308.3 | TF | OPEN |
| 0 | MWL | — |
| 0 | AMH | 1:35 PM |
| 544.6 | MGO | ACTIVE CONN. INSIDE THE MH. @ 12 O'CLOCK |
| 539.3 | MGO | PEELING JOINT MATERIAL |
| 0 | MWM | — |
| 545.6 | AMH | 1:58 PM |
| 130.3 | TF | OPEN |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-03-09T13:35:03-08:00
- documentation
- MIRANDA, FRANKLIN, SHADLER, MIRABAL
- is_lateral_inspection
- false
