Wastewater/Activity/PacpInspection/1.0Nov 6, 2020, 04:39 PM
29 0217_29 0216_11062020_085614.mp4
- Date
- 11/06/2020
- W/O
- 860503
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z01116
- PipeID
- P24119
- Time
- 8:39 AM
- Certificate
- U-115-06022794
- System Owner
- 1
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K7395
- Sewer Name
- 29 SPRING STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- RFIR_WO_860503_TV29097_NOV2020
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0217
- Downstream MH
- 29 0216
- Dir. of Survey
- Downstream
- Length Surveyed
- 267.9 ft.
- Total Length
- 267.9 ft.
- Structural Index
- 3
- Structural Quick
- 3424
- Structural Rating
- 20
- O&M Index
- 3
- O&M Quick
- 3200
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 26
Observation photos (3)

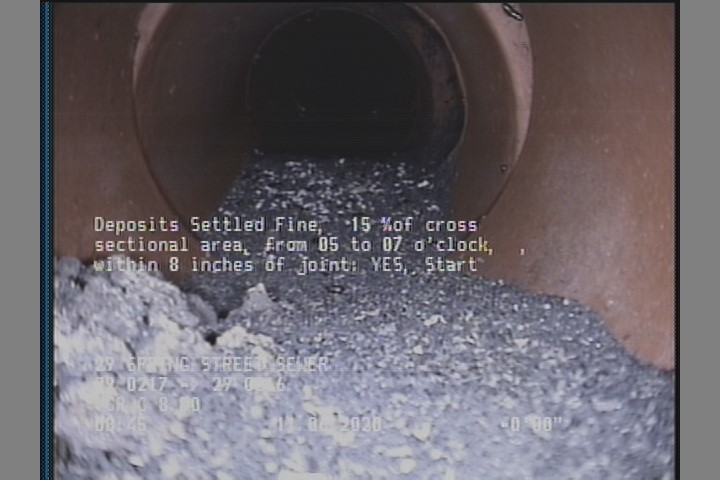

2 ft. - Deposits Settled Fine, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

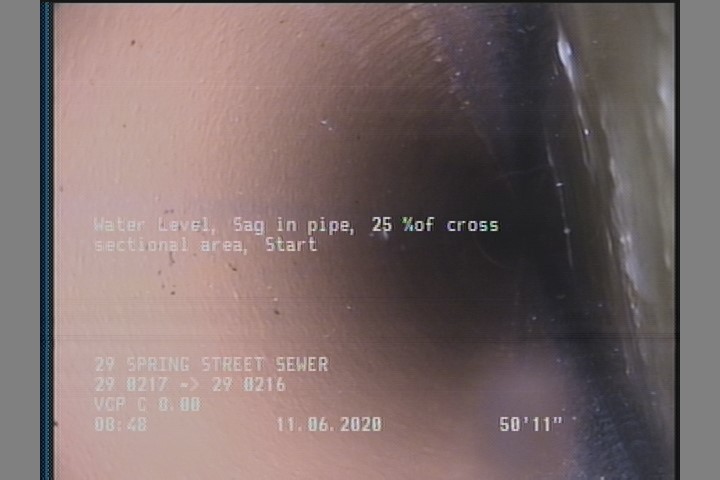

50.9 ft. - Water Level, Sag in pipe, 25 %of cross sectional area, Start

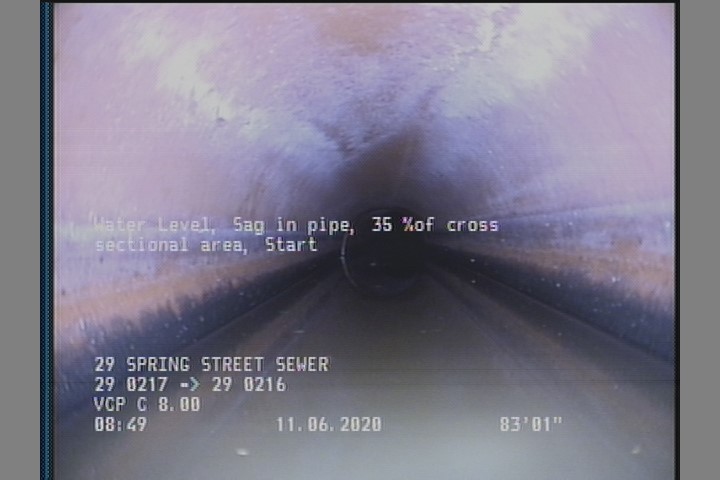

83.1 ft. - Water Level, Sag in pipe, 35 %of cross sectional area, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 83.1 | MWLS | — |
| 10 | TF | — |
| 0 | MWM | — |
| 6.1 | TF | — |
| 0 | MWL | — |
| 2 | DSF | — |
| 267.8 | MGO | CONNECTION AT MH, 3 O'CLOCK |
| 68.8 | MWLS | — |
| 10 | DSF | — |
| 50.9 | MWLS | — |
| 0 | AMH | 29 0217 |
| 267.9 | AMH | 29 0216 |
| 103.1 | MWLS | — |
Properties (6)
- custom_field_three
- SAGS DEBRIS
- custom_field_two
- 3
- customer
- 1
- datetime
- 2020-11-06T08:39:08-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
