Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 29, 2016, 10:51 AM

  • 19 0265_19 0057_7292016_040903.mp4

Date
07/29/2016
W/O
0579970
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00733
PipeID
P15235
Time
3:51 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0210
Sewer Name
19 219TH STREET TRUNK
City
HAWAIIAN GARDENS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
06
Purpose
Routine Assessment
Project
20160727MDM_219TH_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
19 0265
Downstream MH
19 0057
Dir. of Survey
Downstream
Length Surveyed
302.4 ft.
Total Length
302.4 ft.
Structural Index
2
Structural Quick
342B
Structural Rating
44
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
50
Pipe schematic from manhole 19 0265 to 19 0057
MH: 19 0265MH: 19 0057downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:05AM0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area4 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SLIGHT8.4 ft. MGO - General Observation - 12" VCP71.4 ft. MWL - Water Level, 20 %of cross sectional area71.4 ft. MWM - Water Mark, 60 %of cross sectional area106.7 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE106.7 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE115 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE119.1 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H131.2 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H131.2 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H135.3 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H142.8 ft. MGO - General Observation - DROP IN GRADE142.8 ft. MWM - Water Mark, 20 %of cross sectional area142.8 ft. MWL - Water Level, 5 %of cross sectional area147.3 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SLIGHT151.5 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H159 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES163.2 ft. MWL - Water Level, 20 %of cross sectional area163.2 ft. MWM - Water Mark, 40 %of cross sectional area167.7 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H196.3 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H196.7 ft. FC - Fracture Circumferential, from 07 to 08 o'clock, within 8 inches of joint: YES - SLIGHT196.7 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT208.6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT212.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT237.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H274.3 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H282.1 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H286.1 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H302.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active INCOMING302.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active OUT GOING302.2 ft. MGO - General Observation - Conn. @ Mh, 12 O' Clock. STUB302.4 ft. AMH - Downstream Manhole, Survey Ends - 4:55AM

Observation photos (3)

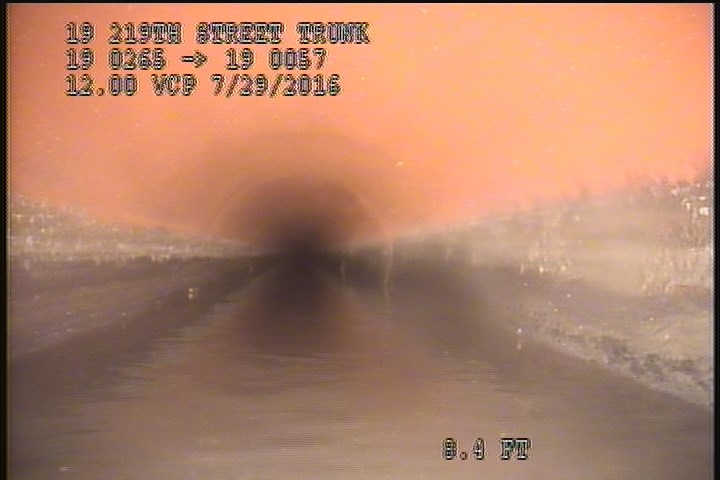

  • General Observation - 12" VCP

    8.4 ft. - General Observation - 12" VCP

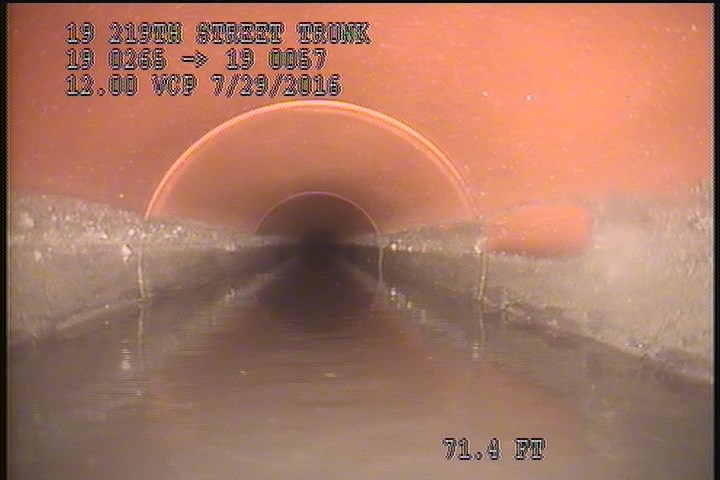

  • Water Mark, 60 %of cross sectional area

    71.4 ft. - Water Mark, 60 %of cross sectional area

  • General Observation - DROP IN GRADE

    142.8 ft. - General Observation - DROP IN GRADE

All inspections of P15235Work order 0579970

Observations (38)

DistanceCodeObservation
302.2MGOConn. @ Mh, 9 O' Clock. Active INCOMING
212.7FCSLIGHT
302.2MGOConn. @ Mh, 3 O' Clock. Active OUT GOING
208.6FCSLIGHT
237.6FLH
8.4MGO12" VCP
142.8MGODROP IN GRADE
4FCSLIGHT
106.7FCHAIRLINE
286.1FCH
115FCHAIRLINE
0AMH4:05AM
196.3FCH
71.4MWL—
131.2FCH
131.2FLH
151.5FCH
142.8MWM—
0MWM—
0MGOConn. @ Mh, 9 O' Clock. Active
0MGOConn. @ Mh, 3 O' Clock. Active
196.7FCSLIGHT
163.2MWL—
71.4MWM—
302.4AMH4:55AM
196.7FCSLIGHT
159DAGS—
147.3FCSLIGHT
163.2MWM—
142.8MWL—
0MWL—
302.2MGOConn. @ Mh, 12 O' Clock. STUB
106.7FCHAIRLINE
119.1FLH
282.1FCH
167.7FLH
274.3FCH
135.3FCH

Properties (6)

custom_field_three
FEW SLIGHT FRACTURES
custom_field_two
4
customer
LACSD
datetime
2016-07-29T03:51:44-07:00
documentation
MARTIN,MANANES,OLIVER 111
is_lateral_inspection
false
