Wastewater/Activity/PacpInspection/1.0Jul 27, 2016, 10:30 AM
08 0130_08 0127_7272016_033443.mp4
- Date
- 07/27/2016
- W/O
- 0574374
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00006
- PipeID
- P00186
- Time
- 3:30 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0207
- Sewer Name
- 08 FIGUEROA STREET TRUNK
- City
- COMPTON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- 20160723MDM_FIGUEROA_STREET_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 08 0130
- Downstream MH
- 08 0127
- Dir. of Survey
- Downstream
- Length Surveyed
- 12.4 ft.
- Total Length
- 12.4 ft.
- Structural Index
- 4
- Structural Quick
- 5121
- Structural Rating
- 7
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

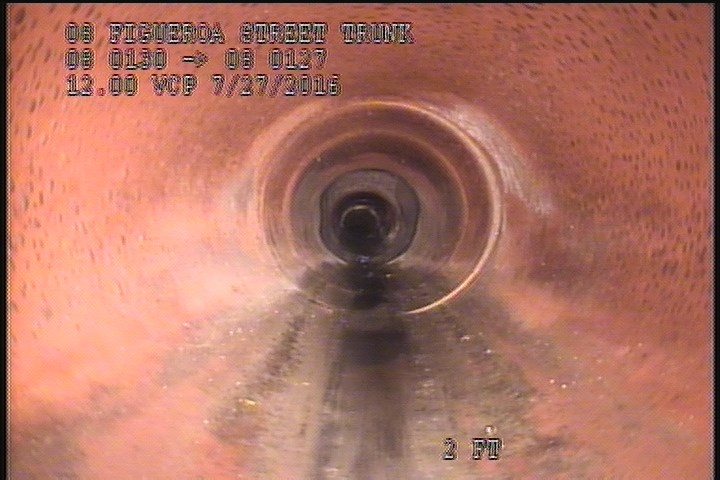

2 ft. - General Observation - 12" VCP

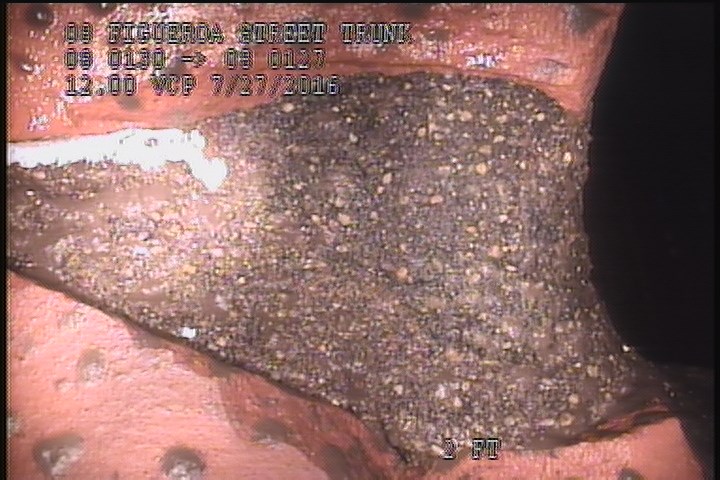

2 ft. - Surface Missing Wall, from 01 to 02 o'clock, within 8 inches of joint: NO - INSIDE MH CONCRETE BACKED

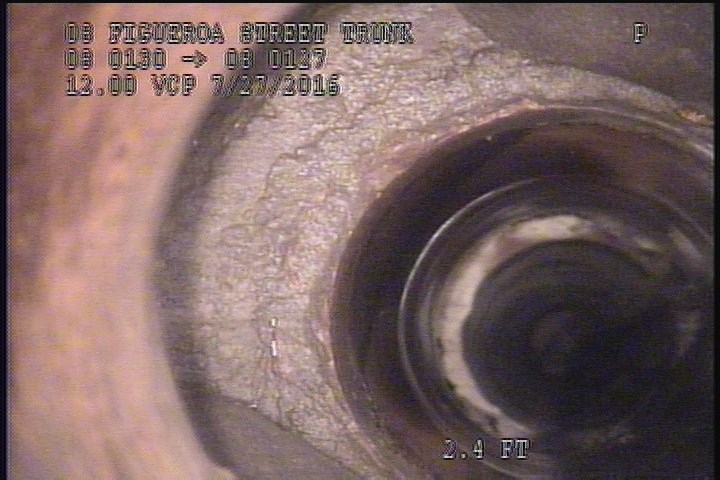

2.4 ft. - General Observation - ZOOM 10'
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MGO | Conn. @ Mh, 3 O' Clock. Capped |
| 2.4 | MGO | ZOOM 10' |
| 2 | MGO | 12" VCP |
| 2 | SMW | INSIDE MH CONCRETE BACKED |
| 12.2 | MGO | Conn. @ Mh, 9 O' Clock. Active LARGE INCOMING |
| 12.2 | MGO | Conn. @ Mh, 3 O' Clock. Active LARGE OUTGOING |
| 2 | FC | SLIGHT |
| 0 | AMH | 3:35AM |
| 0 | MWM | — |
| 12.4 | AMH | 3:45AM |
Properties (6)
- custom_field_three
- MISSING PIPE AREA BACKED BY CONCRETE
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-27T03:30:02-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
