Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 26, 2016, 09:06 AM

  • 08 0136_08 0135_7262016_030149.mp4

Date
07/26/2016
W/O
0574374
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00006
PipeID
P00192
Time
2:06 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0204
Sewer Name
08 FIGUEROA STREET TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
01
Purpose
Routine Assessment
Project
20160723MDM_FIGUEROA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
08 0136
Downstream MH
08 0135
Dir. of Survey
Downstream
Length Surveyed
402.1 ft.
Total Length
402.1 ft.
Structural Index
2
Structural Quick
372F
Structural Rating
93
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
97
Pipe schematic from manhole 08 0136 to 08 0135
MH: 08 0136MH: 08 0135downstream0 ft. MGO - General Observation - HOT OILY FLOW0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 2:55AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area34.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - HAIRLINE34.9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE38.8 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H67.3 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H67.3 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H75.3 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - MODERATE75.5 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SLIGHT76.2 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open82.1 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SLIGHT82.1 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H82.4 ft. FC - Fracture Circumferential, from 08 to 01 o'clock, within 8 inches of joint: YES - H82.4 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H110.3 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H127.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped137.3 ft. MGO - General Observation - 12" VCP141.5 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H149.4 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - H163.2 ft. DAGS - Deposits Attached Grease, 3 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES177.9 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT177.9 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - SLIGHT178.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE180.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H192.9 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT200.6 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SLIGHT210 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped228.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped230.5 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SLIGHT238.9 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SLIGHT254.6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT259.3 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - SLIGHT263 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SLIGHT271.3 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H271.3 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT279.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped306.3 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SLIGHT306.3 ft. MGO - General Observation - CONTUNED NEXT CLIP322.3 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H322.3 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT331.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped337 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SLIGHT341.1 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H345 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SLIGHT345 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H345 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SLIGHT353.4 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H353.4 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SLIGHT354.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped364.1 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT364.1 ft. RFB - Roots Fine Barrell, from 10 to 02 o'clock, within 8 inches of joint: YES - 4%380.3 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H380.3 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT380.3 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H381 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped386.7 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT391 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H394.7 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES - H402.1 ft. AMH - Downstream Manhole, Survey Ends - 4:05AM

Observation photos (2)

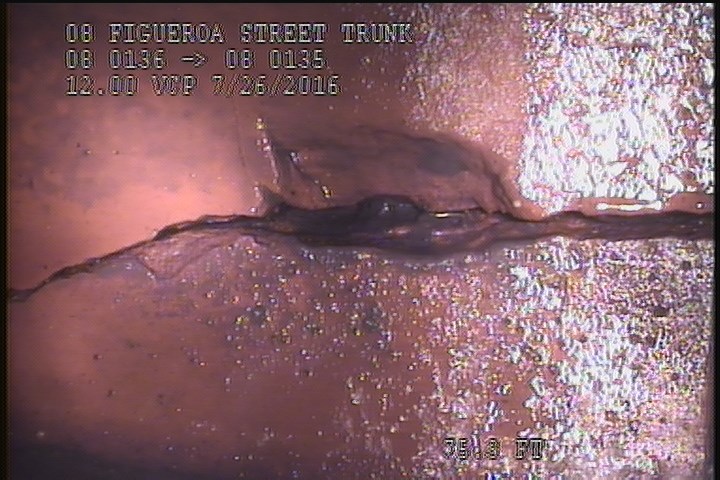

  • Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - MODERATE

    75.3 ft. - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - MODERATE

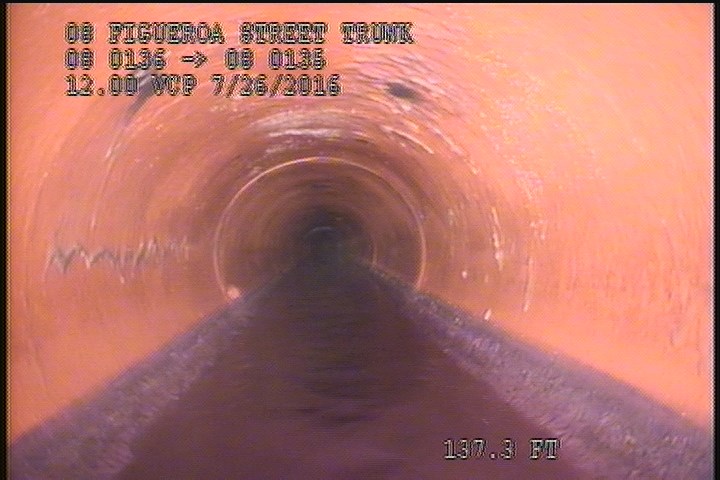

  • General Observation - 12" VCP

    137.3 ft. - General Observation - 12" VCP

All inspections of P00192Work order 0574374

Observations (62)

DistanceCodeObservation
380.3FCH
341.1FCH
238.9FCSLIGHT
394.7FLH
230.5FCSLIGHT
34.9FLHAIRLINE
177.9FCSLIGHT
210TFCCapped
67.3FCH
271.3FCH
0MGOHOT OILY FLOW
38.8FCH
354.4TFCCapped
279.8TFCCapped
200.6FCSLIGHT
34.9FLHAIRLINE
259.3FCSLIGHT
178.9TFACTIVE
0MGOConn. @ Mh, 3 O' Clock. Active
163.2DAGS—
331.4TFCCapped
263FLSLIGHT
337FCSLIGHT
67.3FCH
82.4FCH
380.3FCSLIGHT
110.3FCH
76.2TFOpen
82.1FCSLIGHT
306.3FCSLIGHT
137.3MGO12" VCP
0AMH2:55AM
254.6FCSLIGHT
82.1FCH
364.1FCSLIGHT
345FLSLIGHT
402.1AMH4:05AM
0MWM—
353.4FCH
345FCH
0MWL—
380.3FLH
192.9FCSLIGHT
141.5FCH
353.4FCSLIGHT
306.3MGOCONTUNED NEXT CLIP
381TFCCapped
149.4FCH
386.7FCSLIGHT
322.3FCH
228.7TFCCapped
345FCSLIGHT
75.3FCMODERATE
82.4FCH
364.1RFB4%
322.3FCSLIGHT
391FCH
180.6FCH
271.3FCSLIGHT
127.4TFCCapped
75.5FLSLIGHT
177.9FCSLIGHT

Properties (6)

custom_field_three
MODERATE FRACTURE CIRCUM
custom_field_two
2
customer
LACSD
datetime
2016-07-26T02:06:01-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
