Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 22, 2016, 07:46 AM

  • 16 0169_16 0168_7222016_031438.mp4

Date
07/22/2016
W/O
0580100
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00648
PipeID
P13201
Time
12:46 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0199
Sewer Name
16 ARROYO SECO TRUNK, SECTION 5
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20160722MDM_ARROYO_SECO_TRUNK_SECTION_5
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Upstream MH
16 0169
Downstream MH
16 0168
Dir. of Survey
Downstream
Length Surveyed
347.7 ft.
Total Length
347.7 ft.
Structural Index
3
Structural Quick
4133
Structural Rating
19
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
19
Pipe schematic from manhole 16 0169 to 16 0168
MH: 16 0169MH: 16 0168downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:55AM2.3 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT9.1 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start - SLIGHT27.7 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish - SLIGHT40 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS40 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS40 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS40 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS79.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, - SLIGHT125.8 ft. RPP - Repair Patch, at 12 o'clock, within 8 inches of joint: YES - 1" X1" POSSIBLE REPAIR341.9 ft. MGP - General Photograph - SEALED JOINT347.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 40% SLIGHT347.3 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 30% HAIRLINE347.3 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 30% SLIGHT347.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 50% HAIRLINE347.7 ft. AMH - Downstream Manhole, Survey Ends - 3:45AM

Observation photos (3)

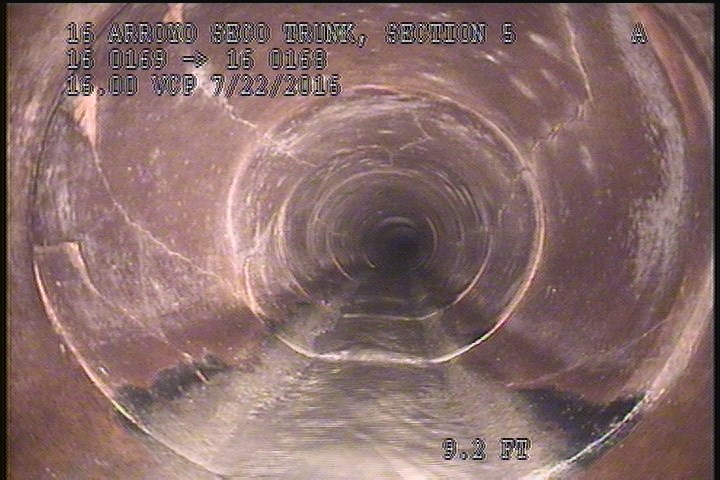

  • Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    9.1 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start - SLIGHT

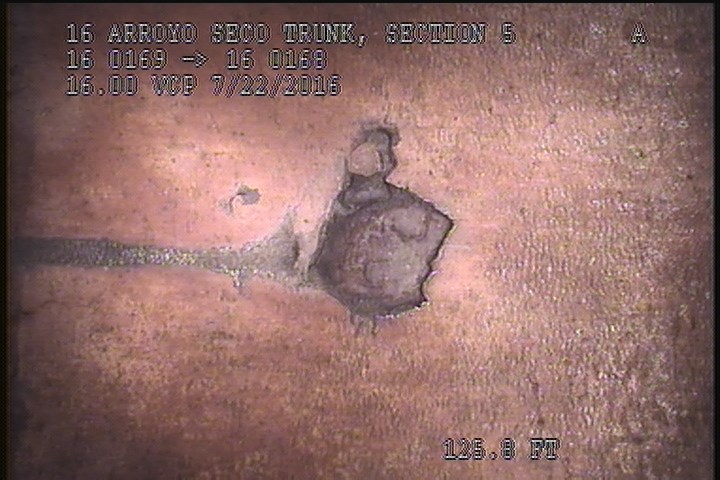

  • Repair Patch, at 12 o'clock, within 8 inches of joint: YES - 1" X1" POSSIBLE REPAIR

    125.8 ft. - Repair Patch, at 12 o'clock, within 8 inches of joint: YES - 1" X1" POSSIBLE REPAIR

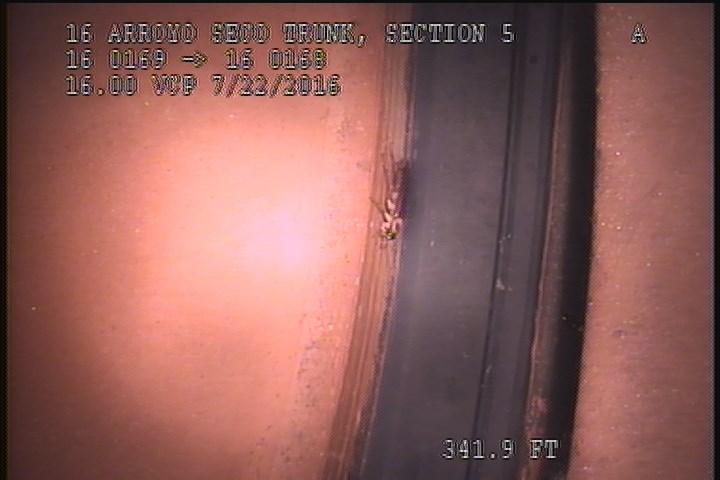

  • General Photograph - SEALED JOINT

    341.9 ft. - General Photograph - SEALED JOINT

All inspections of P13201Work order 0580100

Observations (18)

DistanceCodeObservation
9.1FMSLIGHT
0MWL—
0MWM—
341.9MGPSEALED JOINT
2.3FCSLIGHT
347.3FC40% SLIGHT
347.3FL30% HAIRLINE
125.8RPP1" X1" POSSIBLE REPAIR
40FLHAIRLINE AT JOINTS
0AMH2:55AM
79.2FLSLIGHT
347.3FL30% SLIGHT
40FLSLIGHT AT JOINTS
40FCHAIRLINE AT JOINTS
40FCSLIGHT AT JOINTS
27.7FMSLIGHT
347.7AMH3:45AM
347.3FC50% HAIRLINE

Properties (6)

custom_field_three
MULTIPLE SLIGHT FRACTURES JOINT TO JONT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-07-22T00:46:17-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
