Wastewater/Activity/PacpInspection/1.0Jul 26, 2016, 03:09 PM
29 0812_29 0811_7262016_083438.mp4
- Date
- 07/26/2016
- W/O
- 0579968
- Weather
- Very Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00537
- PipeID
- P25562
- Time
- 8:09 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7188
- Sewer Name
- 29 21ST STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- 20160721AM_21ST_STREET_SEWER
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0812
- Downstream MH
- 29 0811
- Dir. of Survey
- Downstream
- Length Surveyed
- 91.2 ft.
- Total Length
- 91.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

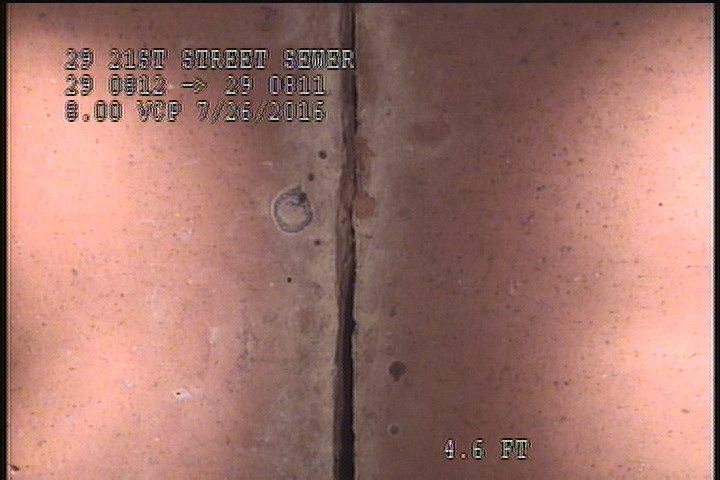

4.6 ft. - General Observation - CHIPPING ALL AROUND THE JOINT, POSSIBLE BROKEN PIPE

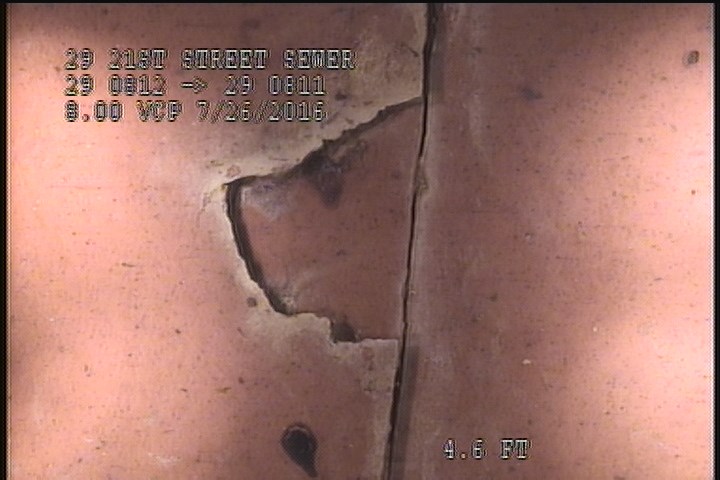

4.6 ft. - Broken, at 12 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 4.6 | MGO | CHIPPING ALL AROUND THE JOINT, POSSIBLE BROKEN PIPE |
| 0 | MWL | — |
| 56.8 | TF | OPEN |
| 4.6 | B | — |
| 91.2 | AMH | 8:43 AM |
| 0 | MWM | — |
| 0 | MGO | ROACHES INSIDE THE MH. |
| 90 | MGO | ROACHES INSIDE THE MH. |
| 0 | AMH | 8:34 AM |
Properties (6)
- custom_field_three
- BROKEN PIPE
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2016-07-26T08:09:02-07:00
- documentation
- MIRANDA, FRANKLIN, SHADLER
- is_lateral_inspection
- false
