Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 21, 2016, 08:05 AM

  • B 0465_B 0464_7212016_011349.mp4

Date
07/21/2016
W/O
0585142
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00094
PipeID
P08978
Time
1:05 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0196R
Sewer Name
B JOINT OUTFALL B - UNIT 5D
City
ALTADENA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
06
Purpose
Maintenance Related
Project
20160719MDM_JOINT_OUTFALL_B_UNIT_5D
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
B 0464
Downstream MH
B 0465
Dir. of Survey
Upstream
Length Surveyed
390.5 ft.
Total Length
390.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4131
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole B 0464 to B 0465
MH: B 0464MH: B 0465upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:45AM98.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active171.6 ft. MGO - General Observation - 18" NRCP171.6 ft. RMJ - Roots Medium Joint, from 03 to 05 o'clock, 5 %, within 8 inches of joint: YESR225.3 ft. RFJ - Roots Fine Joint, from 01 to 04 o'clock, within 8 inches of joint: YESR - 3%390.5 ft. MGO - General Observation - START MH#463A -136'390.5 ft. MGO - General Observation - POST ROOT CCTV390.5 ft. MWL - Water Level, 50 %of cross sectional area390.5 ft. AMH - Downstream Manhole, Survey Begins - 1:10AM390.5 ft. MWM - Water Mark, 50 %of cross sectional area

Observation photos (2)

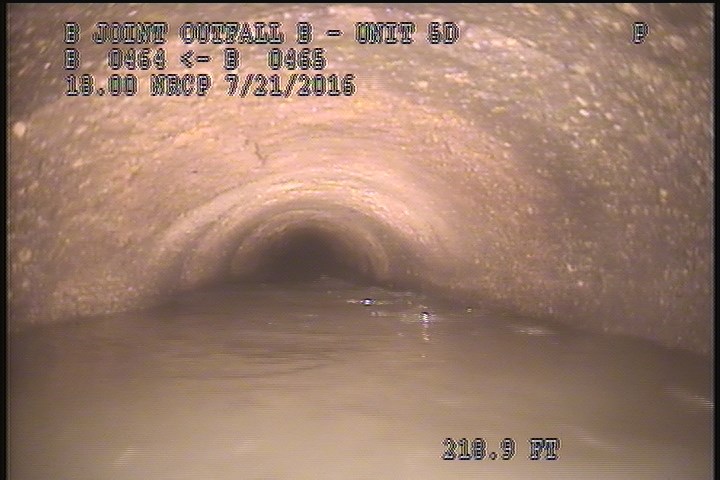

  • General Observation - 18" NRCP

    218.9 ft. - General Observation - 18" NRCP

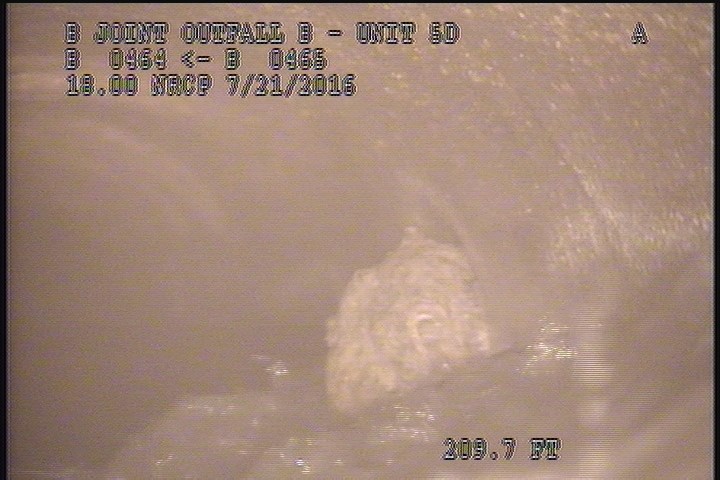

  • Roots Medium Joint, from 03 to 05 o'clock, 5 %, within 8 inches of joint: YESR

    218.9 ft. - Roots Medium Joint, from 03 to 05 o'clock, 5 %, within 8 inches of joint: YESR

All inspections of P08978Work order 0585142

Observations (10)

DistanceCodeObservation
218.9MGO18" NRCP
165.2RFJ3%
0MGOSTART MH#463A -136'
0MGOPOST ROOT CCTV
0MWL—
390.5AMH1:45AM
0AMH1:10AM
218.9RMJ—
292TFActive
0MWM—

Properties (5)

additional_info
POST ROOT CCTV
customer
LACSD
datetime
2016-07-21T01:05:15-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
