Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 19, 2016, 11:07 AM

  • B 0470_B 0469_7192016_050637.mp4

Date
07/19/2016
W/O
0585142
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00094
PipeID
P08990
Time
4:07 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0193R
Sewer Name
B JOINT OUTFALL B - UNIT 5D
City
ALTADENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
06
Purpose
Maintenance Related
Project
20160719MDM_JOINT_OUTFALL_B_UNIT_5D
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
B 0470
Downstream MH
B 0469
Dir. of Survey
Downstream
Length Surveyed
123.7 ft.
Total Length
123.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
413A
O&M Rating
35
Overall Index
3
Overall Quick
—
Overall Rating
35
Pipe schematic from manhole B 0470 to B 0469
MH: B 0470MH: B 0469downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:05AM0 ft. MGO - General Observation - POST ROOT CCTV1.8 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 5 %, within 8 inches of joint: YESR15.4 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 10 %, within 8 inches of joint: YESR33.8 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 5 %, within 8 inches of joint: YESR42.7 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR55.9 ft. RMJ - Roots Medium Joint, from 08 to 11 o'clock, 5 %, within 8 inches of joint: YESR65.2 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 5 %, within 8 inches of joint: YESR80.1 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 4%86.4 ft. RMJ - Roots Medium Joint, from 08 to 11 o'clock, 5 %, within 8 inches of joint: YESR93.9 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR100.1 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR109.3 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR123.7 ft. AMH - Downstream Manhole, Survey Ends - 5:15AM

Observation photos (2)

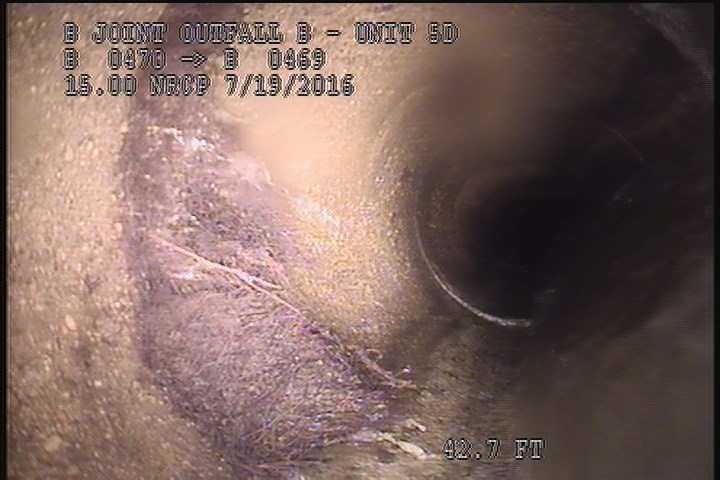

  • Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR

    42.7 ft. - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR

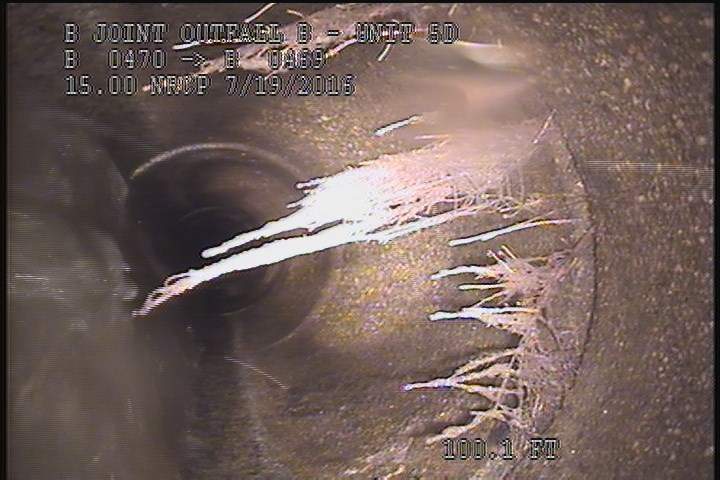

  • Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR

    100.1 ft. - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR

All inspections of P08990Work order 0585142

Observations (16)

DistanceCodeObservation
0MWL—
15.4RMJ—
0MWM—
109.3RMJ—
0AMH5:05AM
42.7RMJ—
80.1RFJ4%
0MGOPOST ROOT CCTV
93.9RMJ—
33.8RMJ—
65.2RMJ—
86.4RMJ—
1.8RMJ—
100.1RMJ—
123.7AMH5:15AM
55.9RMJ—

Properties (5)

additional_info
POST ROOT CCTV
customer
LACSD
datetime
2016-07-19T04:07:39-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
