Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 15, 2016, 08:10 AM

  • B 1273_B 1272_7152016_052313.mp4

Date
07/15/2016
W/O
0574359
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01126
PipeID
P25168
Time
1:10 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0188
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
12
Purpose
Capital Improvement Program Assesment
Project
20160715MDM_JOINT_OUTFALL_B_UNIT_6J
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
B 1273
Downstream MH
B 1272
Dir. of Survey
Downstream
Length Surveyed
346.9 ft.
Total Length
346.9 ft.
Structural Index
3
Structural Quick
3321
Structural Rating
11
O&M Index
1
O&M Quick
2213
O&M Rating
7
Overall Index
2
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole B 1273 to B 1272
MH: B 1273MH: B 1272downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:20AM2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG UNDER MAG COAT SPORATIC2 ft. MGO - General Observation - MAG COAT 100% 8:00 TO 4:00 START44.2 ft. MWM - Water Mark, 40 %of cross sectional area44.2 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Start - ROCKS77 ft. MWLS - Water Level, Sag in pipe, 20 %of cross sectional area77 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO, Finish - ROCKS77 ft. SAP - Surface Aggregate Projecting, from 08 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG UNDER MAG COAT151.1 ft. RFJ - Roots Fine Joint, from 01 to 04 o'clock, within 8 inches of joint: YESR - 5%171.5 ft. RFJ - Roots Fine Joint, from 11 to 04 o'clock, within 8 inches of joint: YESR - 3%186.7 ft. RFJ - Roots Fine Joint, from 11 to 04 o'clock, within 8 inches of joint: YESR - 5%226.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG UNDER MAG COAT280.5 ft. MGP - General Photograph325.7 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - ROCK346.6 ft. MGO - General Observation - MAG COAT 100% FINISH346.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG UNDER MAG COAT SPORATIC346.9 ft. AMH - Downstream Manhole, Survey Ends - 5:40AM

Observation photos (5)

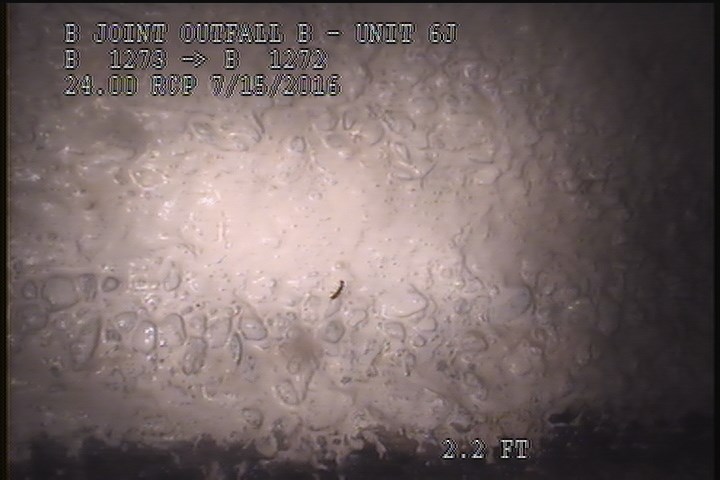

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG UNDER MAG COAT SPORATIC

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG UNDER MAG COAT SPORATIC

  • General Observation - MAG COAT 100% 8:00 TO 4:00 START

    2 ft. - General Observation - MAG COAT 100% 8:00 TO 4:00 START

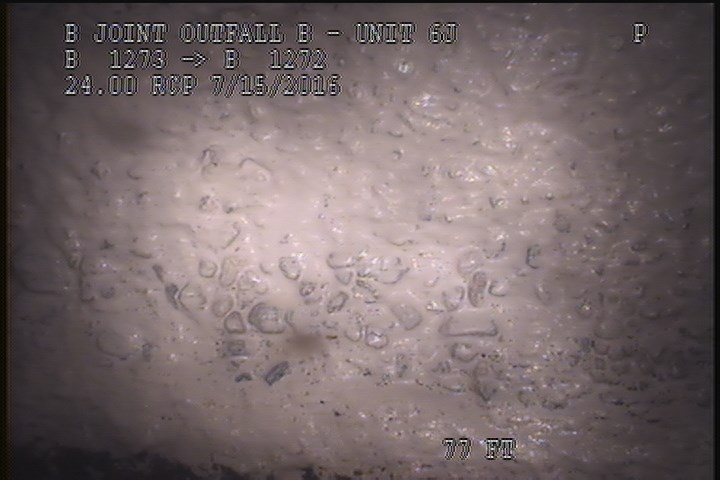

  • Surface Aggregate Projecting, from 08 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG UNDER MAG COAT

    77 ft. - Surface Aggregate Projecting, from 08 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG UNDER MAG COAT

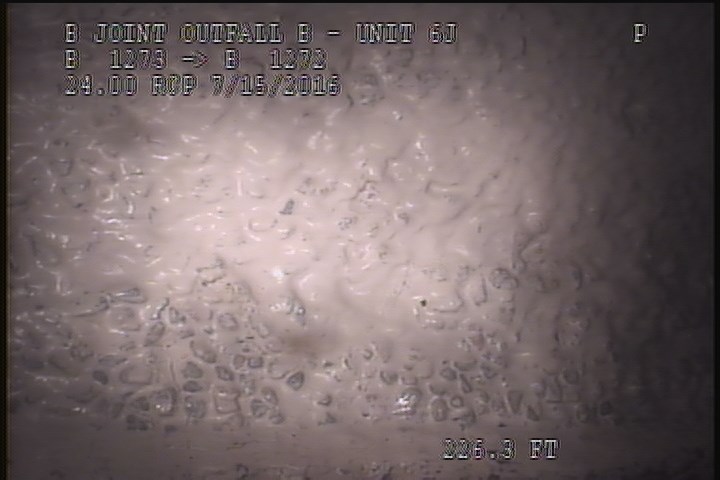

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG UNDER MAG COAT

    226.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG UNDER MAG COAT

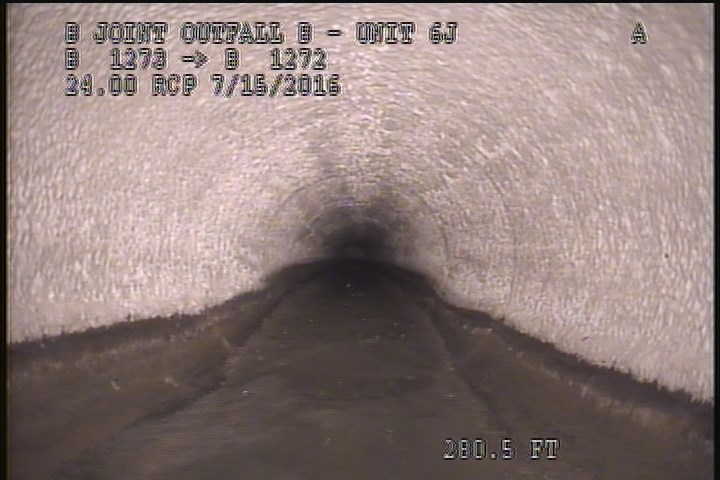

  • General Photograph

    280.5 ft. - General Photograph

All inspections of P25168Work order 0574359

Observations (19)

DistanceCodeObservation
325.7DSZROCK
0MWM—
77MWLS—
77DSZROCKS
346.9AMH5:40AM
44.2MWM—
2SAPSEVERE AGG UNDER MAG COAT SPORATIC
151.1RFJ5%
2MGOMAG COAT 100% 8:00 TO 4:00 START
171.5RFJ3%
0MWL—
44.2DSZROCKS
346.6MGOMAG COAT 100% FINISH
186.7RFJ5%
226.3SAPSEVERE AGG UNDER MAG COAT
346.6SAPSEVERE AGG UNDER MAG COAT SPORATIC
0AMH5:20AM
280.5MGP—
77SAPSEVERE AGG UNDER MAG COAT

Properties (6)

custom_field_three
SEVERE AGG - 100% MAG COAT
custom_field_two
3
customer
LACSD
datetime
2016-07-15T01:10:29-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
