Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 15, 2016, 08:09 AM

  • B 1274_B 1273_7152016_050803.mp4

Date
07/15/2016
W/O
0574359
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01126
PipeID
P25169
Time
1:09 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0188
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
12
Purpose
Capital Improvement Program Assesment
Project
20160715MDM_JOINT_OUTFALL_B_UNIT_6J
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
B 1274
Downstream MH
B 1273
Dir. of Survey
Downstream
Length Surveyed
168.9 ft.
Total Length
168.9 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole B 1274 to B 1273
MH: B 1274MH: B 1273downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:00AM2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG UNDER MAG COAT SPORATIC2 ft. MGO - General Observation - MAG COAT 100% 8:00 TO 4:00 START6 ft. RFJ - Roots Fine Joint, from 03 to 04 o'clock, within 8 inches of joint: YESR - 4%101.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG UNDER MAG COAT101.2 ft. MGP - General Photograph168.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG UNDER MAG COAT SPORATIC168.6 ft. MGO - General Observation - MAG COAT 100% FINISH168.9 ft. AMH - Downstream Manhole, Survey Ends - 5:15AM

Observation photos (4)

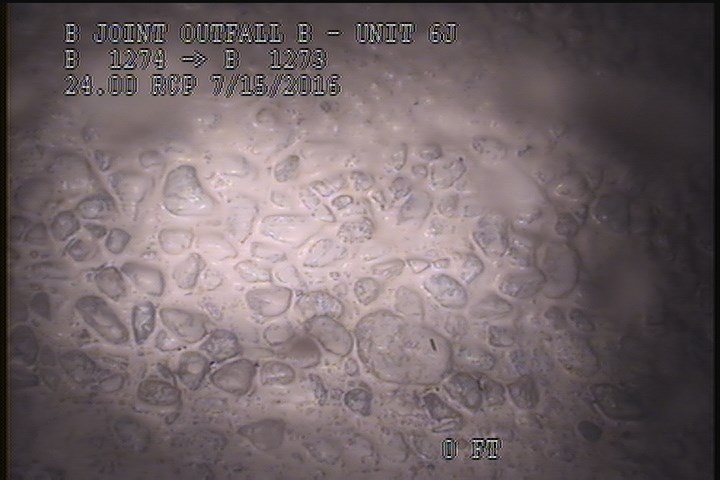

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG UNDER MAG COAT SPORATIC

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG UNDER MAG COAT SPORATIC

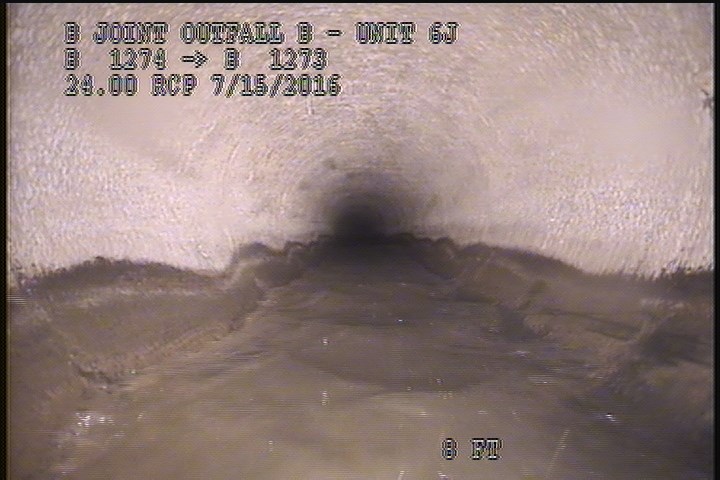

  • General Observation - MAG COAT 100% 8:00 TO 4:00 START

    2 ft. - General Observation - MAG COAT 100% 8:00 TO 4:00 START

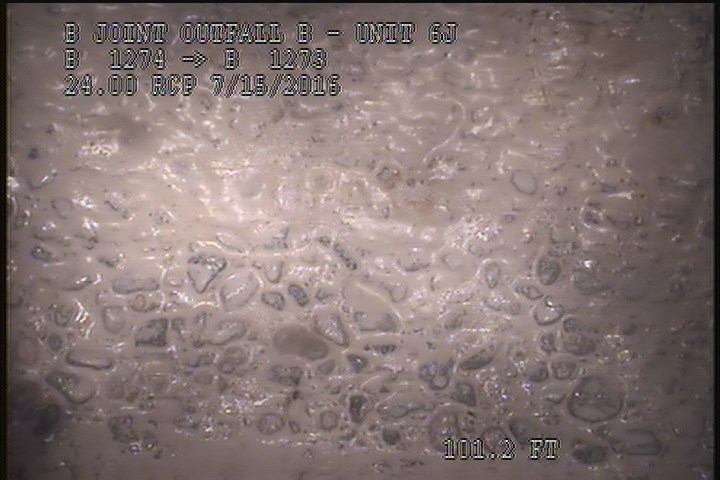

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG UNDER MAG COAT

    101.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG UNDER MAG COAT

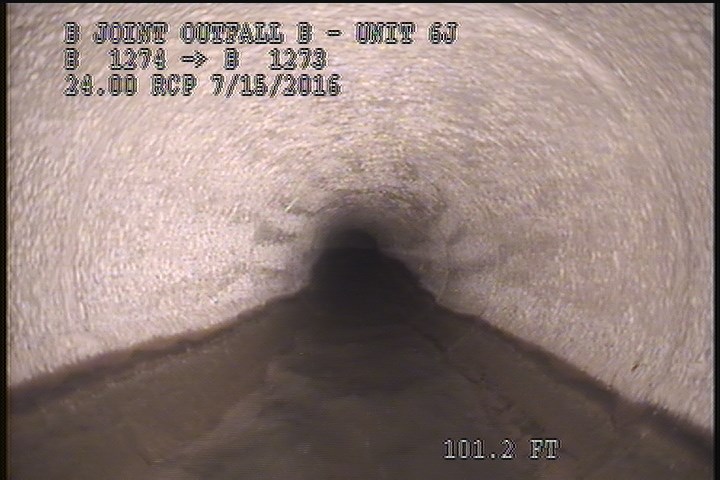

  • General Photograph

    101.2 ft. - General Photograph

All inspections of P25169Work order 0574359

Observations (11)

DistanceCodeObservation
168.6SAPSEVERE AGG UNDER MAG COAT SPORATIC
101.2SAPSEVERE AGG UNDER MAG COAT
6RFJ4%
101.2MGP—
168.9AMH5:15AM
2SAPSEVERE AGG UNDER MAG COAT SPORATIC
168.6MGOMAG COAT 100% FINISH
0MWM—
0MWL—
2MGOMAG COAT 100% 8:00 TO 4:00 START
0AMH5:00AM

Properties (6)

custom_field_three
SEVERE AGG - 100% MAG COAT
custom_field_two
3
customer
LACSD
datetime
2016-07-15T01:09:34-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
