Wastewater/Activity/PacpInspection/1.0Jul 15, 2016, 08:03 AM
B 1277_B 1276_7152016_025507.mp4
- Date
- 07/15/2016
- W/O
- 0574359
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01126
- PipeID
- P25172
- Time
- 1:03 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0187
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J
- City
- PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 12
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160715MDM_JOINT_OUTFALL_B_UNIT_6J
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- B 1277
- Downstream MH
- B 1276
- Dir. of Survey
- Downstream
- Length Surveyed
- 43.7 ft.
- Total Length
- 43.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

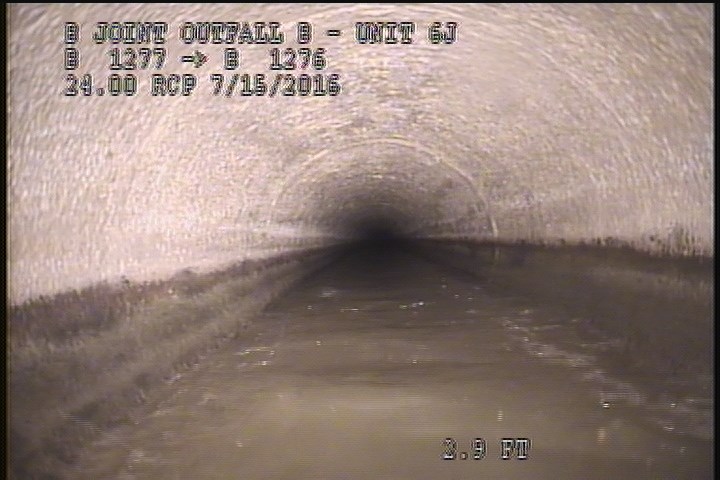

2 ft. - General Observation - MAG COAT 100% 9:00 TO 3:00

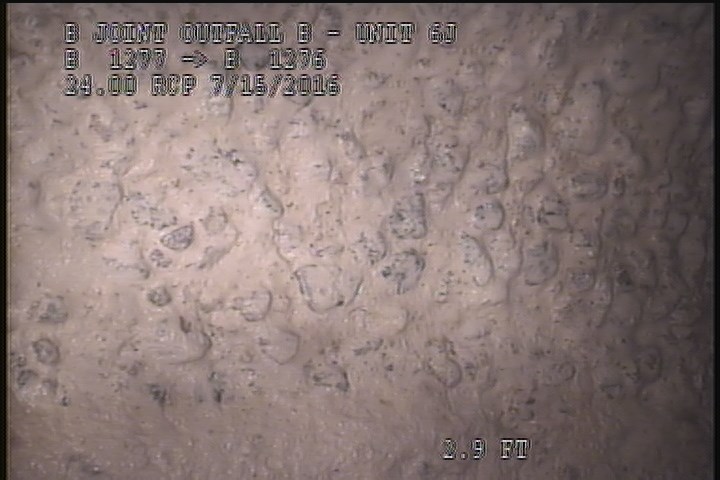

2.9 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG UNDER MAG COAT
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 43.3 | SAP | — |
| 0 | MWL | — |
| 43.3 | MWL | — |
| 43.7 | MSA | ROCK 5% -WILL COMPLETE REVERSE |
| 0 | AMH | 12:50AM |
| 41.5 | DSZ | ROCK |
| 2 | MGO | MAG COAT 100% 9:00 TO 3:00 |
| 2.9 | SAP | SEVERE AGG UNDER MAG COAT |
Properties (6)
- custom_field_three
- SEVERE AGG - 100% MAG COAT
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-07-15T01:03:00-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
