Wastewater/Activity/PacpInspection/1.0Jul 19, 2016, 03:30 PM
29 0811_29 0809_7192016_102012.mp4
- Date
- 07/19/2016
- W/O
- 0579968
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00537
- PipeID
- P25561
- Time
- 8:30 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7183
- Sewer Name
- 29 21ST STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- 20160715AM_21ST_STREET_SEWER
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0809
- Downstream MH
- 29 0811
- Dir. of Survey
- Upstream
- Length Surveyed
- 160.6 ft.
- Total Length
- 160.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

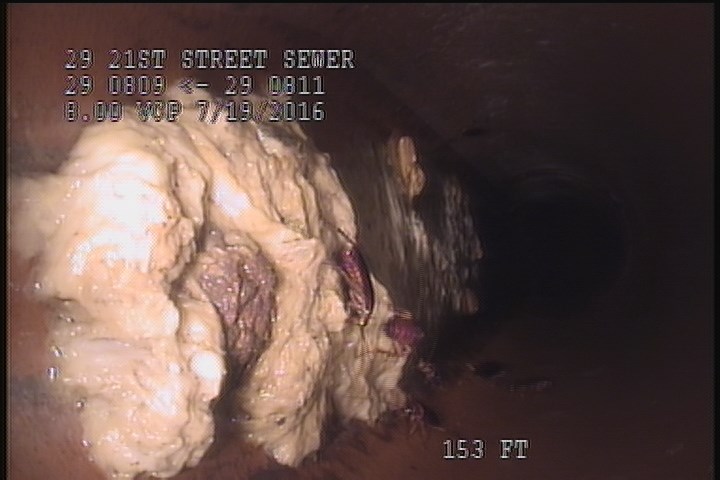

153 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 160.6 | AMH | 10:38 AM |
| 158.5 | DAGS | — |
| 0 | MGO | ROACHES INSIDE THE MH. |
| 0 | MWM | — |
| 0 | MWL | — |
| 159 | MGO | ROACHES INSIDE THE MH. |
| 0 | AMH | 10:17 AM |
| 153 | DAGS | — |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-19T08:30:51-07:00
- documentation
- MIRANDA, FRANKLIN, IGNACIO
- is_lateral_inspection
- false
