Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 14, 2016, 03:48 PM

  • 29 0530_29 0529A_7142016_094733.mp4

Date
07/14/2016
W/O
0574371
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z01106
PipeID
P24585
Time
8:48 AM
Certificate
U-115-06022628
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7181
Sewer Name
29 19TH STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
20160714MI_19TH_STREET_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0530
Downstream MH
29 0529A
Dir. of Survey
Downstream
Length Surveyed
82.3 ft.
Total Length
82.3 ft.
Structural Index
3
Structural Quick
3721
Structural Rating
23
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
23
Pipe schematic from manhole 29 0530 to 29 0529A
MH: 29 0530MH: 29 0529Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 09:46AM0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH, 9 OCLOCK, UNKNOWN0 ft. MGO - General Observation - ROACHES > 50 AT MH5 ft. CM - Crack Multiple, from 09 to 10 o'clock, within 8 inches of joint: YES9.9 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES15.6 ft. CS - Crack Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES22 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: NO25 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: NO30.3 ft. CM - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: NO42.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: NO60.8 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: NO79.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"80.1 ft. AMH - Downstream Manhole, Survey Ends - POSSIBLE LAMP HOLE82.3 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"

Observation photos (3)

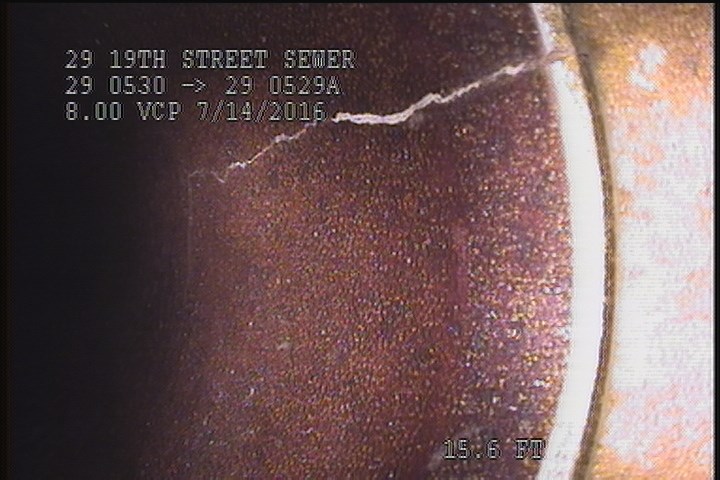

  • Crack Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES

    15.6 ft. - Crack Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES

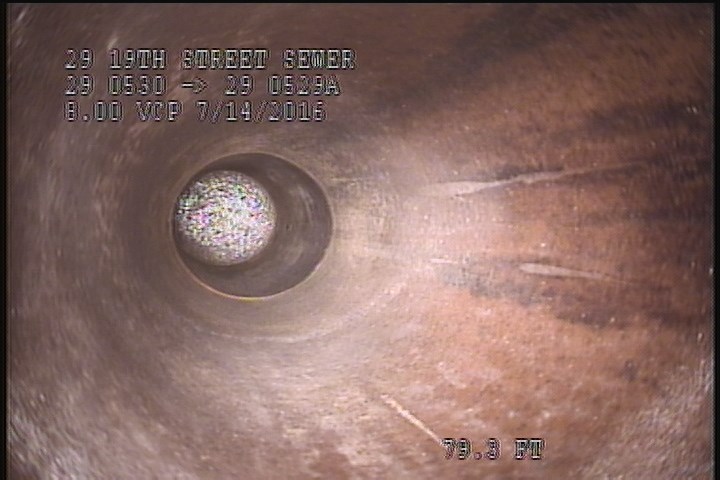

  • Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"

    79.3 ft. - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"

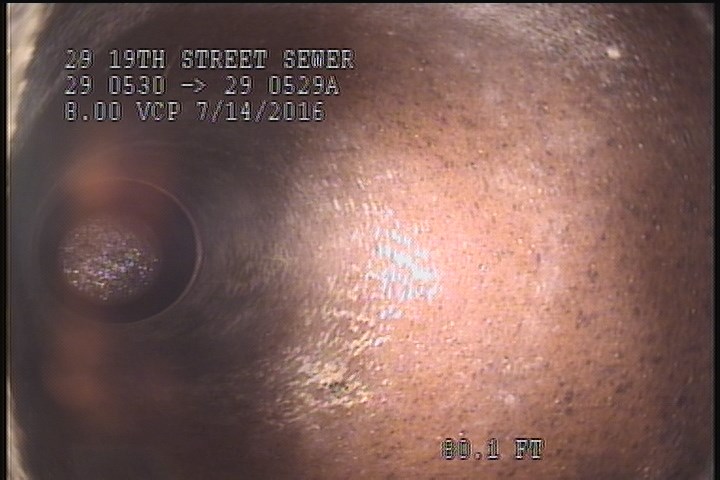

  • Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"

    82.3 ft. - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P24585Work order 0574371

Observations (16)

DistanceCodeObservation
82.3TBA—
0AMH09:46AM
80.1AMHPOSSIBLE LAMP HOLE
79.3TF—
9.9CM—
0MWL—
30.3CM—
15.6CS—
5CM—
22CM—
42.4CM—
0MWM—
25CM—
0MGOCONNECTION AT MH, 9 OCLOCK, UNKNOWN
60.8CM—
0MGOROACHES > 50 AT MH

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2016-07-14T08:48:35-07:00
documentation
IGNACIO, SHADLER, FRANKLIN
is_lateral_inspection
false
