Wastewater/Activity/PacpInspection/1.0Jul 12, 2016, 10:08 AM
G 0086_G 0016_7122016_032044.mp4
- Date
- 07/12/2016
- W/O
- 0580129
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01180
- PipeID
- P02220
- Time
- 3:08 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- HO182
- Sewer Name
- G JOINT OUTFALL G - UNIT 8
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 16
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160709MDM_JOINT_OUTFALL_G_UNIT_8
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- G 0086
- Downstream MH
- G 0016
- Dir. of Survey
- Downstream
- Length Surveyed
- 8.2 ft.
- Total Length
- 8.2 ft.
- Structural Index
- 5
- Structural Quick
- 5241
- Structural Rating
- 14
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (5)

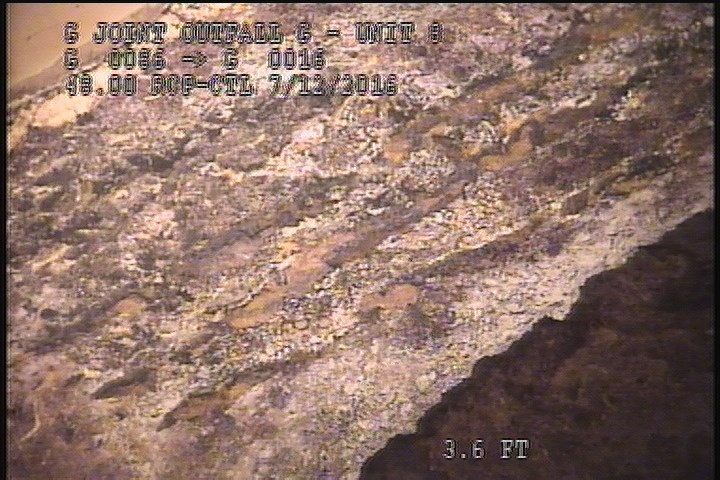

2 ft. - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

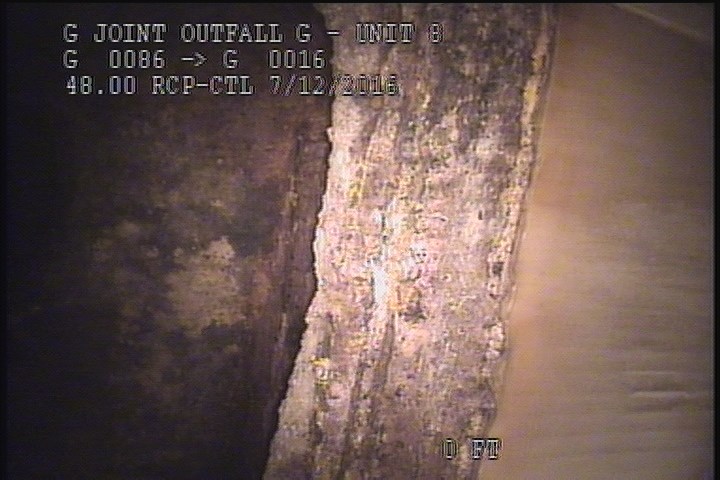

2 ft. - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR

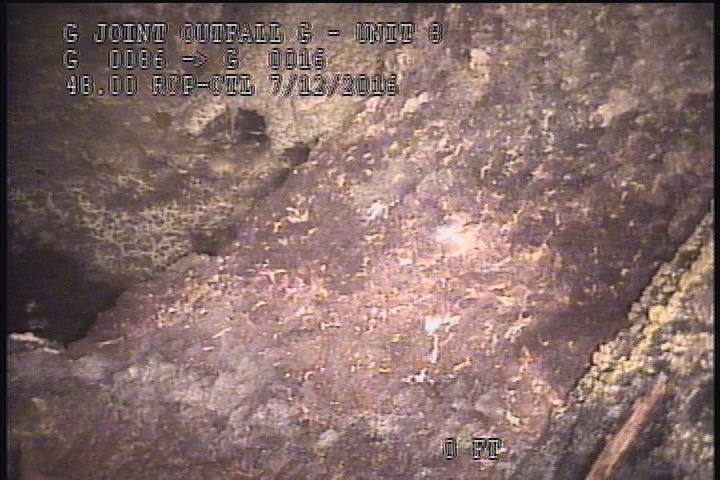

2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

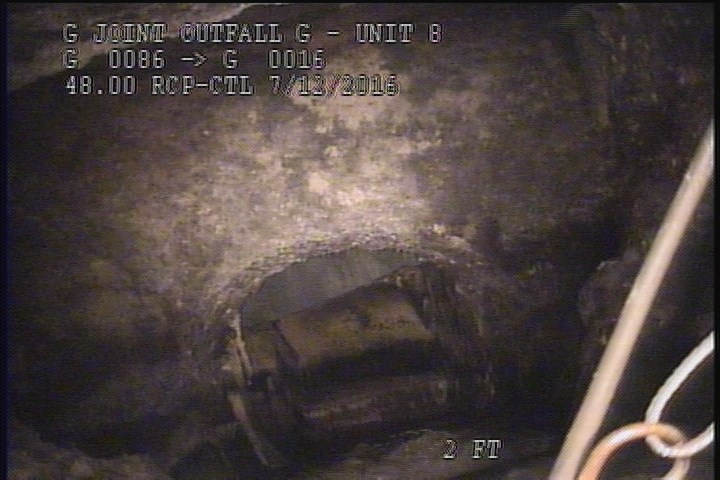

2 ft. - General Observation - ZOOM 6' MH# G16

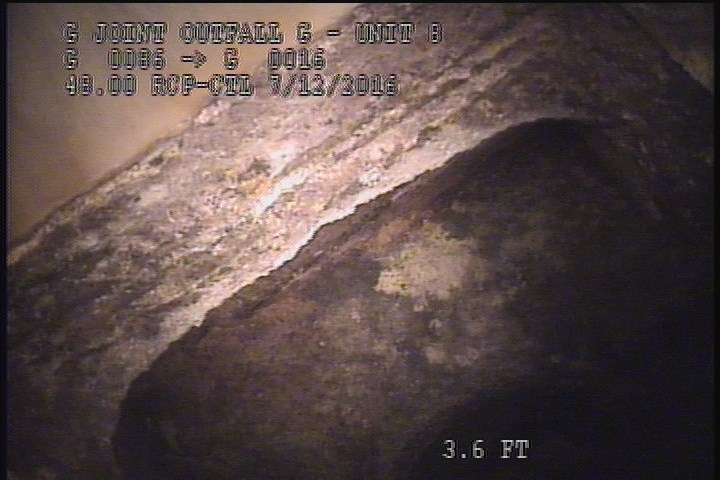

2 ft. - General Observation - 100% MISSING TILES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 2 | SRC | CIRCUM REBAR |
| 2 | SRC | CIRCUM REBAR |
| 8.2 | AMH | 3:10AM |
| 0 | AMH | 3:10AM |
| 0 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 8 | SAM | SEVERE AGG |
| 0 | MWM | — |
| 2 | SAM | SEVERE AGG |
| 0 | MWL | — |
| 2 | MGO | ZOOM 6' MH# G16 |
| 8 | SRC | CIRCUM REBAR |
| 2 | MGO | 100% MISSING TILES |
Properties (6)
- custom_field_three
- CORRODED REBAR
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-07-12T03:08:26-07:00
- documentation
- MARTIN,MANANES,OLIVER 111
- is_lateral_inspection
- false
