Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 11, 2016, 11:45 AM

  • G 0155_G 0154_7112016_050106.mp4

Date
07/11/2016
W/O
0580099
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00836
Time
4:45 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
HO181
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Capital Improvement Program Assesment
Project
20160709MDM_JOINT_OUTFALL_G_UNIT_8
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0155
Downstream MH
G 0154
Dir. of Survey
Downstream
Length Surveyed
385.5 ft.
Total Length
385.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4132
O&M Rating
10
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole G 0155 to G 0154
MH: G 0155MH: G 0154downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MGO - General Observation - MAG COAT 80% START 9:00 TO 3:000 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:45AM2 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG COAT36.9 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG COAT64.5 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG COAT111.9 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SLUDGE PAPER ROCKS135.6 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start - SLUDGE ROCKS PAPER197.6 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish - SLUDGE ROCKS PAPER197.6 ft. MGO - General Observation - TILES 100% IN PLACE203.2 ft. MGO - General Observation - MAG COAT 80%287.3 ft. MWM - Water Mark, 40 %of cross sectional area287.3 ft. MWL - Water Level, 20 %of cross sectional area385.1 ft. MGO - General Observation - Conn. @ Mh, 10 O' Clock. Capped385.1 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active385.1 ft. MGO - General Observation - MAG COAT 80% FINISH385.1 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG COAT385.5 ft. AMH - Downstream Manhole, Survey Ends - 5:20AM

Observation photos (6)

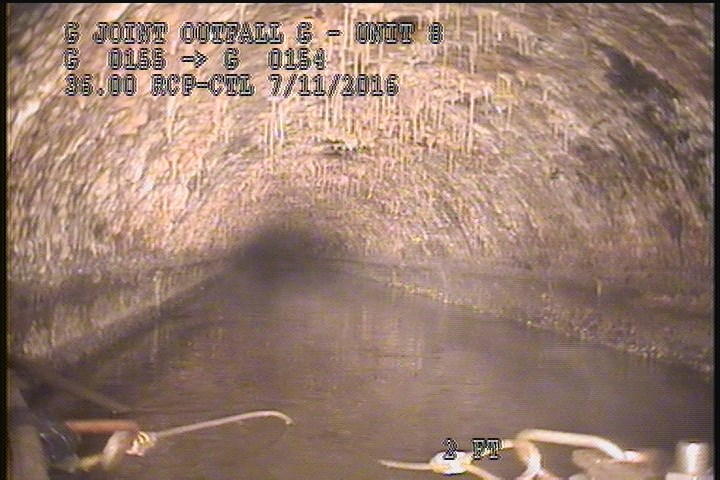

  • General Observation - MAG COAT 80% START 9:00 TO 3:00

    0 ft. - General Observation - MAG COAT 80% START 9:00 TO 3:00

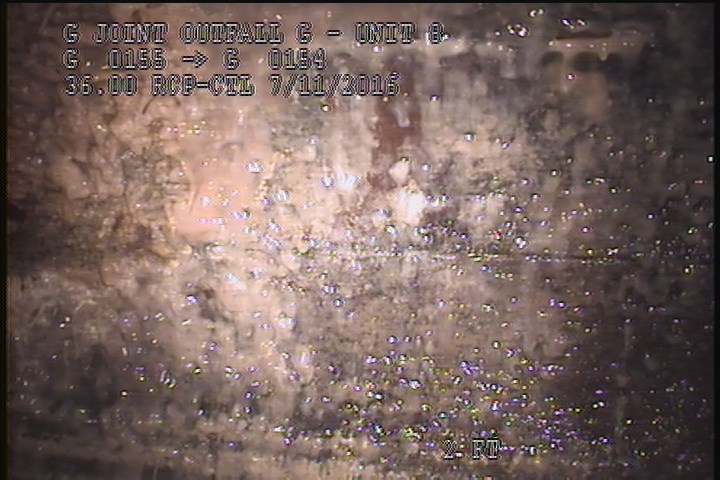

  • General Observation - TILES 100% IN PLACE UNDER MAG COAT

    2 ft. - General Observation - TILES 100% IN PLACE UNDER MAG COAT

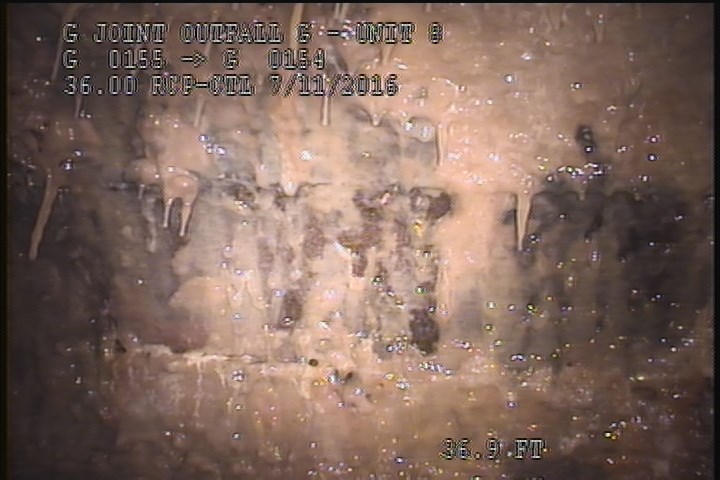

  • General Observation - TILES 100% IN PLACE UNDER MAG COAT

    36.9 ft. - General Observation - TILES 100% IN PLACE UNDER MAG COAT

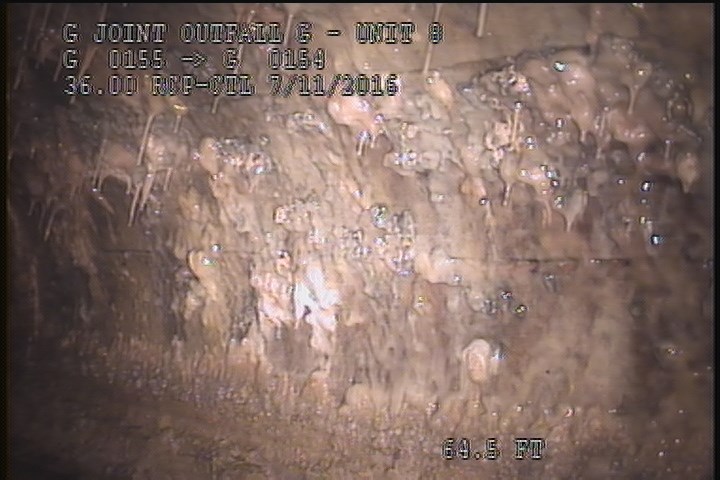

  • General Observation - TILES 100% IN PLACE UNDER MAG COAT

    64.5 ft. - General Observation - TILES 100% IN PLACE UNDER MAG COAT

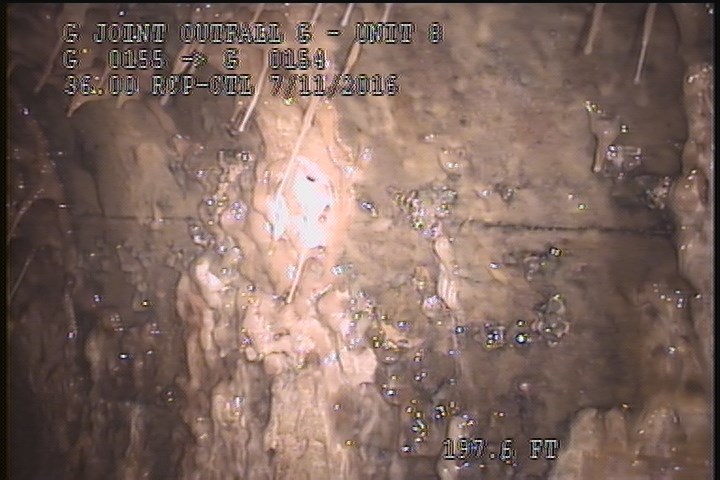

  • General Observation - TILES 100% IN PLACE

    197.6 ft. - General Observation - TILES 100% IN PLACE

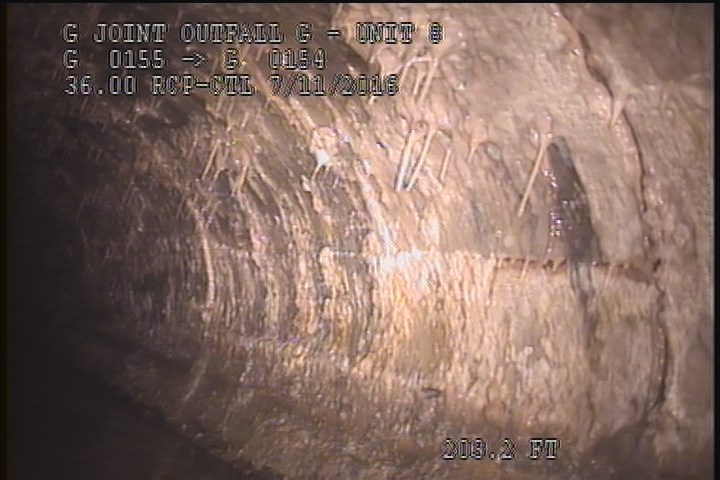

  • General Observation - MAG COAT 80%

    203.2 ft. - General Observation - MAG COAT 80%

All inspections of P00836Work order 0580099

Observations (20)

DistanceCodeObservation
0MGOConn. @ Mh, 9 O' Clock. Active
135.6DSZSLUDGE ROCKS PAPER
2MGOTILES 100% IN PLACE UNDER MAG COAT
385.1MGOConn. @ Mh, 10 O' Clock. Capped
36.9MGOTILES 100% IN PLACE UNDER MAG COAT
197.6DSZSLUDGE ROCKS PAPER
111.9DSZSLUDGE PAPER ROCKS
0MGOMAG COAT 80% START 9:00 TO 3:00
203.2MGOMAG COAT 80%
0MWM—
64.5MGOTILES 100% IN PLACE UNDER MAG COAT
197.6MGOTILES 100% IN PLACE
0MWL—
287.3MWM—
385.1MGOConn. @ Mh, 9 O' Clock. Active
0AMH4:45AM
385.1MGOMAG COAT 80% FINISH
385.1MGOTILES 100% IN PLACE UNDER MAG COAT
287.3MWL—
385.5AMH5:20AM

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2016-07-11T04:45:00-07:00
documentation
MARTIN,MANANES,OLIVER 111
is_lateral_inspection
false
