Wastewater/Activity/PacpInspection/1.0Jul 9, 2016, 08:10 AM
G 0162_G 0161_792016_051304.mp4
G 0162_G 0161_792016_053835.mp4
- Date
- 07/09/2016
- W/O
- 0580099
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01180
- PipeID
- P00843
- Time
- 1:10 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- HO179
- Sewer Name
- G JOINT OUTFALL G - UNIT 8
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 16
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160709MDM_JOINT_OUTFALL_G_UNIT_8
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- G 0162
- Downstream MH
- G 0161
- Dir. of Survey
- Downstream
- Length Surveyed
- 437.8 ft.
- Total Length
- 437.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (8)

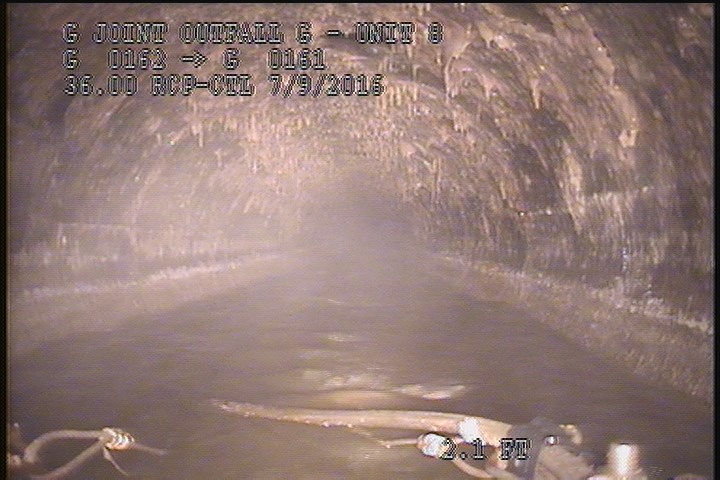

2 ft. - General Observation - MAG COAT 70% START 8:00 TO 4:00

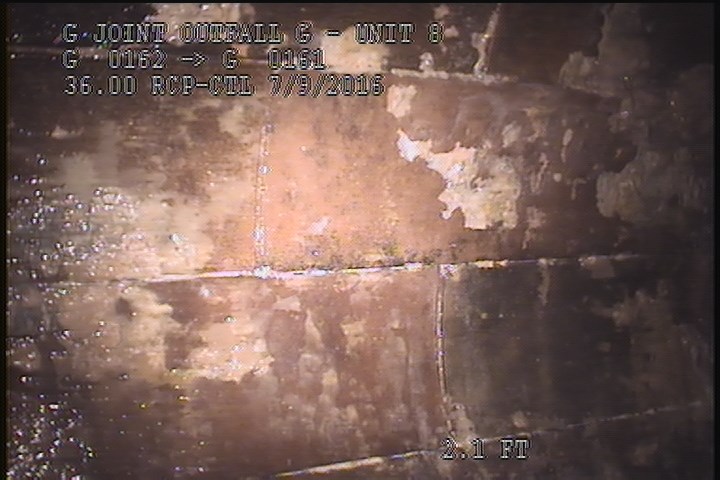

2 ft. - General Observation - TILES 100% IN PLACE

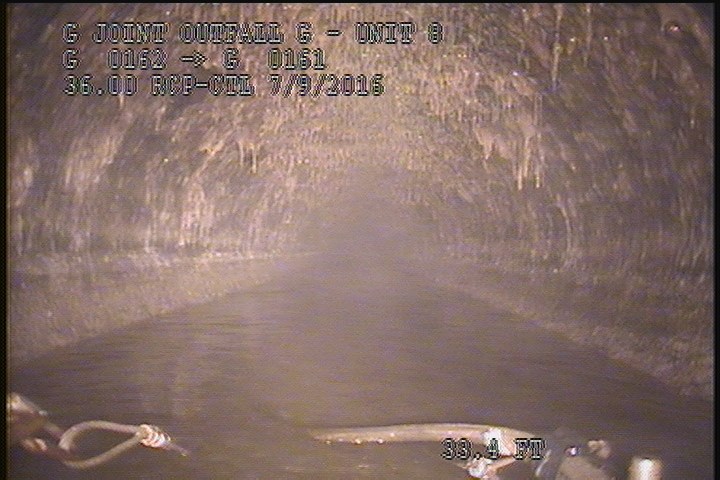

33.4 ft. - General Observation - MAG COAT 90% START

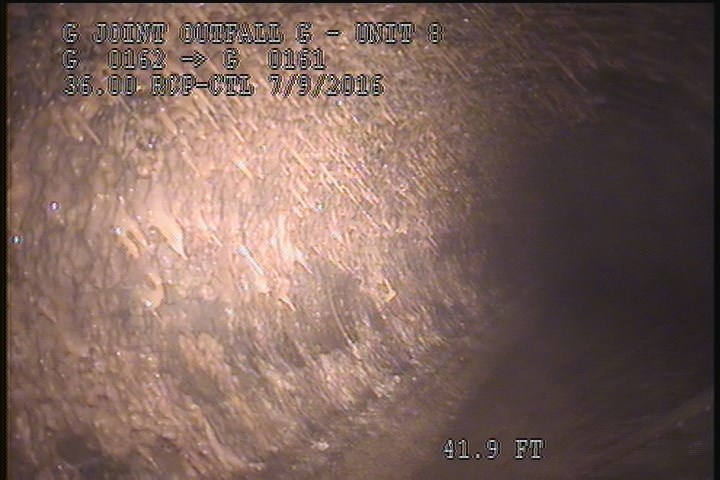

41.9 ft. - General Photograph

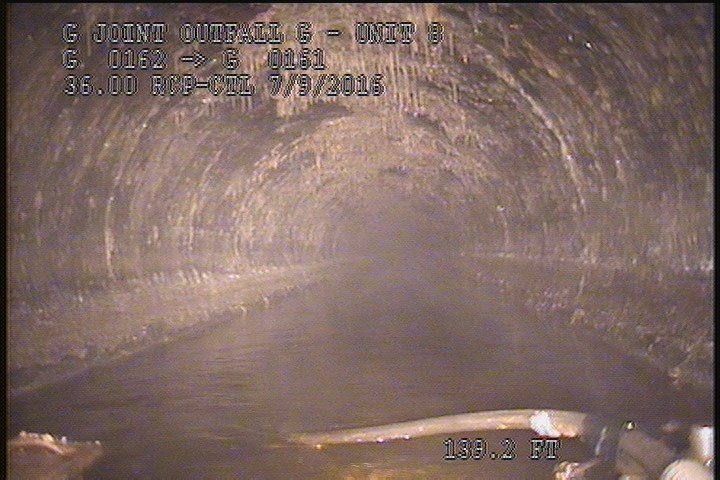

139.2 ft. - General Observation - MAG COAT 80% START

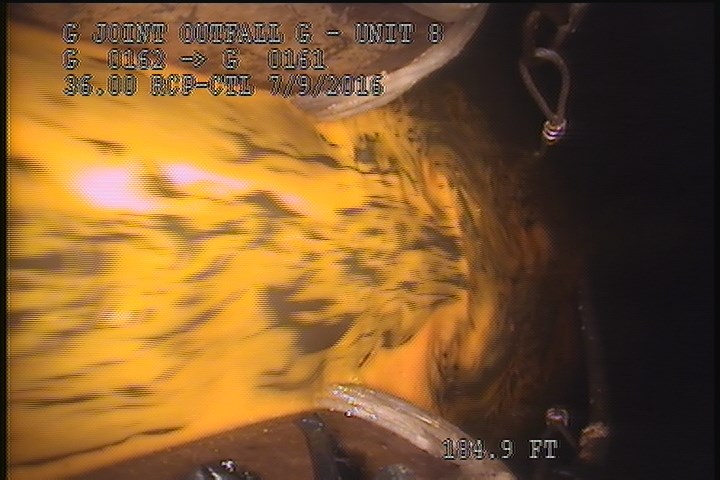

153.3 ft. - General Observation - UNUSAL GLOWING SEWAGE

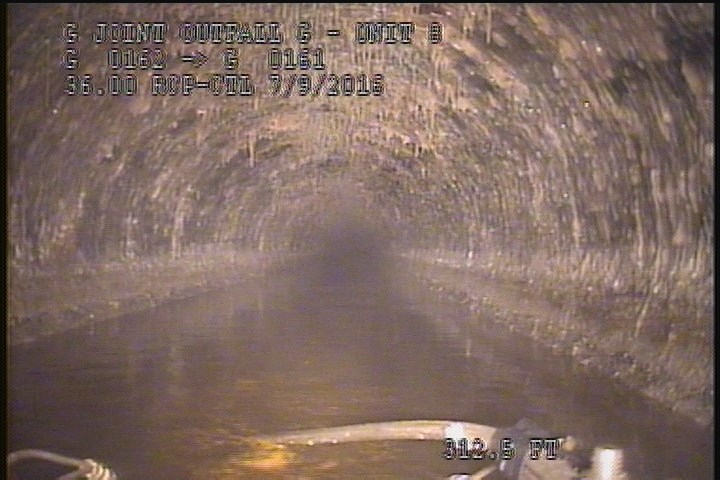

312.5 ft. - General Observation - MAG COAT 90% START

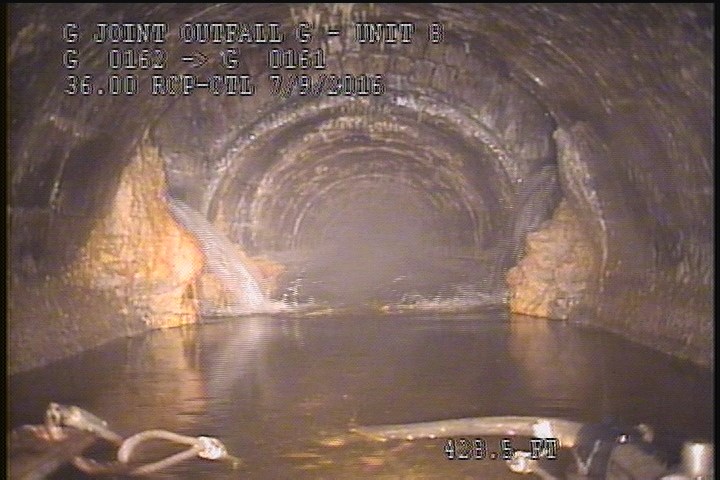

433.8 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: NO - AT MH OPENIN UPSTREAM
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 41.9 | MGP | — |
| 437.4 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 0 | AMH | 4:50AM |
| 33.4 | MGO | MAG COAT 90% START |
| 312.5 | MGO | MAG COAT 90% START |
| 437.8 | AMH | 5:30AM |
| 433.8 | DAGS | AT MH OPENIN UPSTREAM |
| 2 | MGO | MAG COAT 70% START 8:00 TO 4:00 |
| 437.4 | MGO | MAG COAT 90% FINISH |
| 2 | MGO | TILES 100% IN PLACE |
| 0 | MWM | — |
| 201.2 | DSZ | ROCKS |
| 139.2 | MGO | MAG COAT 80% START |
| 437.4 | MGO | TILES 100% IN PLACE |
| 0 | MWL | — |
| 153.3 | MGO | UNUSAL GLOWING SEWAGE |
| 2.1 | DSZ | ROCKS |
| 437.4 | MGO | Conn. @ Mh, 3 O' Clock. Active |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-07-09T01:10:40-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
