Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 9, 2016, 08:09 AM

  • G 0163_G 0162_792016_042308.mp4

Date
07/09/2016
W/O
0580099
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00844
Time
1:09 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
HO179
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Capital Improvement Program Assesment
Project
20160709MDM_JOINT_OUTFALL_G_UNIT_8
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0163
Downstream MH
G 0162
Dir. of Survey
Downstream
Length Surveyed
434.7 ft.
Total Length
434.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole G 0163 to G 0162
MH: G 0163MH: G 0162downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:55AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MGO - General Observation - TILES 100% IN PLACE2 ft. MGO - General Observation - MAG COAT 70% START 8:00 TO 4:0072.4 ft. MGO - General Observation - TILES 100% IN PLACE177.1 ft. MGO - General Observation - MAG COAT 60% START284.2 ft. MGO - General Observation - TILES 100% IN PLACE315.1 ft. MGO - General Observation - TILES 100% IN PLACE434 ft. MGO - General Observation - TILES 100% IN PLACE434 ft. MGO - General Observation - MAG COAT 60% FINISH434.7 ft. AMH - Downstream Manhole, Survey Ends - 4:40AM

Observation photos (6)

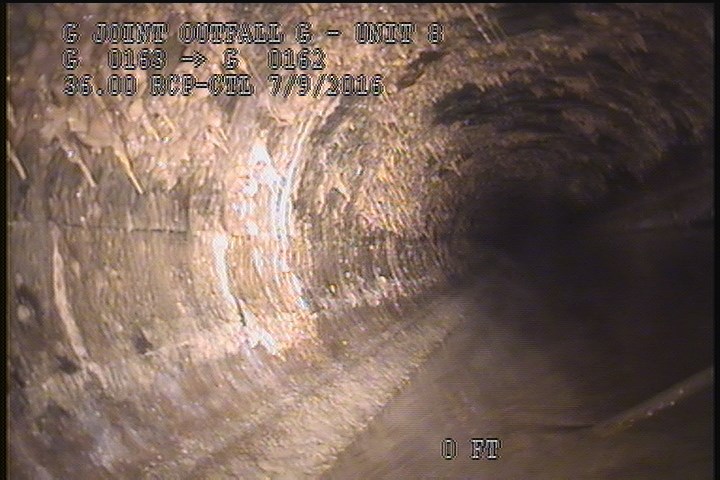

  • General Observation - TILES 100% IN PLACE

    2 ft. - General Observation - TILES 100% IN PLACE

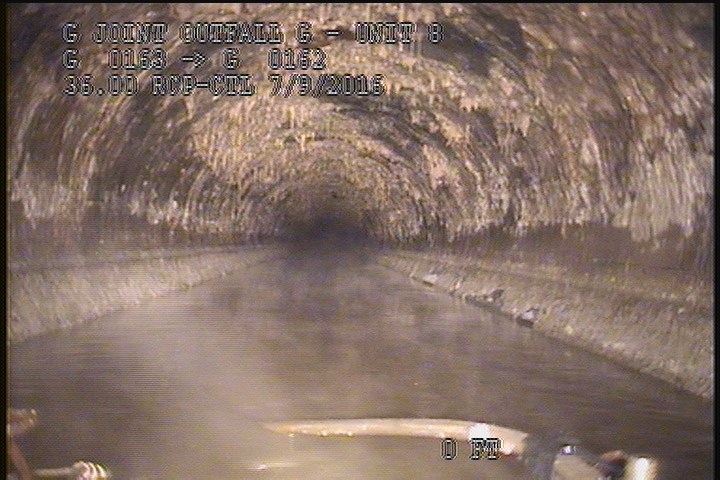

  • General Observation - MAG COAT 70% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 70% START 8:00 TO 4:00

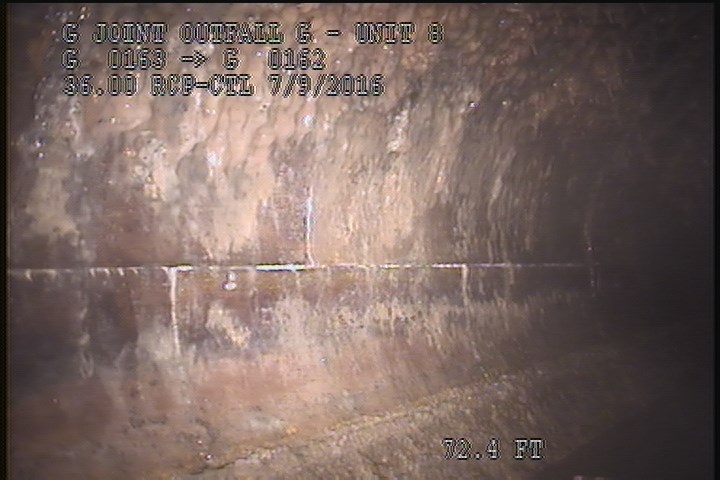

  • General Observation - TILES 100% IN PLACE

    72.4 ft. - General Observation - TILES 100% IN PLACE

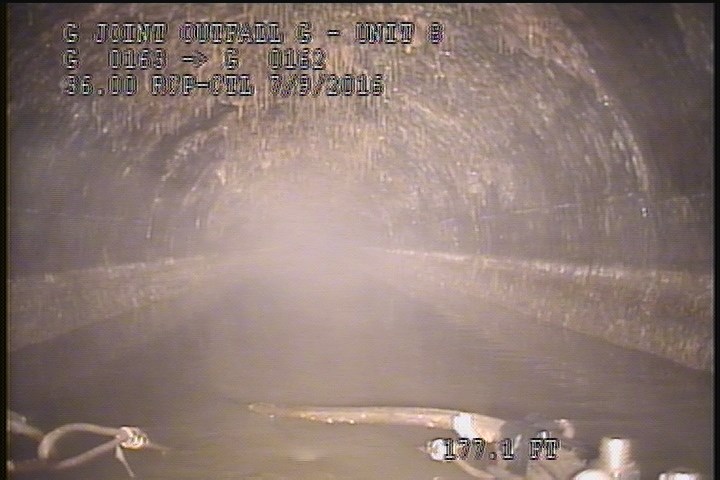

  • General Observation - MAG COAT 60% START

    177.1 ft. - General Observation - MAG COAT 60% START

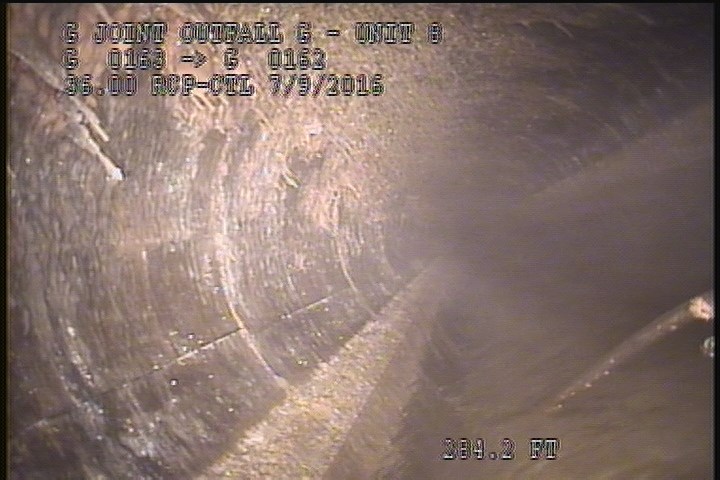

  • General Observation - TILES 100% IN PLACE

    284.2 ft. - General Observation - TILES 100% IN PLACE

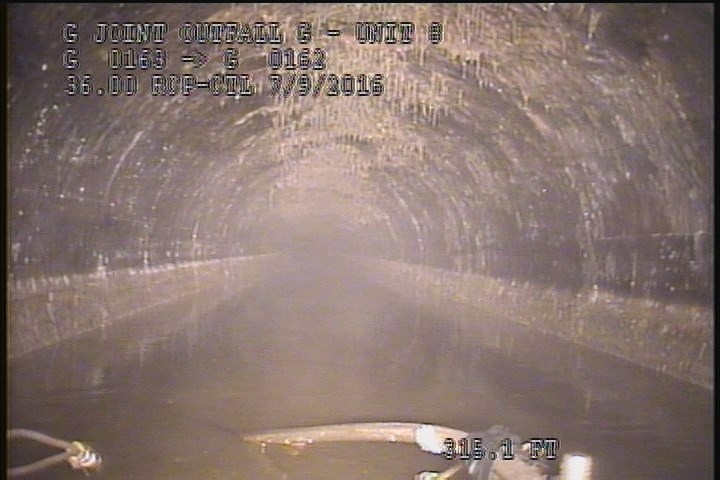

  • General Observation - TILES 100% IN PLACE

    315.1 ft. - General Observation - TILES 100% IN PLACE

All inspections of P00844Work order 0580099

Observations (13)

DistanceCodeObservation
2MGOTILES 100% IN PLACE
72.4MGOTILES 100% IN PLACE
2MGOMAG COAT 70% START 8:00 TO 4:00
177.1MGOMAG COAT 60% START
434MGOTILES 100% IN PLACE
434.7AMH4:40AM
315.1MGOTILES 100% IN PLACE
0AMH3:55AM
0MWM—
284.2MGOTILES 100% IN PLACE
0MGOConn. @ Mh, 9 O' Clock. Active
0MWL—
434MGOMAG COAT 60% FINISH

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2016-07-09T01:09:30-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
