Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 9, 2016, 07:27 AM

  • G 0165_G 0164_792016_012418.mp4

Date
07/09/2016
W/O
0580099
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00846
Time
12:27 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
HO179
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Capital Improvement Program Assesment
Project
20160709MDM_JOINT_OUTFALL_G_UNIT_8
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0165
Downstream MH
G 0164
Dir. of Survey
Downstream
Length Surveyed
347.5 ft.
Total Length
347.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole G 0165 to G 0164
MH: G 0165MH: G 0164downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:45AM2 ft. MGO - General Observation - TILES 100% IN PLACE2 ft. MGO - General Observation - MAG COAT 80% 8:00 TO 4:00 START13.9 ft. MGO - General Observation - TILES 100% IN PLACE62.4 ft. MGO - General Observation - TILES 100%229.8 ft. MGO - General Observation - 80% MAG COAT347 ft. MGO - General Observation - TILES 100% IN PLACE347 ft. MGO - General Observation - MAG COAT 80% FINISH347 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active347.5 ft. AMH - Downstream Manhole, Survey Ends - 1:20AM

Observation photos (5)

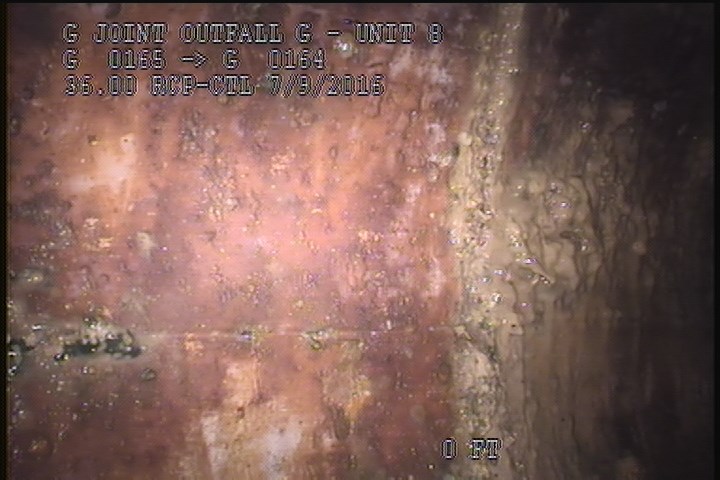

  • General Observation - TILES 100% IN PLACE

    2 ft. - General Observation - TILES 100% IN PLACE

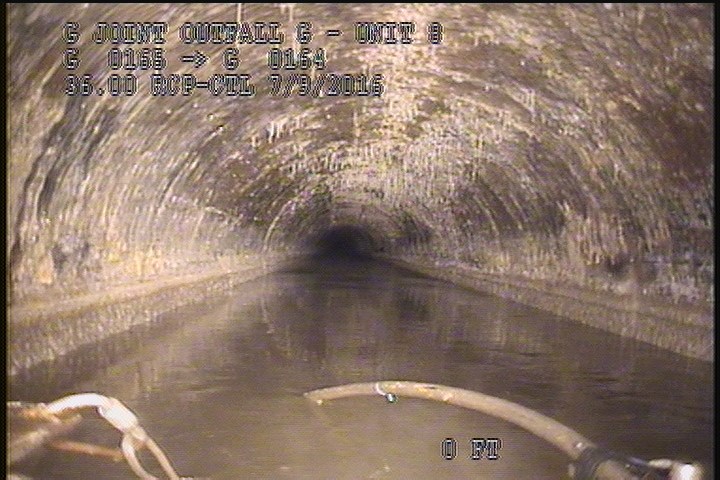

  • General Observation - MAG COAT 80% 8:00 TO 4:00 START

    2 ft. - General Observation - MAG COAT 80% 8:00 TO 4:00 START

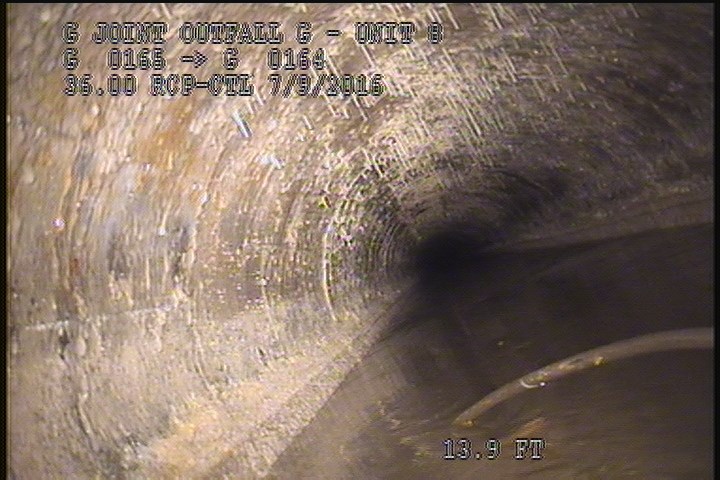

  • General Observation - TILES 100% IN PLACE

    13.9 ft. - General Observation - TILES 100% IN PLACE

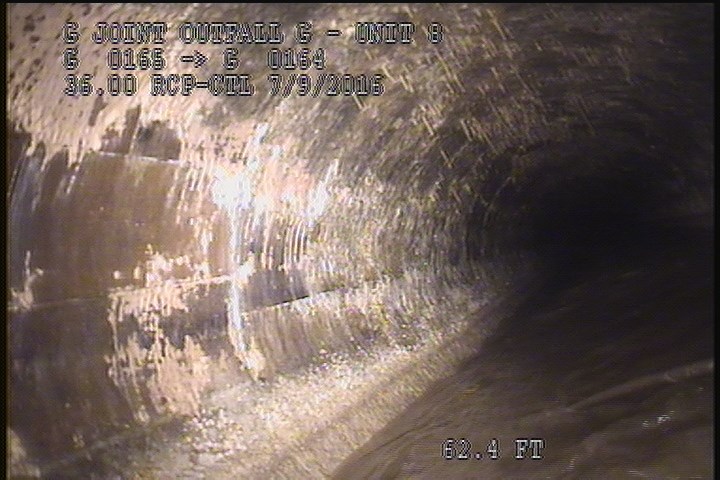

  • General Observation - TILES 100%

    62.4 ft. - General Observation - TILES 100%

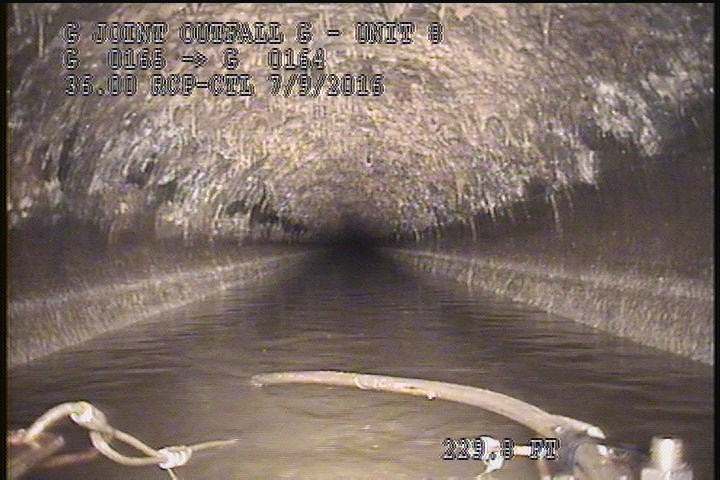

  • General Observation - 80% MAG COAT

    229.8 ft. - General Observation - 80% MAG COAT

All inspections of P00846Work order 0580099

Observations (14)

DistanceCodeObservation
0MGOConn. @ Mh, 3 O' Clock. Active
0MWM—
0MGOConn. @ Mh, 9 O' Clock. Active
347.5AMH1:20AM
13.9MGOTILES 100% IN PLACE
347MGOTILES 100% IN PLACE
2MGOTILES 100% IN PLACE
347MGOMAG COAT 80% FINISH
2MGOMAG COAT 80% 8:00 TO 4:00 START
62.4MGOTILES 100%
347MGOConn. @ Mh, 3 O' Clock. Active
0MWL—
0AMH12:45AM
229.8MGO80% MAG COAT

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2016-07-09T00:27:01-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
