  • F 0071B_F 0071A_772016_102959.mp4

Date
07/07/2016
W/O
0531060
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00035
PipeID
P10158
Time
10:14 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7174
Sewer Name
F JOINT OUTFALL F - UNIT 3A
City
BELLFLOWER
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
39
Purpose
Routine Assessment
Project
20160707AM_JOINT_OUTFALL_F_UNIT_3A
Material
Reinforced Concrete Pipe
Shape
Circular
Height
66 in.
Upstream MH
F 0071B
Downstream MH
F 0071A
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole F 0071B to F 0071A
MH: F 0071BMH: F 0071Adownstream0 ft. MWL - Water Level, 100 %of cross sectional area - SLUDGE ON TOP0 ft. AMH - Upstream Manhole, Survey Begins - 10:28 AM2 ft. SMW - Surface Missing Wall, at 12 o'clock, within 8 inches of joint: NO2 ft. LD - Alignment Down, 45 %2 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO2 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO2.1 ft. MSA - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

Observation photos (7)

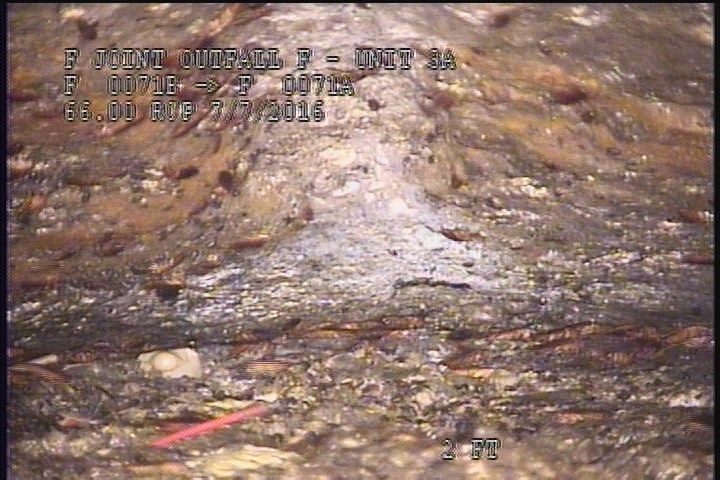

  • Water Level, 100 %of cross sectional area - SLUDGE ON TOP

    0 ft. - Water Level, 100 %of cross sectional area - SLUDGE ON TOP

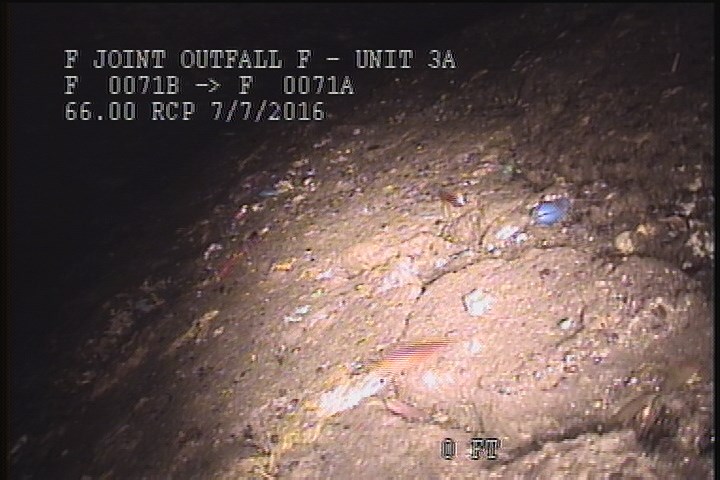

  • Upstream Manhole, Survey Begins - 10:28 AM

    0 ft. - Upstream Manhole, Survey Begins - 10:28 AM

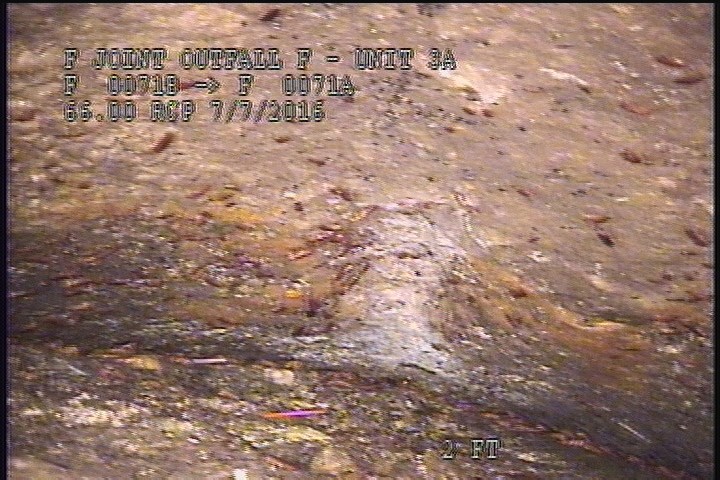

  • Surface Missing Wall, at 12 o'clock, within 8 inches of joint: NO

    2 ft. - Surface Missing Wall, at 12 o'clock, within 8 inches of joint: NO

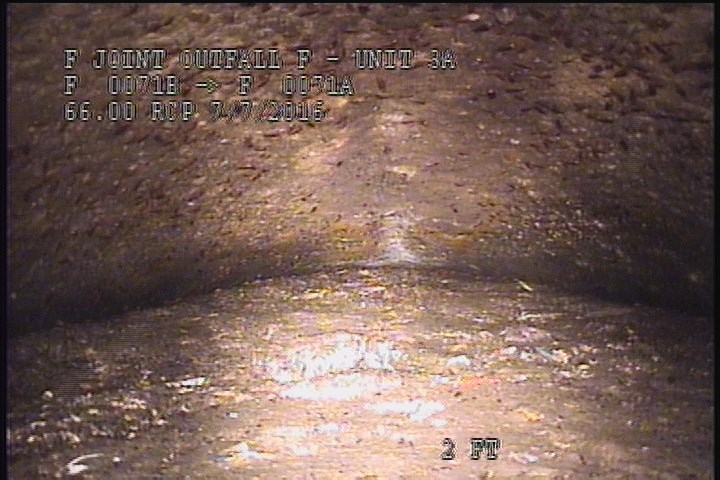

  • Alignment Down, 45 %

    2 ft. - Alignment Down, 45 %

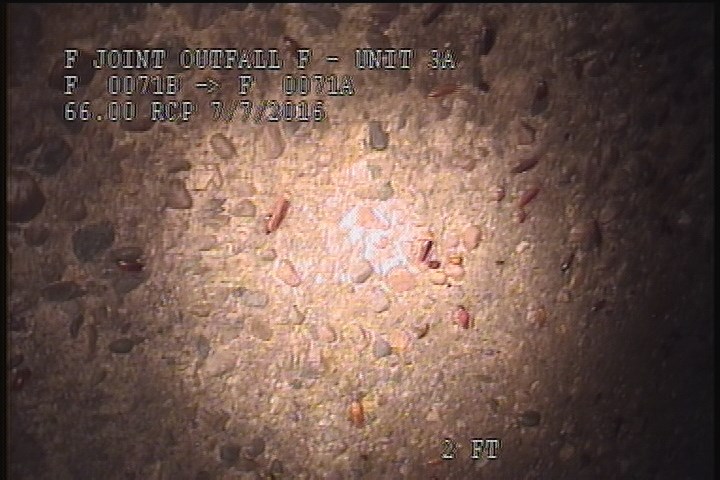

  • Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO

    2 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO

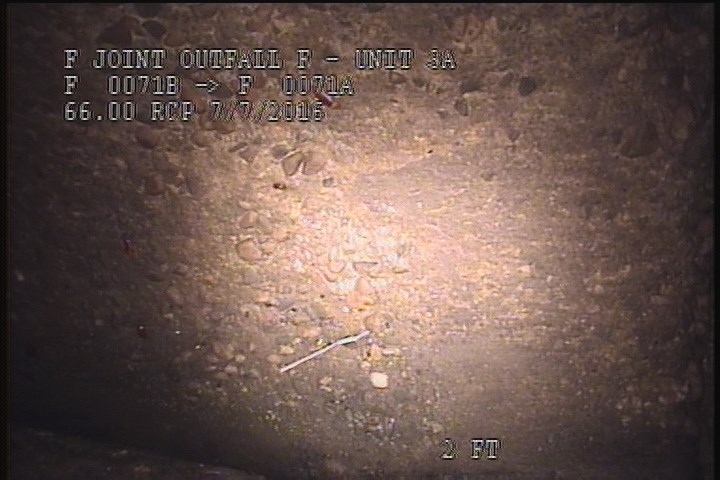

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO

    2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO

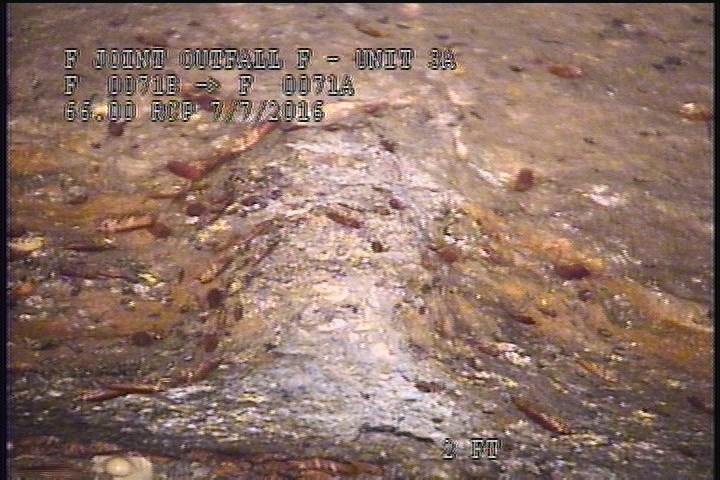

  • Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

    2.1 ft. - Survey Abandoned - VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON

All inspections of P10158Work order 0531060

Observations (7)

DistanceCodeObservation
0MWLSLUDGE ON TOP
2SMW—
2.1MSAVIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
0AMH10:28 AM
2LD—
2SAV—
2SSS—

Properties (7)

additional_info
VIEW OF THE DOWNLEG PIPE OF THE U/S SIPHON
custom_field_three
MISSING WALL
custom_field_two
1
customer
LACSD
datetime
2016-07-07T10:14:58-07:00
documentation
MIRANDA, FRANKLIN, SHADLER
is_lateral_inspection
false
