Wastewater/Activity/PacpInspection/1.0Dec 30, 2015, 08:11 AM
14 0897_14 0896_30122015_001148.mp4
- Date
- 12/30/2015
- W/O
- 541692
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00579
- PipeID
- P22372
- Time
- 12:11 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3062
- Sewer Name
- 14 TRUNK "C"
- City
- PALMDALE
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_541692_TV14020_DEC2015
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 14 0897
- Downstream MH
- 14 0896
- Dir. of Survey
- Downstream
- Length Surveyed
- 382.3 ft.
- Total Length
- 382.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 152
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 152
Observation photos (1)

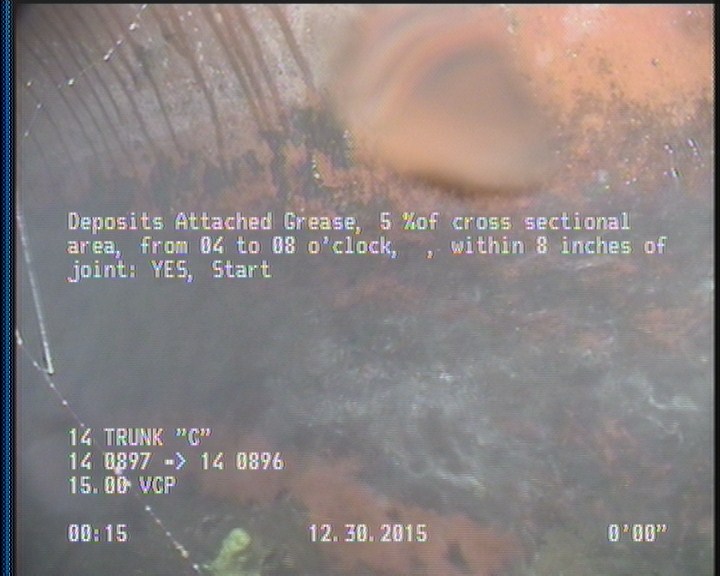

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | AMH | 14 0897 |
| 382.3 | AMH | 14 0896 |
| 380.6 | DAGS | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC224847
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2015-12-30T00:11:31-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
