Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 12, 2016, 08:58 AM

  • 14 0824_14 0823_12012016_005833.mp4

Date
01/12/2016
W/O
541692
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00579
PipeID
P20707
Time
12:58 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3070
Sewer Name
14 TRUNK "C"
City
LANCASTER
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
09
Purpose
Routine Assessment
Project
WO_541692_TV14020_DEC2015
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
14 0824
Downstream MH
14 0823
Dir. of Survey
Downstream
Length Surveyed
386.9 ft.
Total Length
386.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2N00
O&M Rating
154
Overall Index
2
Overall Quick
—
Overall Rating
154
Pipe schematic from manhole 14 0824 to 14 0823
MH: 14 0824MH: 14 0823downstream0 ft. AMH - Upstream Manhole, Survey Begins - 14 08240 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start107.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"384.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish386.9 ft. AMH - Downstream Manhole, Survey Ends - 14 0823

Observation photos (2)

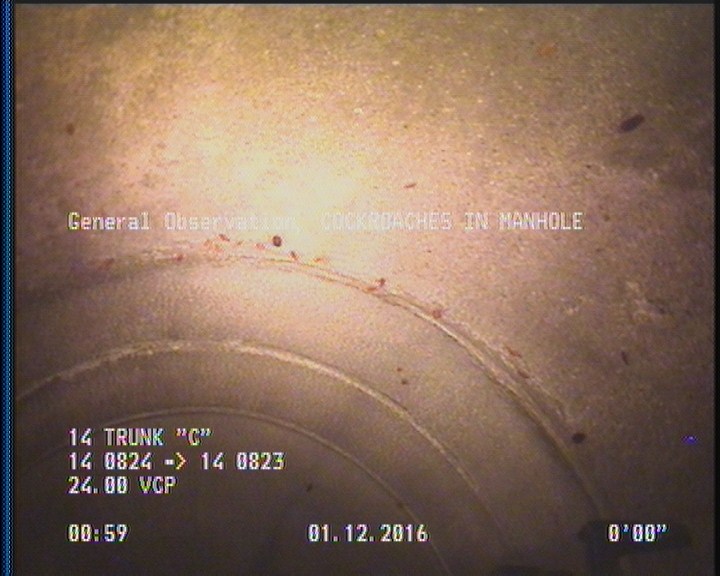

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

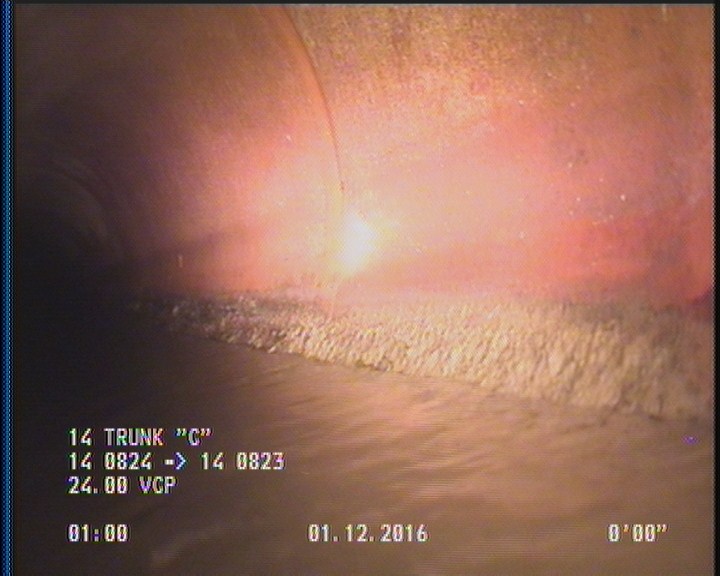

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P20707Work order 541692

Observations (8)

DistanceCodeObservation
384.7DAGS—
107.6TFA—
386.9AMH14 0823
0AMH14 0824
0MWM—
2DAGS—
0MGOCOCKROACHES IN MANHOLE
0MWL—

Properties (6)

additional_info
SC224842
custom_field_two
4
customer
LACSD
datetime
2016-01-12T00:58:16-08:00
documentation
PRO PIPE
is_lateral_inspection
false
