Wastewater/Activity/PacpInspection/1.0Jan 13, 2016, 11:21 AM
20 0515_20 0514_13012016_032140.mp4
- Date
- 01/13/2016
- W/O
- 541619
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00737
- PipeID
- P19418
- Time
- 3:21 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3072
- Sewer Name
- 20 AVENUE "Q" RELIEF TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_541619_TV20034_DEC2015
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 20 0515
- Downstream MH
- 20 0514
- Dir. of Survey
- Downstream
- Length Surveyed
- 295.1 ft.
- Total Length
- 295.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 116
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 116
Observation photos (1)

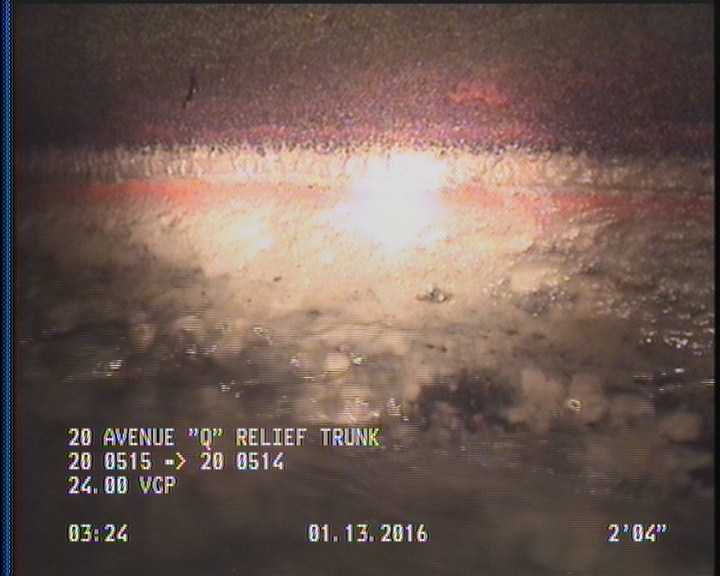

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 293.1 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 295.1 | AMH | 20 0514 |
| 0 | AMH | 20 0515 |
| 0 | MWM | — |
Properties (7)
- additional_info
- SC224844
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-01-13T03:21:22-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 19890731
