Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 12, 2016, 11:52 AM

  • 20 0532_20 0531_12012016_035301.mp4

Date
01/12/2016
W/O
541619
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00737
PipeID
P19435
Time
3:52 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3071
Sewer Name
20 AVENUE "Q" RELIEF TRUNK
City
PALMDALE
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
06
Purpose
Routine Assessment
Project
WO_541619_TV20034_DEC2015
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
20 0532
Downstream MH
20 0531
Dir. of Survey
Downstream
Length Surveyed
115.6 ft.
Total Length
115.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2D00
O&M Rating
54
Overall Index
2
Overall Quick
—
Overall Rating
54
Pipe schematic from manhole 20 0532 to 20 0531
MH: 20 0532MH: 20 0531downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 20 05320 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start50.1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES92.5 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start113.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish113.1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish115.6 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK115.6 ft. AMH - Downstream Manhole, Survey Ends - 20 0531

Observation photos (4)

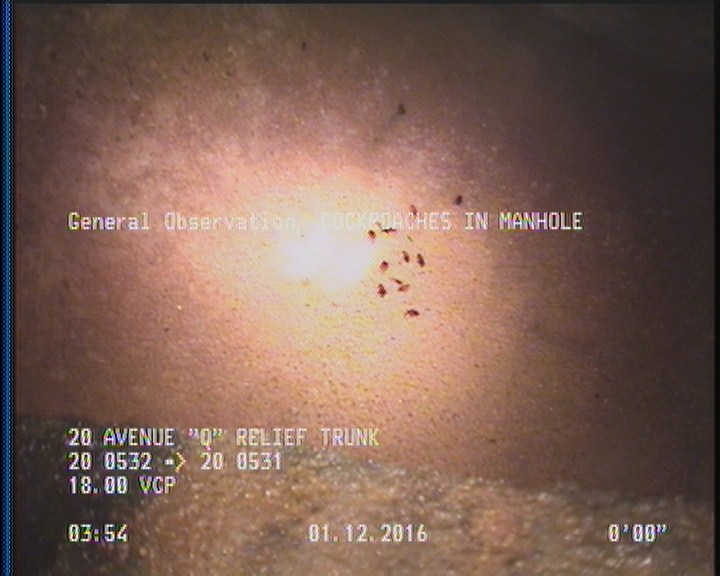

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

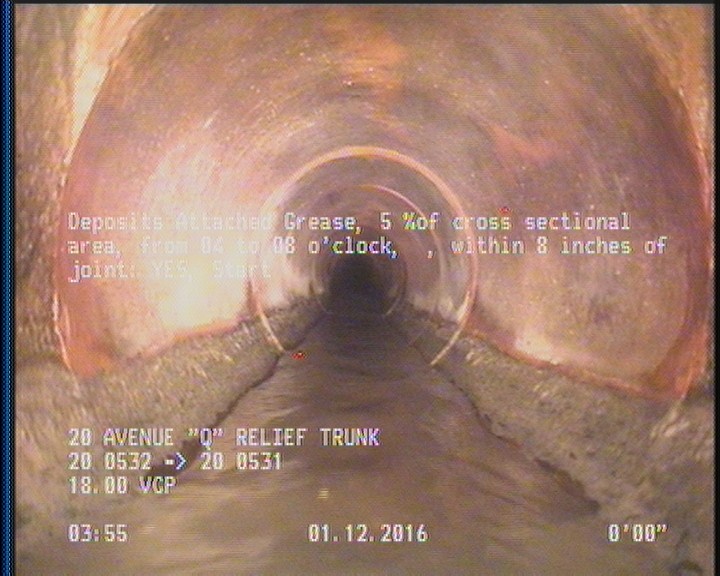

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

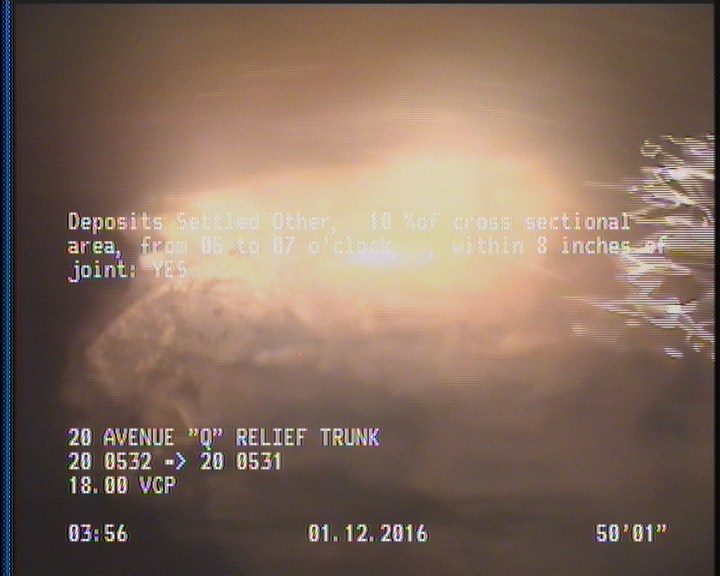

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

    50.1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

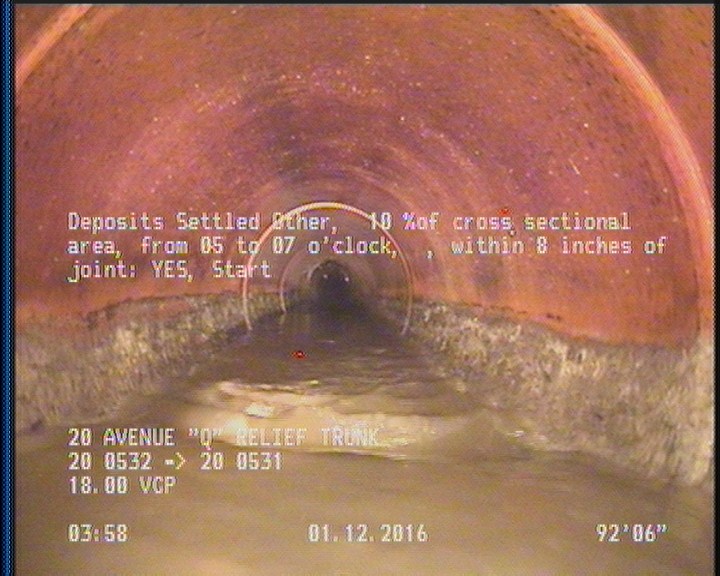

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    92.5 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

All inspections of P19435Work order 541619

Observations (11)

DistanceCodeObservation
115.6MGOCONNECTION AT MH 9 O'CLOCK
0MWL—
113.1DAGS—
113.1DSZ—
0MGOCOCKROACHES IN MANHOLE
50.1DSZ—
2DAGS—
92.5DSZ—
0AMH20 0532
115.6AMH20 0531
0MWM—

Properties (7)

additional_info
SC224843
custom_field_two
4
customer
LACSD
datetime
2016-01-12T03:52:27-08:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
19890731
