Wastewater/Activity/PacpInspection/1.0Jan 19, 2016, 12:34 PM
H 0793_H 0792B_20160119_043548.mp4
- Date
- 01/19/2016
- W/O
- 536533
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00942
- PipeID
- P23094
- Time
- 4:34 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3117
- Sewer Name
- H JOINT OUTFALL H - UNIT 9C
- City
- LA VERNE, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_536533_TV22079_NOV2015
- Sewer Type
- GRAVITY
- Material
- NRCP
- Shape
- Circular
- Height
- 20 in.
- Upstream MH
- H 0793
- Downstream MH
- H 0792B
- Dir. of Survey
- Downstream
- Length Surveyed
- 12.2 ft.
- Total Length
- 12.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4132
- O&M Rating
- 10
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (1)

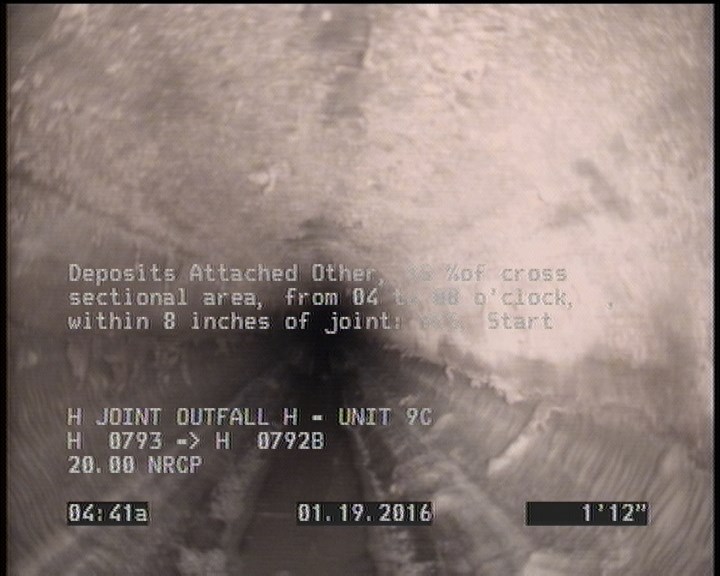

2 ft. - Deposits Attached Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 12.2 | MGO | TOO MUCH DEBRIS IN LINE |
| 2 | DAZ | — |
| 12.2 | DAZ | — |
| 0 | MWL | — |
| 12.2 | MSA | TOO MUCH DEBRIS |
| 0 | AMH | H 0793 |
Properties (6)
- additional_info
- SC225502
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-01-19T04:34:46-08:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
