  • 30 0157_30 0156_20151130_041201_.mp4

Date
11/30/2015
W/O
536532
Weather
Dry
Operator/Surveyor
M.MARTRINEZ
Sewer ID
Z00878
PipeID
P17862
Time
2:28 AM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K2917
Sewer Name
30 SOUTH BAY CITIES MAIN TRUNK
City
REDONDO BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
07
Purpose
Routine Assessment
Project
WO_536532_TV30036_NOV2015
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Other
Height
10 in.
Upstream MH
30 0157
Downstream MH
30 0156
Dir. of Survey
Downstream
Length Surveyed
180.2 ft.
Total Length
180.2 ft.
Structural Index
2
Structural Quick
4122
Structural Rating
9
O&M Index
2
O&M Quick
4135
O&M Rating
27
Overall Index
2
Overall Quick
—
Overall Rating
36
Pipe schematic from manhole 30 0157 to 30 0156
MH: 30 0157MH: 30 0156downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 30 01570 ft. MWM - Water Mark, 30 %of cross sectional area47 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"56.6 ft. FM - Fracture Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES109.2 ft. FC - Fracture Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES112.9 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start112.9 ft. FC - Fracture Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES114.4 ft. RFL - Roots Fine Lateral, at 02 o'clock114.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"119.4 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Finish119.4 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 35 %, within 8 inches of joint: YESR, Start126.9 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 35 %, within 8 inches of joint: YESR, Finish127.8 ft. CC - Crack Circumferential, from 07 to 08 o'clock, within 8 inches of joint: YES144 ft. RMJ - Roots Medium Joint, from 02 to 05 o'clock, 20 %, within 8 inches of joint: YESR147.4 ft. RBJ - Roots Ball Joint, from 08 to 04 o'clock, 60 %, within 8 inches of joint: YESR151.6 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start167.8 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 15 %, within 8 inches of joint: YESR169.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"169.6 ft. RML - Roots Medium Lateral, at 02 o'clock, 30 %, within 8 inches of joint: YES177.9 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Finish180.2 ft. AMH - Downstream Manhole, Survey Ends - 30 0156

Observation photos (15)

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"

    47 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"

  • Fracture Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

    56.6 ft. - Fracture Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

  • Fracture Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES

    109.2 ft. - Fracture Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

    112.9 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

  • Fracture Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES

    112.9 ft. - Fracture Circumferential, from 07 to 10 o'clock, within 8 inches of joint: YES

  • Roots Fine Lateral, at 02 o'clock

    114.4 ft. - Roots Fine Lateral, at 02 o'clock

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"

    114.4 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"

  • Roots Medium Joint, from 08 to 04 o'clock, 35 %, within 8 inches of joint: YESR, Start

    119.4 ft. - Roots Medium Joint, from 08 to 04 o'clock, 35 %, within 8 inches of joint: YESR, Start

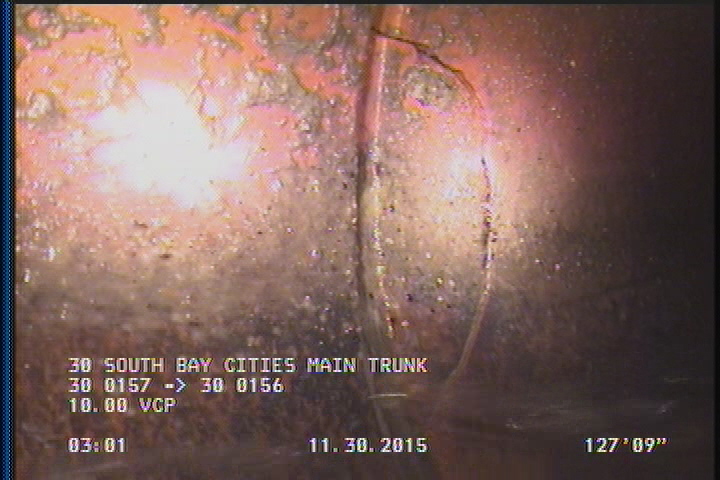

  • Crack Circumferential, from 07 to 08 o'clock, within 8 inches of joint: YES

    127.8 ft. - Crack Circumferential, from 07 to 08 o'clock, within 8 inches of joint: YES

  • Roots Medium Joint, from 02 to 05 o'clock, 20 %, within 8 inches of joint: YESR

    144 ft. - Roots Medium Joint, from 02 to 05 o'clock, 20 %, within 8 inches of joint: YESR

  • Roots Ball Joint, from 08 to 04 o'clock, 60 %, within 8 inches of joint: YESR

    147.4 ft. - Roots Ball Joint, from 08 to 04 o'clock, 60 %, within 8 inches of joint: YESR

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

    151.6 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

  • Roots Medium Joint, from 09 to 03 o'clock, 15 %, within 8 inches of joint: YESR

    167.8 ft. - Roots Medium Joint, from 09 to 03 o'clock, 15 %, within 8 inches of joint: YESR

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"

    169.1 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"

  • Roots Medium Lateral, at 02 o'clock, 30 %, within 8 inches of joint: YES

    169.6 ft. - Roots Medium Lateral, at 02 o'clock, 30 %, within 8 inches of joint: YES

All inspections of P17862Work order 536532

Observations (22)

DistanceCodeObservation
144RMJ—
151.6RFJ—
109.2FC—
114.4RFL—
114.4TF—
0MWL—
0AMH30 0157
169.1TF—
0MWM—
47TF—
177.9RFJ—
119.4RFJ—
112.9RFJ—
167.8RMJ—
56.6FM—
112.9FC—
147.4RBJ—
127.8CC—
126.9RMJ—
119.4RMJ—
169.6RML—
180.2AMH30 0156
