Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 22, 2016, 09:41 AM

  • 05 2167_05 2166_20160122_014010.mp4

Date
01/22/2016
W/O
536456
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00509
PipeID
P07310
Time
1:41 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3122
Sewer Name
05 PRAIRIE AVENUE TRUNK
City
HAWTHORNE, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
WO_536456_TV05190_NOV2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
05 2167
Downstream MH
05 2166
Dir. of Survey
Downstream
Length Surveyed
467.8 ft.
Total Length
467.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
412Q
O&M Rating
186
Overall Index
2
Overall Quick
—
Overall Rating
186
Pipe schematic from manhole 05 2167 to 05 2166
MH: 05 2167MH: 05 2166downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 21670 ft. MWL - Water Level, 45 %of cross sectional area0 ft. MWM - Water Mark, 65 %of cross sectional area2 ft. MGO - General Observation - MAGNESIUM H.O. START7 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start463.3 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish467.8 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK467.8 ft. AMH - Downstream Manhole, Survey Ends - 05 2166467.8 ft. MGO - General Observation - FLOW DIVERTER BLOCKING CONNECTION

Observation photos (5)

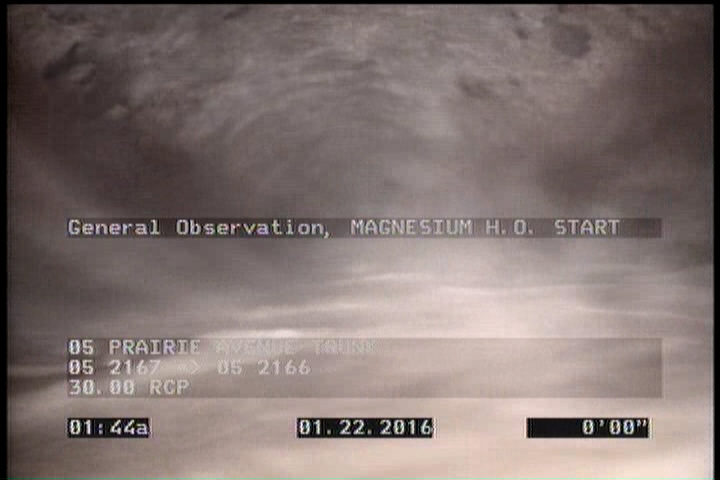

  • General Observation - MAGNESIUM H.O. START

    2 ft. - General Observation - MAGNESIUM H.O. START

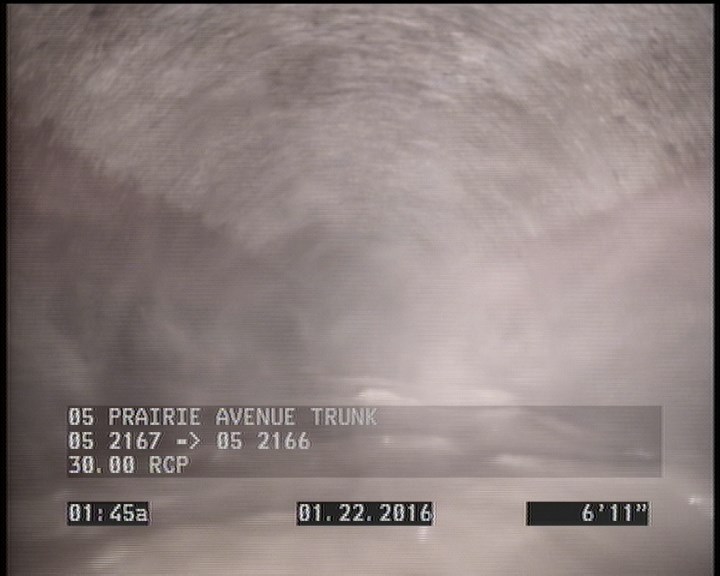

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    7 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

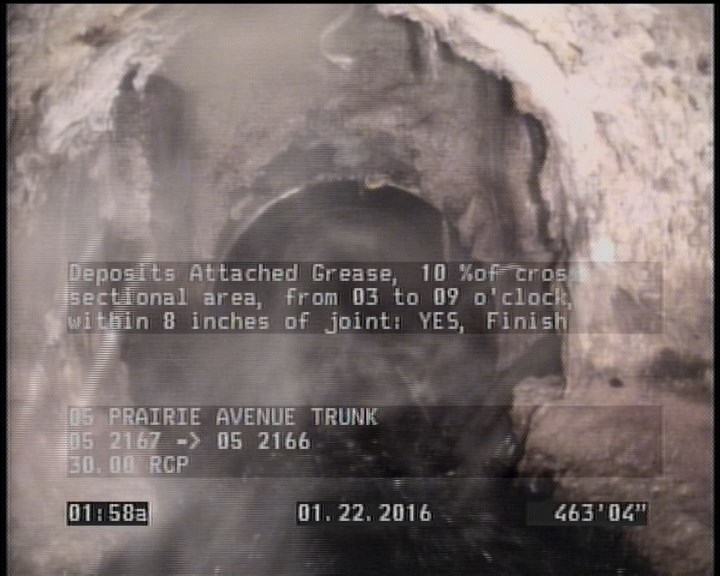

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish

    463.3 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish

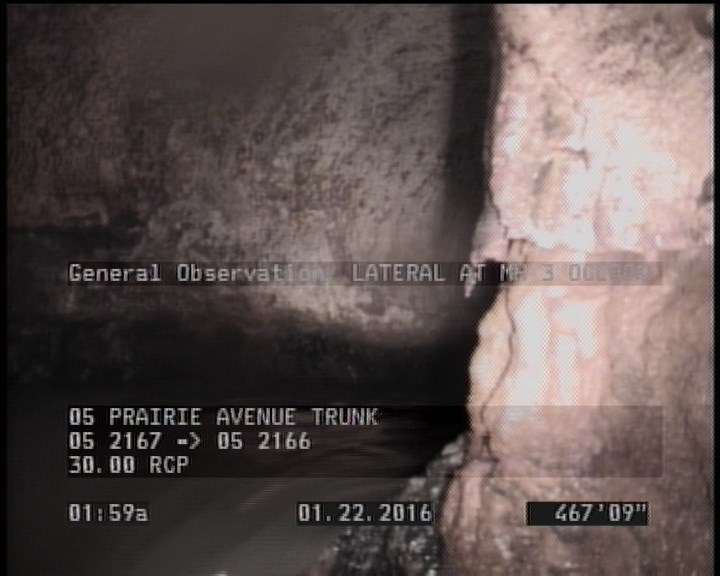

  • General Observation - LATERAL AT MH 3 OCLOCK

    467.8 ft. - General Observation - LATERAL AT MH 3 OCLOCK

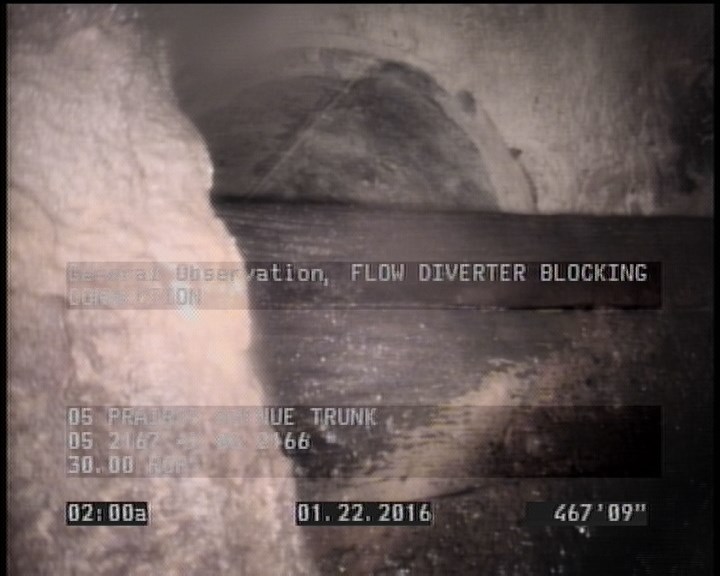

  • General Observation - FLOW DIVERTER BLOCKING CONNECTION

    467.8 ft. - General Observation - FLOW DIVERTER BLOCKING CONNECTION

All inspections of P07310Work order 536456

Observations (9)

DistanceCodeObservation
467.8MGOLATERAL AT MH 3 OCLOCK
467.8AMH05 2166
463.3DAGS—
0AMH05 2167
7DAGS—
2MGOMAGNESIUM H.O. START
467.8MGOFLOW DIVERTER BLOCKING CONNECTION
0MWL—
0MWM—

Properties (7)

additional_info
SC225507
custom_field_two
4
customer
LACSD
datetime
2016-01-22T01:41:00-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
year_laid
19721113
