Wastewater/Activity/PacpInspection/1.0Sep 30, 2016, 07:24 AM

  • 02 0714B_02 0714A_9302016_004734.mp4

Date
09/30/2016
W/O
0591680
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00294
PipeID
PO3265
Time
12:24 AM
Certificate
1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0299
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
29
Purpose
Routine Assessment
Project
20160930MDM_OLD_RIVER_SCHOOL_ROAD_TRUNK_SECTS_1_2
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
02 0714B
Downstream MH
02 0714A
Dir. of Survey
Downstream
Length Surveyed
3 ft.
Total Length
3 ft.
Structural Index
5
Structural Quick
5141
Structural Rating
9
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
5
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 02 0714B to 02 0714A
MH: 02 0714BMH: 02 0714Adownstream0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:45AM0 ft. MWM - Water Mark, 60 %of cross sectional area1 ft. MGO - General Observation - STOPLOG IN PLACE NO FLOW2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG2 ft. DSZ - Deposits Settled Other, 60 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO - SLUDGE2.5 ft. SMW - Surface Missing Wall, from 11 to 12 o'clock, within 8 inches of joint: NO - 2" X2" SOIL VISIBLE3 ft. MSA - Survey Abandoned - DOWNLEG UPSTREAM SIPHON NORTH

Observation photos (5)

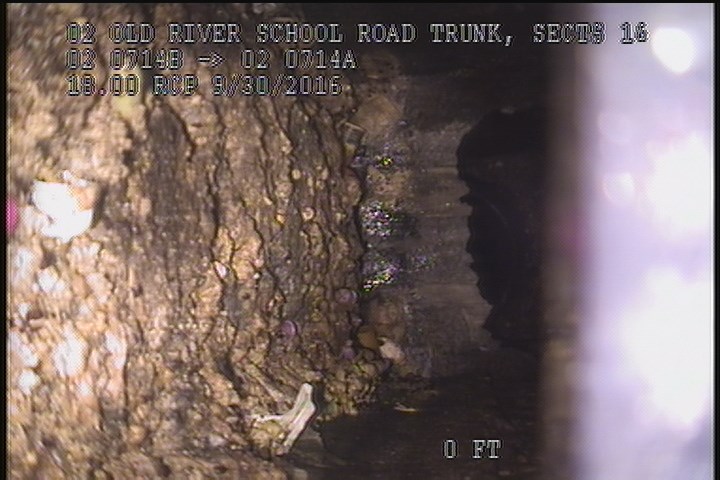

  • General Observation - STOPLOG IN PLACE NO FLOW

    1 ft. - General Observation - STOPLOG IN PLACE NO FLOW

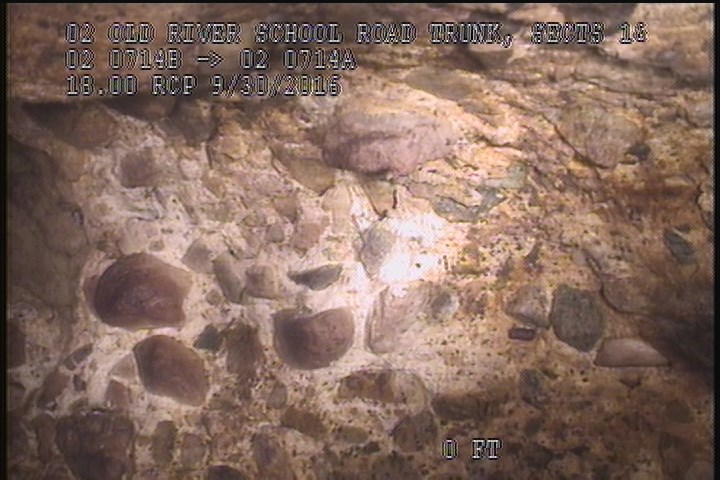

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

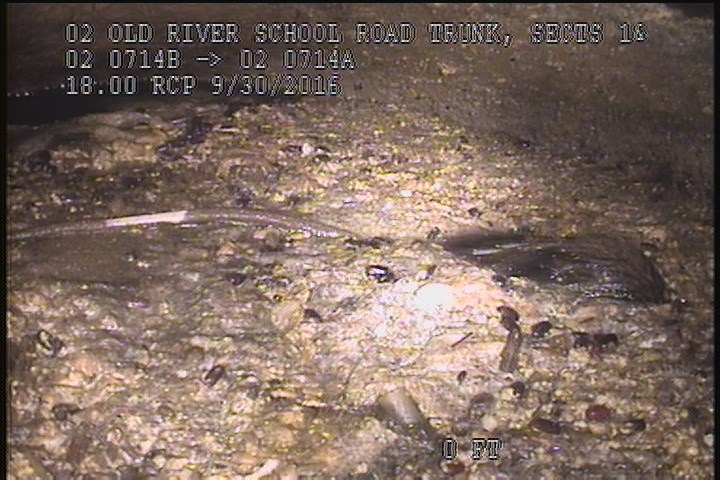

  • Deposits Settled Other, 60 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO - SLUDGE

    2 ft. - Deposits Settled Other, 60 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO - SLUDGE

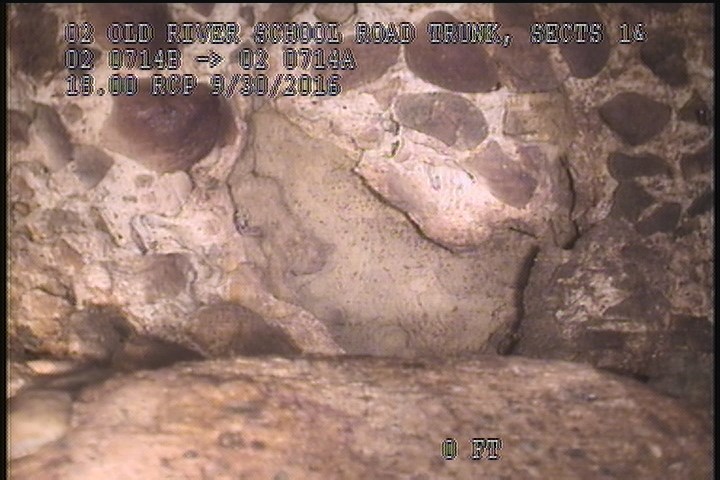

  • Surface Missing Wall, from 11 to 12 o'clock, within 8 inches of joint: NO - 2" X2" SOIL VISIBLE

    2.5 ft. - Surface Missing Wall, from 11 to 12 o'clock, within 8 inches of joint: NO - 2" X2" SOIL VISIBLE

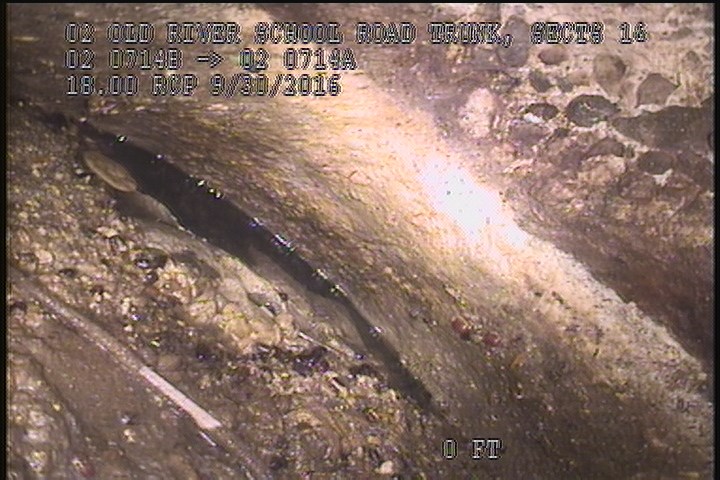

  • Survey Abandoned - DOWNLEG UPSTREAM SIPHON NORTH

    3 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON NORTH

All inspections of PO3265Work order 0591680

Observations (8)

DistanceCodeObservation
2SAMSEVERE AGG
2DSZSLUDGE
2.5SMW2" X2" SOIL VISIBLE
0MWL—
0AMH12:45AM
0MWM—
3MSADOWNLEG UPSTREAM SIPHON NORTH
1MGOSTOPLOG IN PLACE NO FLOW

Properties (7)

additional_info
DOWNLEG UPSTREAM SIPHON NORTH
custom_field_three
MISSING WALL SOIL VISIBLE
custom_field_two
1
customer
LACSD
datetime
2016-09-30T00:24:03-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
