Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 3, 2016, 10:50 AM

  • 08 0304_08 0303_1032016_043056.mp4

Date
10/03/2016
W/O
0591702
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00013
PipeID
P00350
Time
3:50 AM
Certificate
101406022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0305
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Capital Improvement Program Assesment
Project
20160930MDM_KEYSTONE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
08 0304
Downstream MH
08 0303
Dir. of Survey
Downstream
Length Surveyed
326 ft.
Total Length
326 ft.
Structural Index
2
Structural Quick
3E2K
Structural Rating
201
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
201
Pipe schematic from manhole 08 0304 to 08 0303
MH: 08 0304MH: 08 0303downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:30AM2.5 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open12.3 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H17.4 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H19.1 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, - H19.1 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H24.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H24.3 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H29.2 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H29.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H32 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H33.3 ft. CC - Crack Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES38.3 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H40 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H44.7 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H46.3 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H51.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open54.5 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES - H54.5 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES - H59.7 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H59.8 ft. MGO - General Observation - 15" VCP61 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H63.4 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H67.9 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H69.2 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES74.5 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H76.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H81.2 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT90.6 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - S96.2 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H98.1 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - H103.5 ft. TFB - Tap Factory Made Abandoned, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open105.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, 6ft - Open112.6 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H126.2 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H126.3 ft. FS - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT126.3 ft. FS - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT135.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - S141.2 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H147.1 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H148.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H151.9 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H156.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open163.7 ft. FS - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Finish - S163.7 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - S165.8 ft. FS - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Finish - S169.8 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - S169.8 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H169.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H189.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H189.7 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H189.7 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - S189.7 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - S189.9 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H198.2 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - S204.8 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - S204.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open205.8 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H205.8 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H211.1 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - S211.1 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H212 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H214.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H220 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H220 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H220.8 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H220.8 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H232.5 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - S234.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - H236.1 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H240.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H240.9 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - S247.5 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - S247.5 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - S254.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped254.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - S254.8 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H268 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H273.8 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H273.8 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H282.9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - S285.9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - S285.9 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H289.9 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - S289.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB290.1 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H294.5 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H296.6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - S305.5 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - S309.7 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H311 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H316.3 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H316.3 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H316.4 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H316.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped324.1 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - S324.1 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - S326 ft. AMH - Downstream Manhole, Survey Ends - 5:50AM

Observation photos (3)

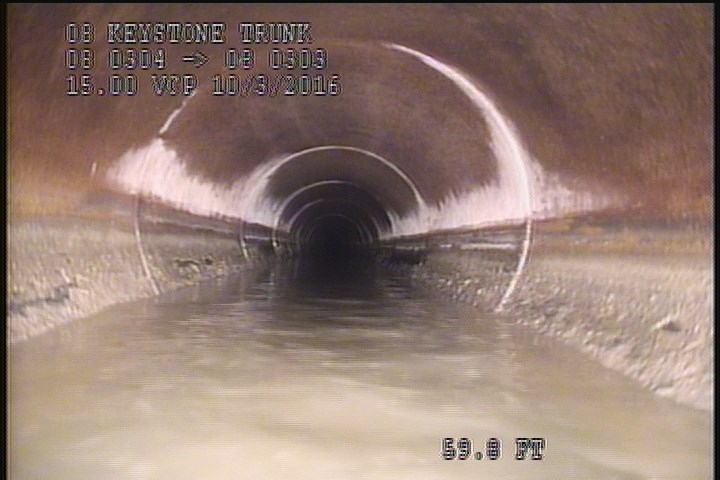

  • General Observation - 15" VCP

    59.8 ft. - General Observation - 15" VCP

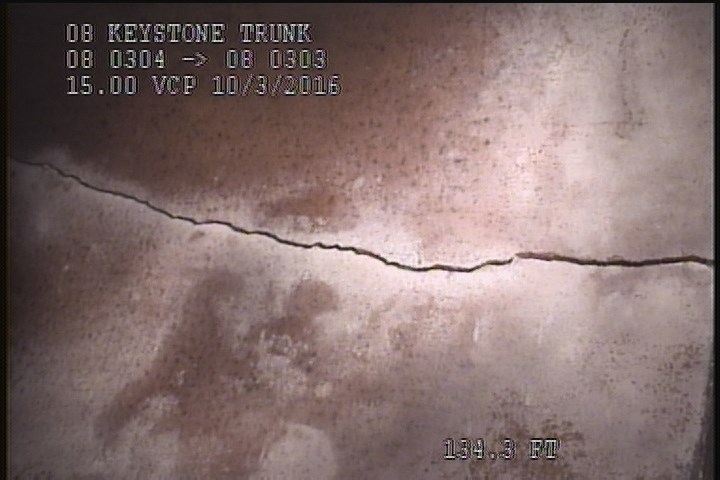

  • Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    126.3 ft. - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT

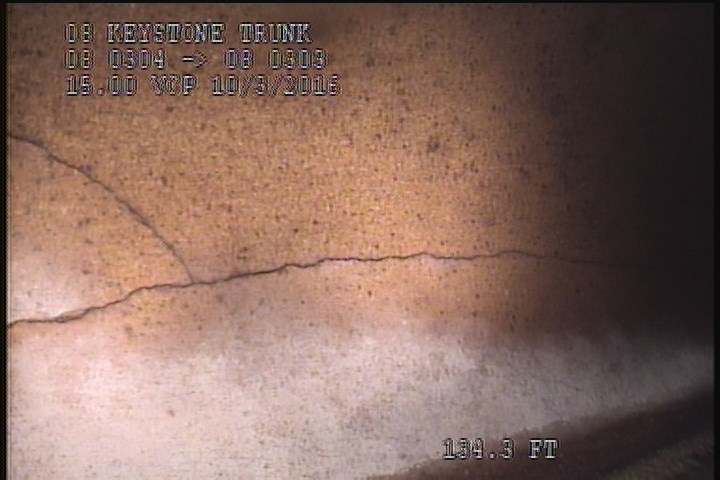

  • Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    126.3 ft. - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT

All inspections of P00350Work order 0591702

Observations (103)

DistanceCodeObservation
204.9TFOpen
254.1TFCCapped
51.9TFOpen
96.2FCH
285.9FCS
32FCH
220.8FCH
205.8FCH
81.2FCSLIGHT
148.7FLH
126.3FSSLIGHT
0MWL—
189.9FCH
232.5FCS
169.8FLS
105.7FLOpen
254.8FCH
74.5FCH
17.4FCH
0MGOConn. @ Mh, 9 O' Clock. Active
311FCH
59.8MGO15" VCP
29.2FCH
289.9FCS
282.9FCS
165.8FSS
63.4FCH
290.1FCH
212FLH
254.1FLS
2.5FCHAIRLINE
214.9FLH
234.2FCH
296.6FCS
316.4FCH
189.7FLH
240.9FLH
204.8FCS
273.8FCH
211.1FCS
44.7FCH
54.5FLH
141.2FCH
220FCH
240.9FCS
103.5TFBOpen
326AMH5:50AM
163.7FSS
46.3FLH
24.1FLH
69.2FC—
98.1FCH
76.6FLH
112.6FCH
198.2FCS
54.5FLH
67.9FCH
309.7FCH
147.1FLH
33.3CC—
220FCH
324.1FCS
294.5FCH
169.8FCH
135.9FLS
220.8FCH
4FLH
189.7FCH
316.3FCH
247.5FCS
285.9FCH
156.2TFOpen
40FLH
189.7FLS
19.1FLH
0MWM—
19.1FCH
90.6FCS
24.3FCH
0AMH4:30AM
59.7FCH
316.3FCH
289.9TFCSTUB
8TFOpen
151.9FCH
126.3FSSLIGHT
205.8FLH
29.2FLH
273.8FCH
189.7FLS
211.1FCH
12.3FLH
268FCH
163.7FLS
169.8FLH
247.5FCS
236.1FCH
324.1FCS
126.2FLH
316.4TFCCapped
61FCH
38.3FCH
305.5FCS

Properties (6)

custom_field_three
SLIGHT SPIRAL FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-10-03T03:50:57-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
