Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 29, 2016, 03:48 PM

  • 29 0114_29 0113_9292016_125520.mp4

Date
09/29/2016
W/O
0586011
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00273
PipeID
P23901
Time
8:48 AM
Certificate
U-115-06022628
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7246
Sewer Name
29 33RD STREET SEWER
City
SIGNAL HILL
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Capital Improvement Program Assesment
Project
20160929MI_33_RD_STREET_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0113
Downstream MH
29 0114
Dir. of Survey
Upstream
Length Surveyed
225 ft.
Total Length
225 ft.
Structural Index
3
Structural Quick
5232
Structural Rating
20
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
21
Pipe schematic from manhole 29 0113 to 29 0114
MH: 29 0113MH: 29 0114upstream0 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"0 ft. AMH - Upstream Manhole, Survey Ends - LAMP HOLE, OFFSET JOINT1 ft. JOL - Joint Offset Large5 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"13 ft. BSV - Broken Soil Visible, from 02 to 04 o'clock, within 8 inches of joint: NO15 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"63 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"64 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"90 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"117 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"130 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR168 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"170 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"215 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - Open215 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start215 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES217 ft. BSV - Broken Soil Visible, from 01 to 05 o'clock, within 8 inches of joint: YES218 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"223 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES225 ft. AMH - Downstream Manhole, Survey Begins - 09:00AM225 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"225 ft. MWL - Water Level, 5 %of cross sectional area225 ft. MWM - Water Mark, 10 %of cross sectional area

Observation photos (5)

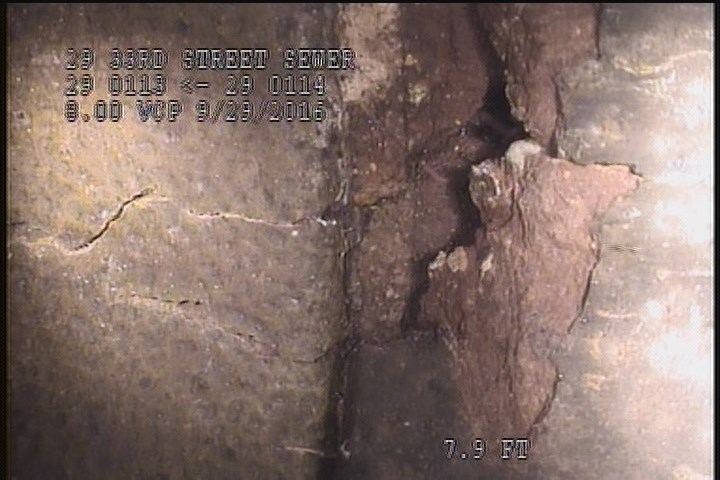

  • Broken Soil Visible, from 01 to 05 o'clock, within 8 inches of joint: YES

    8 ft. - Broken Soil Visible, from 01 to 05 o'clock, within 8 inches of joint: YES

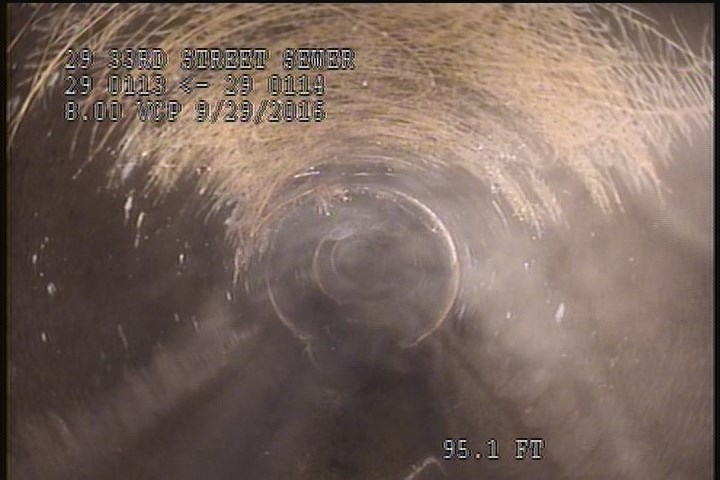

  • Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR

    95 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR

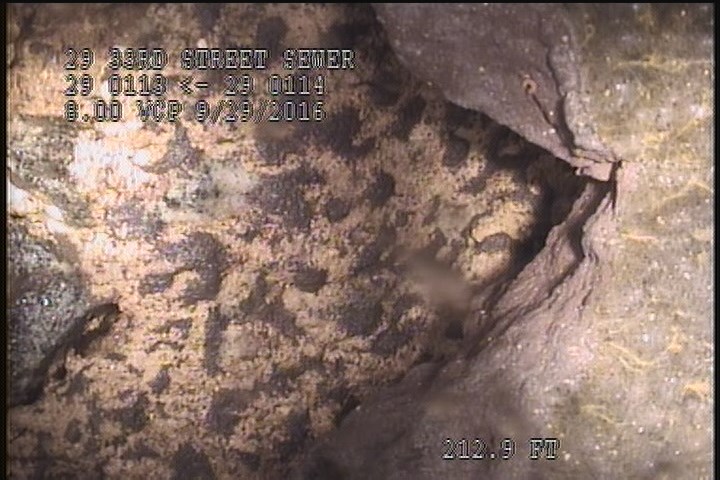

  • Broken Soil Visible, from 02 to 04 o'clock, within 8 inches of joint: NO

    212 ft. - Broken Soil Visible, from 02 to 04 o'clock, within 8 inches of joint: NO

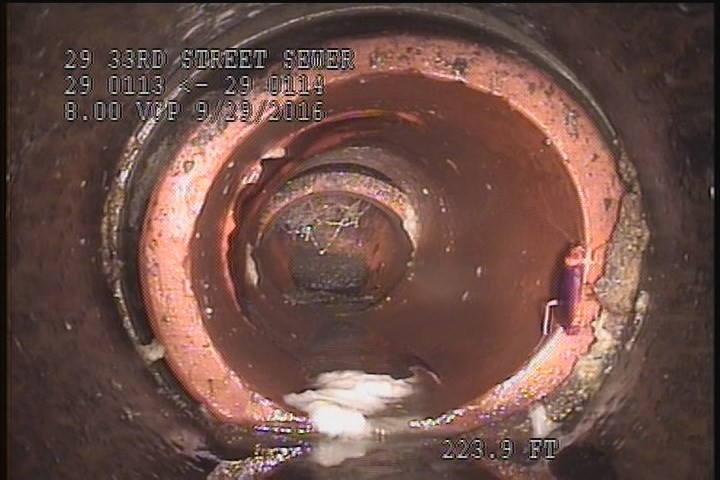

  • Joint Offset Large

    224 ft. - Joint Offset Large

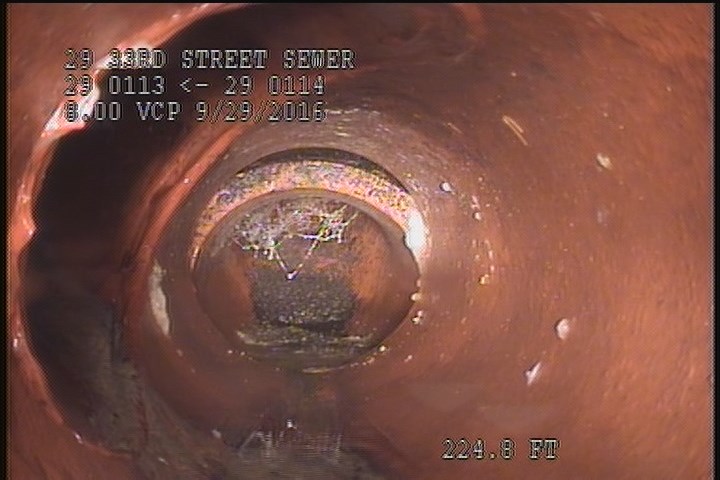

  • Upstream Manhole, Survey Ends - LAMP HOLE, OFFSET JOINT

    225 ft. - Upstream Manhole, Survey Ends - LAMP HOLE, OFFSET JOINT

All inspections of P23901Work order 0586011

Observations (24)

DistanceCodeObservation
2CM—
0AMH09:00AM
135TFA—
225CM—
10TFOpen
225TFA—
10CM—
0TFC—
7TFA—
161TF—
225AMHLAMP HOLE, OFFSET JOINT
0MWL—
55TFA—
108TFA—
210TFC—
95RFJ—
57TFA—
0MWM—
10CL—
212BSV—
8BSV—
162TFC—
224JOL—
220TFC—

Properties (4)

customer
LACSD
datetime
2016-09-29T08:48:47-07:00
documentation
IGNACIO, BRAR, FRANKLIN, SHADLER
is_lateral_inspection
false
