Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 29, 2016, 11:45 AM

  • 08 0317_08 0316_9292016_044707.mp4

Date
09/29/2016
W/O
0591702
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00013
PipeID
P00363
Time
4:45 AM
Certificate
U-1014-O602543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0298
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Capital Improvement Program Assesment
Project
20160929MDM_KEYSTONE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
08 0316
Downstream MH
08 0315
Dir. of Survey
Downstream
Length Surveyed
250.7 ft.
Total Length
250.7 ft.
Structural Index
3
Structural Quick
3D2C
Structural Rating
105
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
105
Pipe schematic from manhole 08 0316 to 08 0315
MH: 08 0316MH: 08 0315downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:40AM0 ft. MWL - Water Level, 10 %of cross sectional area5.5 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT11.4 ft. MGO - General Observation - 15" VCP13.2 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - HAIRLINE21.8 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H27.8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H49.6 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - S53.1 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active61.9 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H65.2 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Capped68.3 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H73.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H98.4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - H98.5 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - H101.2 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - S104.4 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT104.4 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish - HAIRLINE104.4 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H106.8 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H106.8 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish - H106.8 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - S111.2 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H111.2 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Finish - SLIGHT111.5 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish - S113 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - H118.6 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish - H120.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active125.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - H125.1 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - H130 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - H131.2 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish - H131.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - S131.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish - H131.2 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - S146 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish - S146 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish - S149.3 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active158 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H158.3 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H158.3 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, - H161.8 ft. FS - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Start - H161.8 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Start - H182.4 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H184.5 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H188.5 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H195 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H196.9 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H203.3 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H214.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped214.8 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES, Finish214.8 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H214.8 ft. FS - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES, Finish - H214.8 ft. FS - Fracture Spiral, from 08 to 10 o'clock, within 8 inches of joint: YES, Finish - H220 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H221.1 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H226 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H226.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - H232.2 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H233.4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - H245.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H245.6 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish - H245.6 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish - H250.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active250.7 ft. AMH - Downstream Manhole, Survey Ends - 5:35AM

Observation photos (5)

  • General Observation - 15" VCP

    11.4 ft. - General Observation - 15" VCP

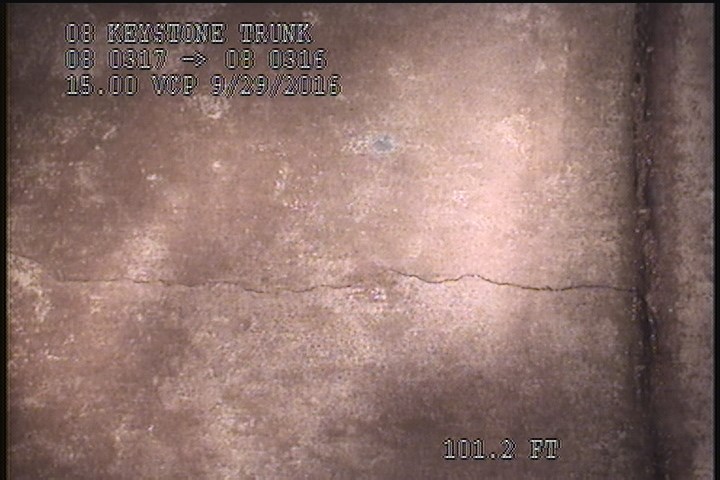

  • Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - H

    98.5 ft. - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - H

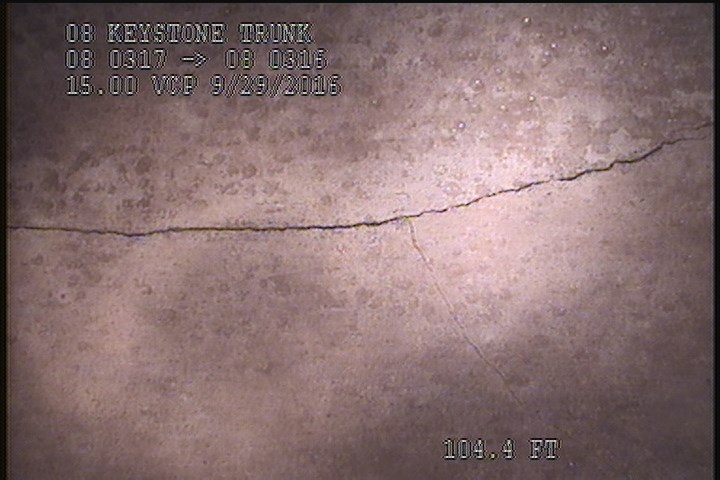

  • Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    104.4 ft. - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT

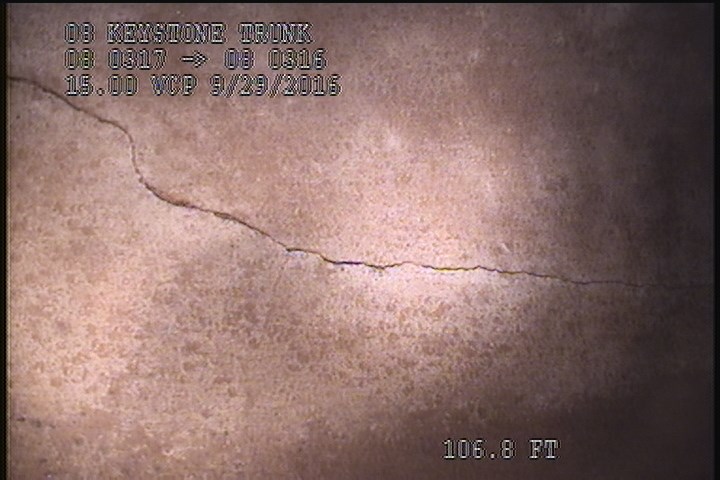

  • Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - S

    106.8 ft. - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - S

  • Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - S

    131.2 ft. - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - S

All inspections of P00363Work order 0591702

Observations (66)

DistanceCodeObservation
203.3FCH
214.8TFCCapped
184.5FCH
27.8FLH
53.1TBActive
21.8FLH
111.5FLS
245.6FCH
0MWM—
131.2FLH
104.4FLSLIGHT
73.7FLH
233.4FLH
158.3FLH
214.8FC—
111.2FCH
214.8FCH
98.4FLH
49.6FCS
98.5FLH
188.5FLH
131.2FLS
232.2FCH
106.8FCH
158.3FLH
214.8FSH
245.6FLH
245.6FLH
5.5FCSLIGHT
250.7AMH5:35AM
161.8FSH
0AMH4:40AM
120.3TFActive
158FCH
61.9FCH
13.2FCHAIRLINE
130FLH
125.1FLH
161.8FSH
146FLS
226.1FLH
106.8FLH
104.4FLHAIRLINE
196.9FCH
214.8FSH
149.3TBActive
118.6FLH
131.2FLH
125.1FLH
106.8FLS
146FLS
11.4MGO15" VCP
221.1FCH
226FLH
111.2FLSLIGHT
131.2FLS
220FLH
195FCH
104.4FCH
250.2MGOConn. @ Mh, 9 O' Clock. Active
101.2FCS
68.3FLH
113FLH
0MWL—
65.2TFCCapped
182.4FCH

Properties (6)

custom_field_three
LONG SLIGHT FRACTURES JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-09-29T04:45:07-07:00
documentation
MARTIN,MANANES,OLIVER 111
is_lateral_inspection
false
