Wastewater/Activity/PacpInspection/1.0Sep 27, 2016, 08:30 AM
30 0265_30 0264_9272016_015108.mp4
- Date
- 09/27/2016
- W/O
- 0598388
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00876
- PipeID
- P17961
- Time
- 1:30 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0294
- Sewer Name
- 30 PLAZA TRUNK
- City
- PALOS VERDES ESTATES
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- 20160923AM_PLAZA_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 30 0264
- Downstream MH
- 30 0265
- Dir. of Survey
- Upstream
- Length Surveyed
- 51.8 ft.
- Total Length
- 51.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 4221
- O&M Rating
- 10
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (3)

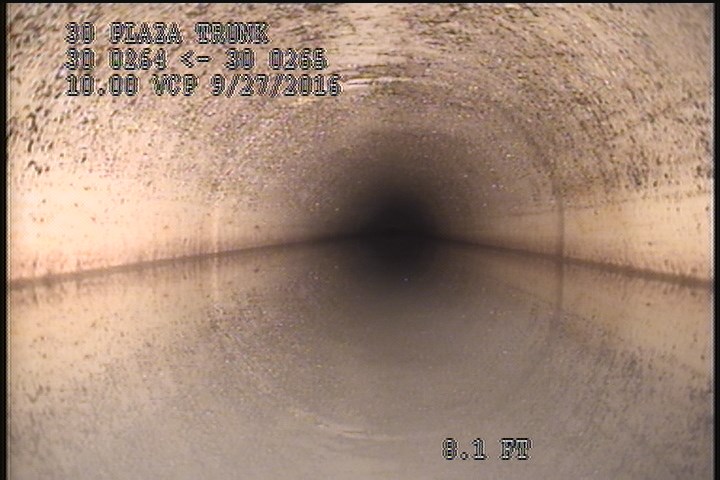

8.1 ft. - General Observation - 10" VCP-PVCP

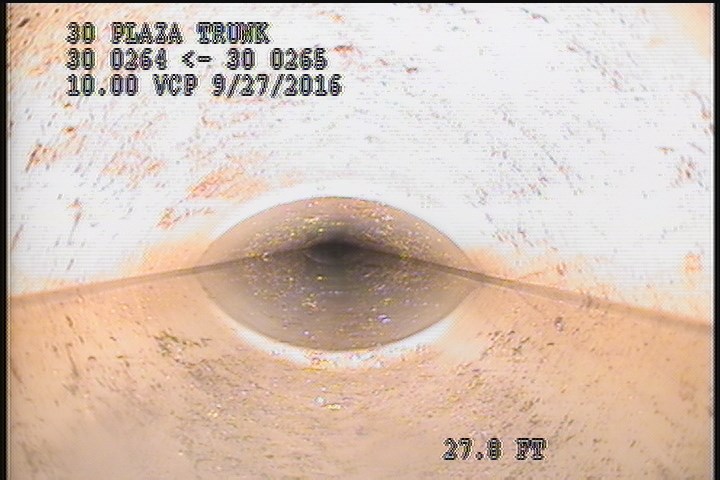

27.8 ft. - Water Level, Sag in pipe, 50 %of cross sectional area, Start

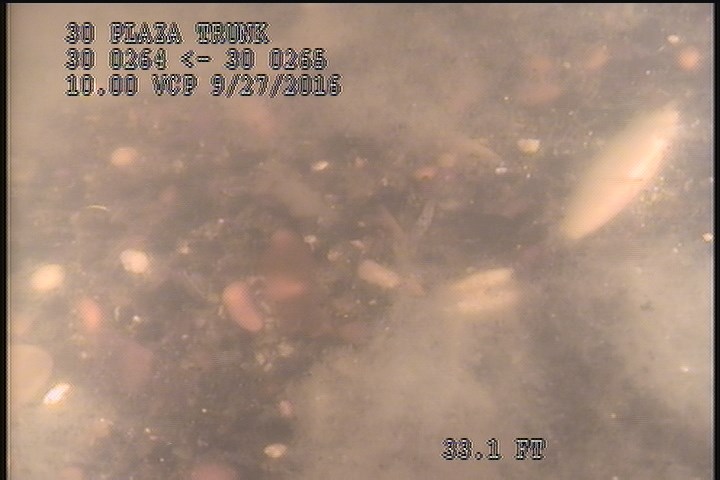

33.1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - SLUDGE GRITE
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 33.1 | DSZ | SLUDGE GRITE |
| 0 | MWM | — |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 51.8 | MSA | 25% SLUDGE GRITE |
| 51.4 | DSZ | SLUDGE GRITE |
| 51.4 | DSZ | SLUDGE GRITE |
| 51.4 | MWLS | — |
| 33.1 | MWL | — |
| 0 | MWL | — |
| 8.1 | MGO | 10" VCP-PVCP |
| 0 | AMH | 1:30AM |
| 33.1 | MCU | — |
| 27.8 | MWLS | — |
Properties (5)
- customer
- LACSD
- datetime
- 2016-09-27T01:30:00-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
- lining
- PVCP
