Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 21, 2016, 10:37 AM

  • 16 0092_16 0091_9212016_035152.mp4

Date
09/21/2016
W/O
0591714
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00639
PipeID
P13106
Time
3:37 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0289
Sewer Name
16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
14
Purpose
Capital Improvement Program Assesment
Project
20160921MDM_ALLEN_AVENUE_TRUNK_SECTS_1_2_4
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
16 0092
Downstream MH
16 0091
Dir. of Survey
Downstream
Length Surveyed
462.5 ft.
Total Length
462.5 ft.
Structural Index
2
Structural Quick
5241
Structural Rating
92
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
92
Pipe schematic from manhole 16 0092 to 16 0091
MH: 16 0092MH: 16 0091downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. STUB0 ft. AMH - Upstream Manhole, Survey Begins - 3:50AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 5 O' OPEN0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MMC - Material Change, Other (state in comments) - LINER START15.3 ft. MMC - Material Change, Other (state in comments) - LINER FINISH15.3 ft. MGO - General Observation - 12" VCP43.8 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - HAIRLINE59.1 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H69.6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT76.6 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active82.2 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - S90.1 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - S91.7 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open91.7 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H100.2 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - S120.9 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H146.8 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H154.1 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H157.1 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H165 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - S165 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - S178.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open180.8 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - S190.7 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H192.7 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open200.9 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - S203.5 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - S206.2 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - S211.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - S211.1 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - S224 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - S229.2 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H249.9 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - S262.6 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - S275.7 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - S277.9 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - S279.7 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open283.5 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - S291.7 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open301.2 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H344.9 ft. BSV - Broken Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES345 ft. BSV - Broken Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES352.7 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - S378.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - S381 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open393.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open407.2 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - S412 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open415 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - S428.3 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - S430.8 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - H433.4 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - S434.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open435.2 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - S443.9 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H443.9 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H456.8 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - S459.5 ft. FC - Fracture Circumferential, from 10 to 04 o'clock, within 8 inches of joint: YES - S462.5 ft. AMH - Downstream Manhole, Survey Ends - 5:05AM

Observation photos (5)

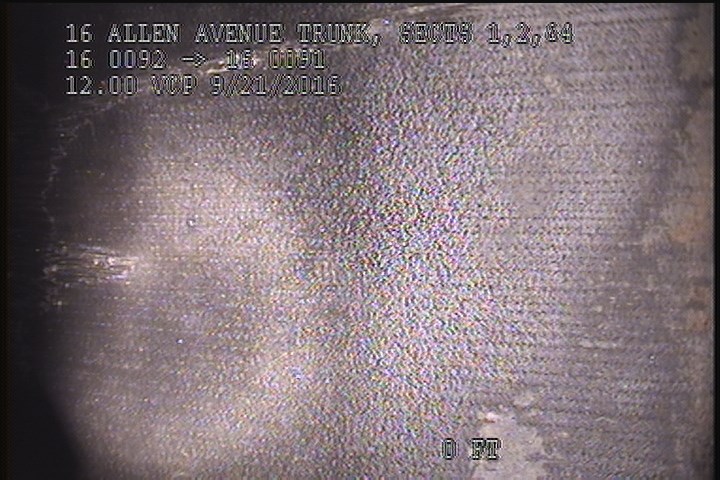

  • Material Change, Other (state in comments) - LINER START

    2 ft. - Material Change, Other (state in comments) - LINER START

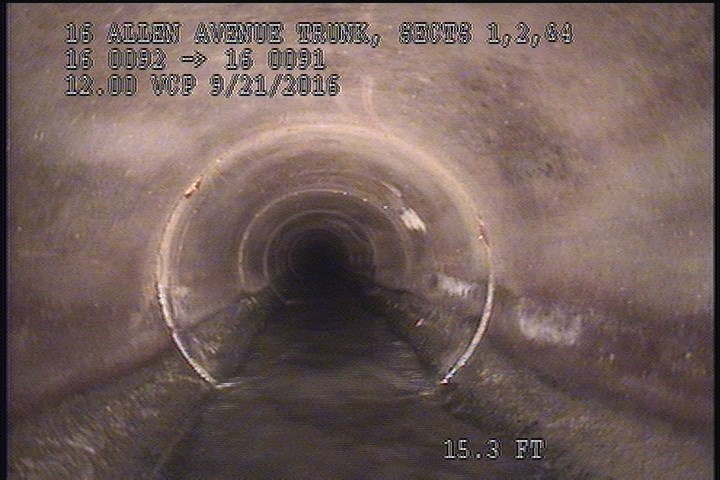

  • General Observation - 12" VCP

    15.3 ft. - General Observation - 12" VCP

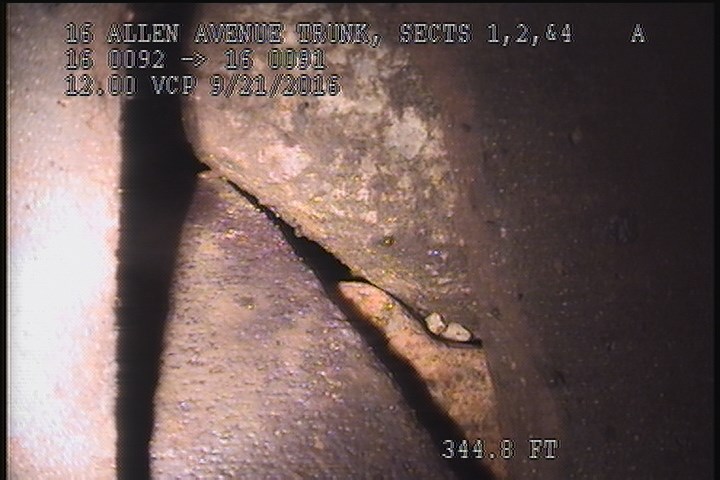

  • Broken Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES

    344.9 ft. - Broken Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES

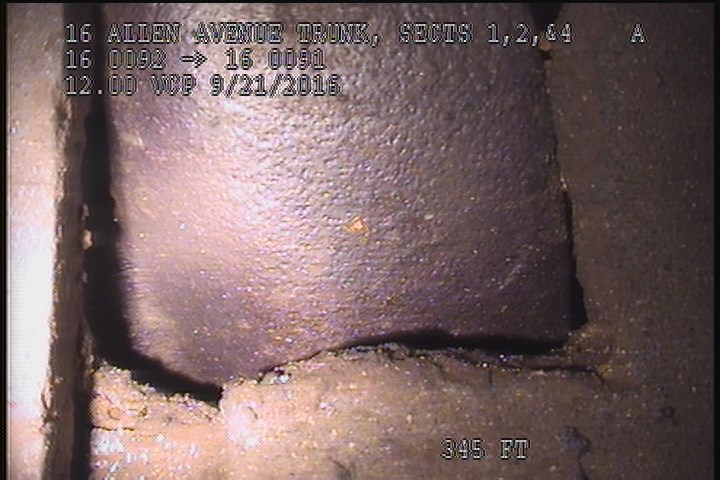

  • Broken Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES

    345 ft. - Broken Soil Visible, from 11 to 01 o'clock, within 8 inches of joint: YES

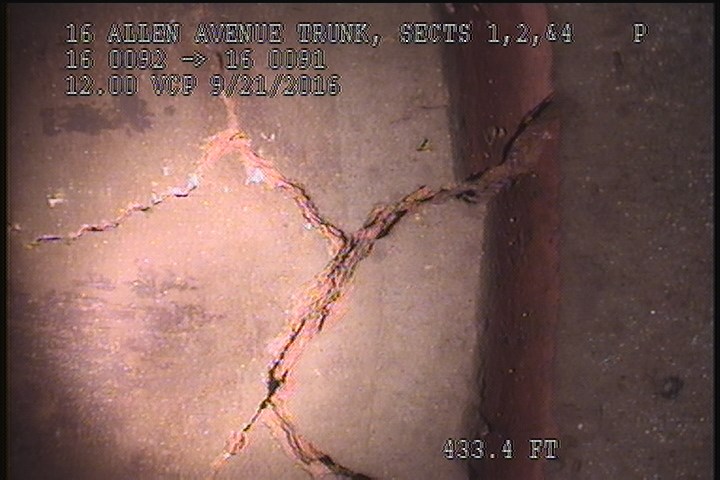

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - S

    433.4 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - S

All inspections of P13106Work order 0591714

Observations (62)

DistanceCodeObservation
211.1FCS
344.9BSV—
430.8FCH
0MGOConn. @ Mh, 9 O' Clock. STUB
76.6TBActive
165FCS
180.8FCS
0AMH3:50AM
190.7FCH
433.4FMS
0MGOConn. @ Mh, 3 O' Clock. Active
277.9FCS
434.5TBOpen
100.2FCS
279.7TBOpen
428.3FCS
301.2FCH
435.2FCS
283.5FCS
43.8FCHAIRLINE
146.8FCH
456.8FCS
443.9FCH
192.7TBOpen
0MWM—
59.1FCH
352.7FCS
154.1FCH
378.7FCS
224FCS
178.7TBOpen
415FCS
203.5FCS
0MGOConn. @ Mh, 5 O' OPEN
206.2FCS
90.1FCS
407.2FCS
165FCS
91.7TBOpen
459.5FCS
0MWL—
82.2FCS
412TBOpen
249.9FCS
229.2FCH
291.7TBOpen
393.6TBOpen
15.3MMCLINER FINISH
211.1FCS
381TBOpen
157.1FCH
91.7FCH
120.9FCH
69.6FCSLIGHT
262.6FCS
275.7FCS
462.5AMH5:05AM
2MMCLINER START
443.9FCH
15.3MGO12" VCP
200.9FCS
345BSV—

Properties (6)

custom_field_three
BROKEN PIPE SOIL VISIBLE
custom_field_two
1
customer
LACSD
datetime
2016-09-21T03:37:21-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
